Fuel Injection (Fuel System)
AIR LINE
FU-7
G: AIR ASSIST INJECTOR SOLENOID VALVE
The air assist injector solenoid valve is located in the piping between the throttle body and the in-
jector and secured to the intake manifold.
This solenoid valve is opened or closed by the signals from the ECM, adjusting the flow rate of air
supplied to the injector.

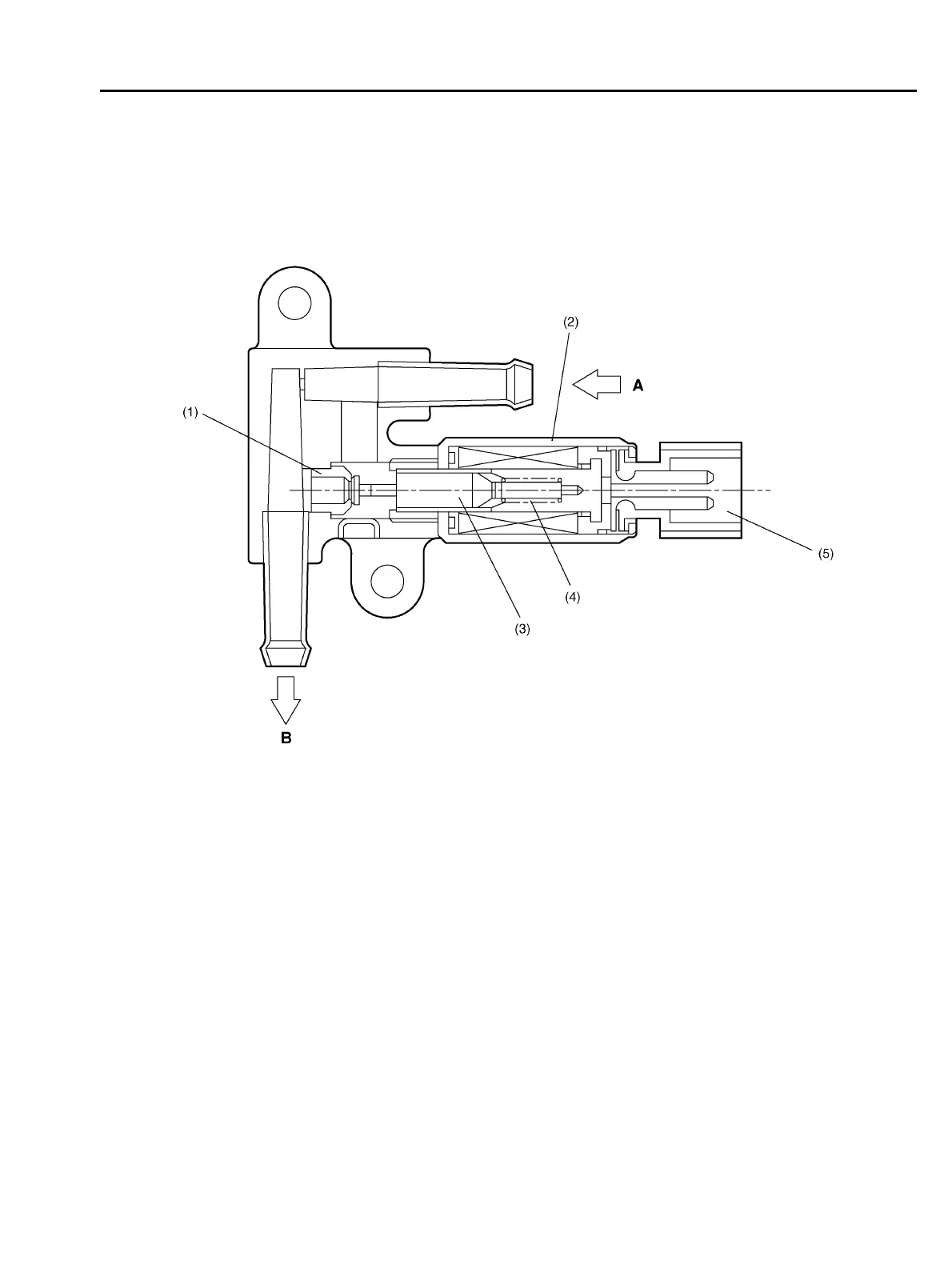

(1) Valve seat A: From idle air control solenoid valve
(2) Solenoid B: To i n j ec tor
(3) Plunger and valve
(4) Spring
(5) Connector
B2H3447B
