Fuel Injection (Fuel System)
FUEL LINE
FU-12

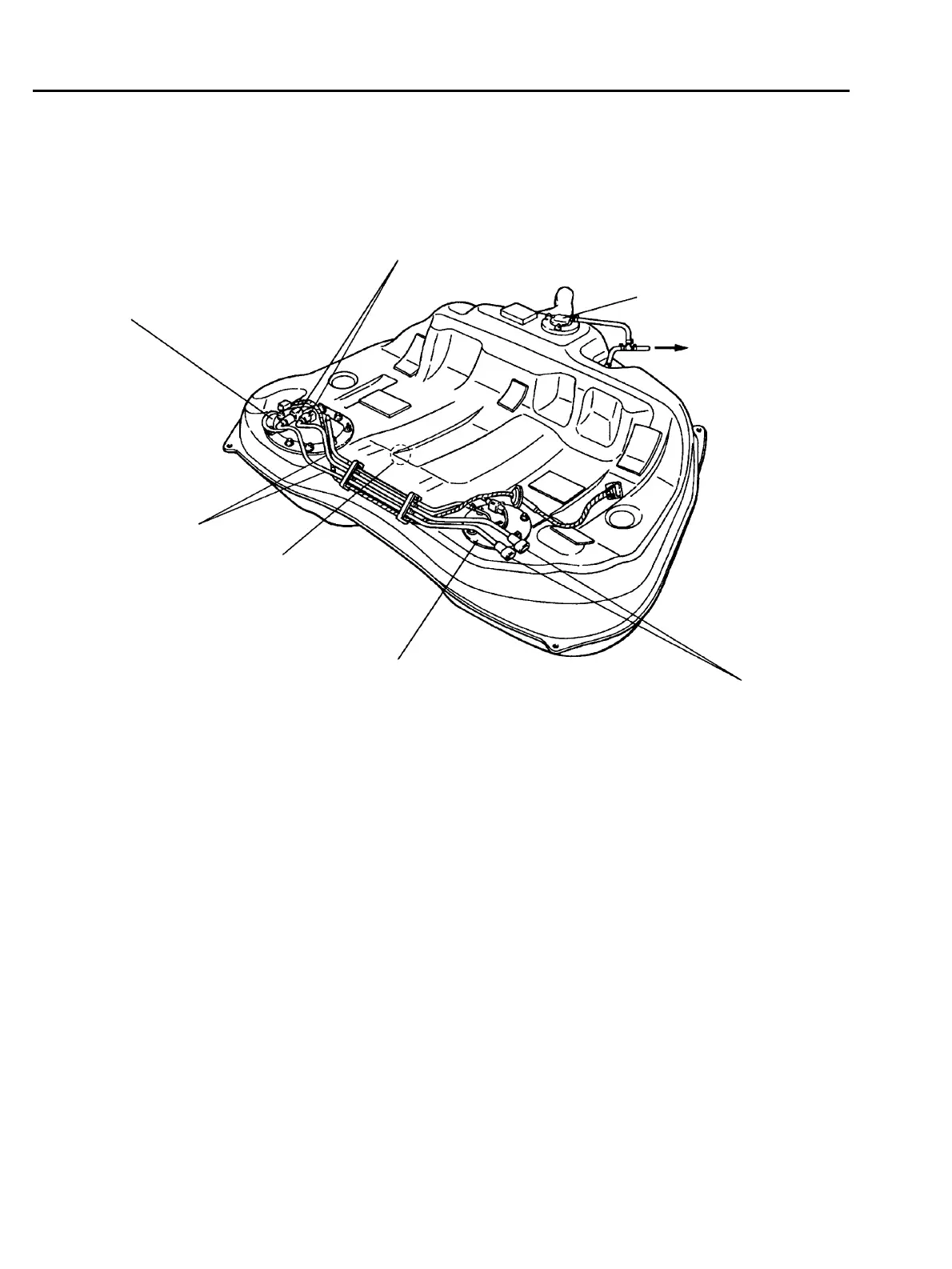

D: FUEL TANK
The fuel tank utilizes a two-compartment design to ensure sufficient capacity without interfering
with the rear differential. It is provided with a suction jet pump (included in the fuel pump and fuel
level sensor assembly) which transfers fuel from one compartment to the other. Each compart-
ment has an individual fuel level sensor.
(1) Fuel pump and fuel level sensor assembly (5) Quick connector
(2) Nylon tube (6) Fuel cut valve (Main compartment)
(3) Fuel cut valve (Sub-compartment)
(4) Fuel level sensor (Sub-compartment) A: To two way valve
(4)
(3)
(2)
(1)
A
(6)
(5)
(5)
B2H2908C
