Manual Transmission and Differential
GENERAL
MT-5

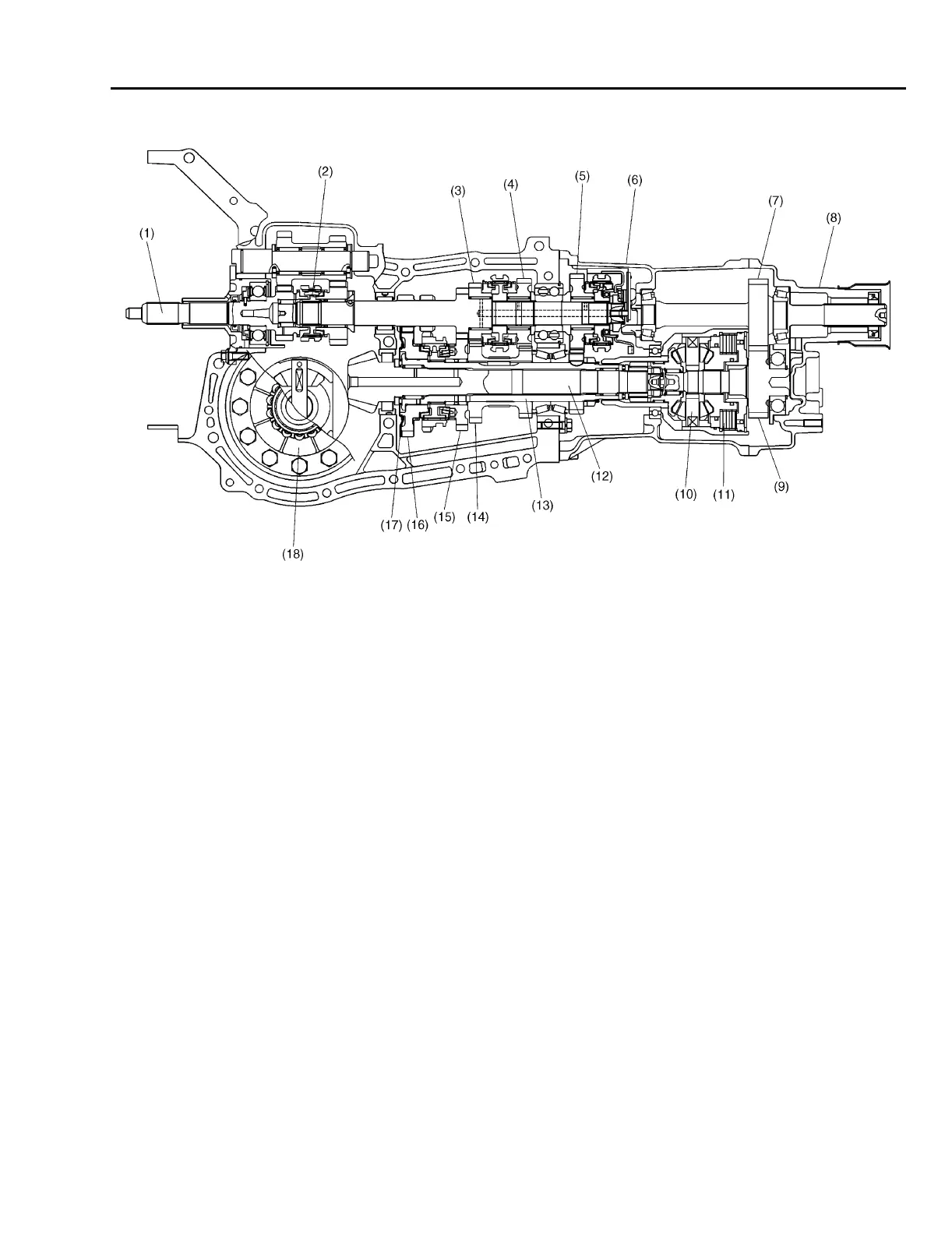

(1) Input shaft (7) Transfer driven gear (13) Driven shaft (countershaft)
(2) Auxiliary transmission gears (8) Extension case (14) 3rd driven gear
(3) 3rd drive gear (9) Transfer drive gear (15) 2nd driven gear
(4) 4th drive gear (10) Center differential assembly (16) 1st driven gear
(5) 5th drive gear (11) Viscous coupling (17) 1st driven sub-gear
(6) Transfer case (12) Drive pinion shaft (18) Front differential assembly
B3H2091A
