Manual Transmission and Differential
REVERSE CHECK MECHANISM
MT-13
4. WHEN A SHIFT TO REVERSE IS MADE AFTER RETURN OF SELECTOR ARM TO NEU-
TRAL
As the ends of the reverse accent shaft and the reverse check cam are on the same plane, the
selector arm now can turn toward the reverse gear selection direction after pushing leftward both
the shaft and cam simultaneously.

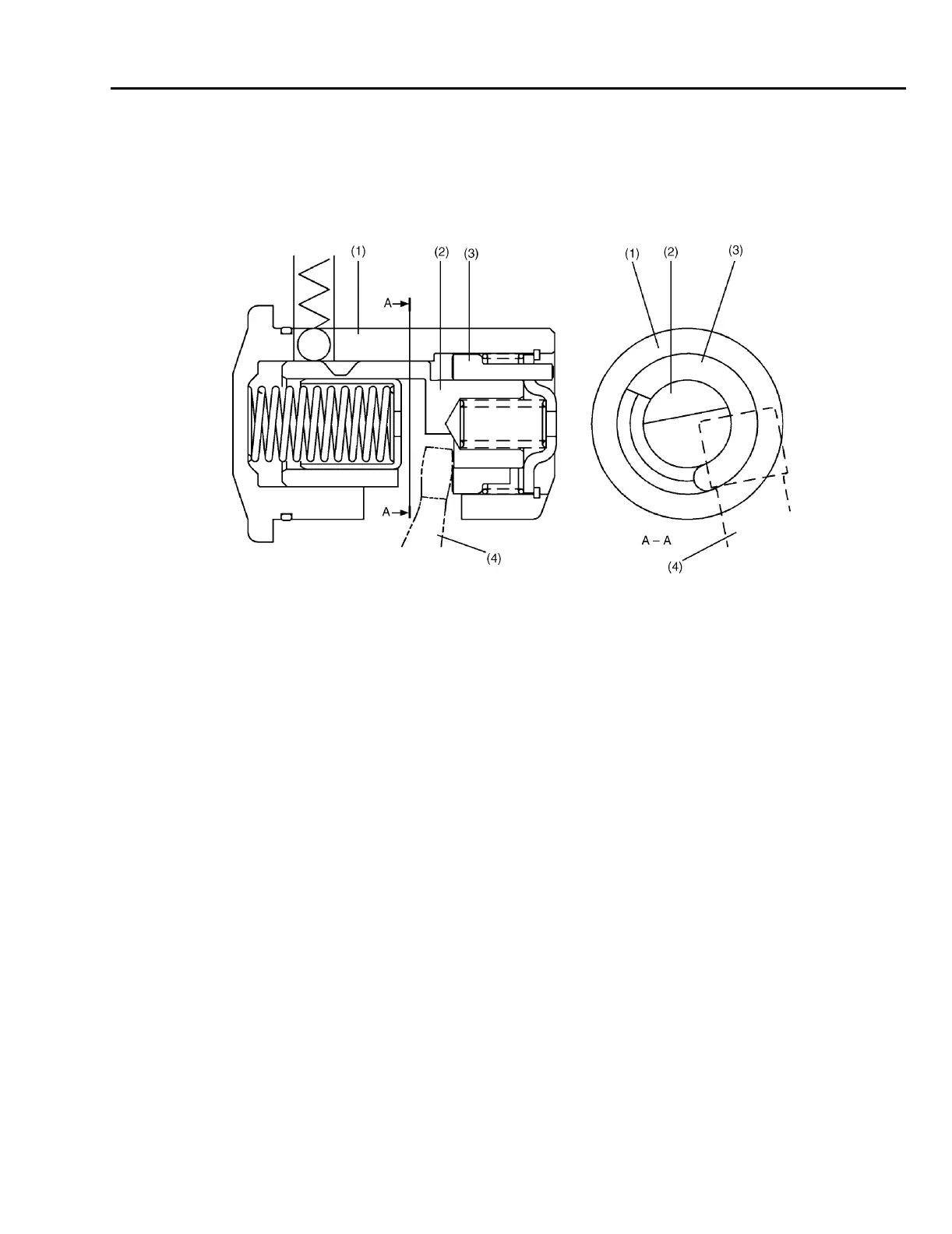

(1) Reverse check sleeve (3) Reverse check cam
(2) Reverse accent shaft (4) Selector arm
B3H1011A
