Fuel Injection (Fuel System)
FUEL LINE
FU-14
E: FUEL PUMP AND FUEL LEVEL SENSOR ASSEMBLY

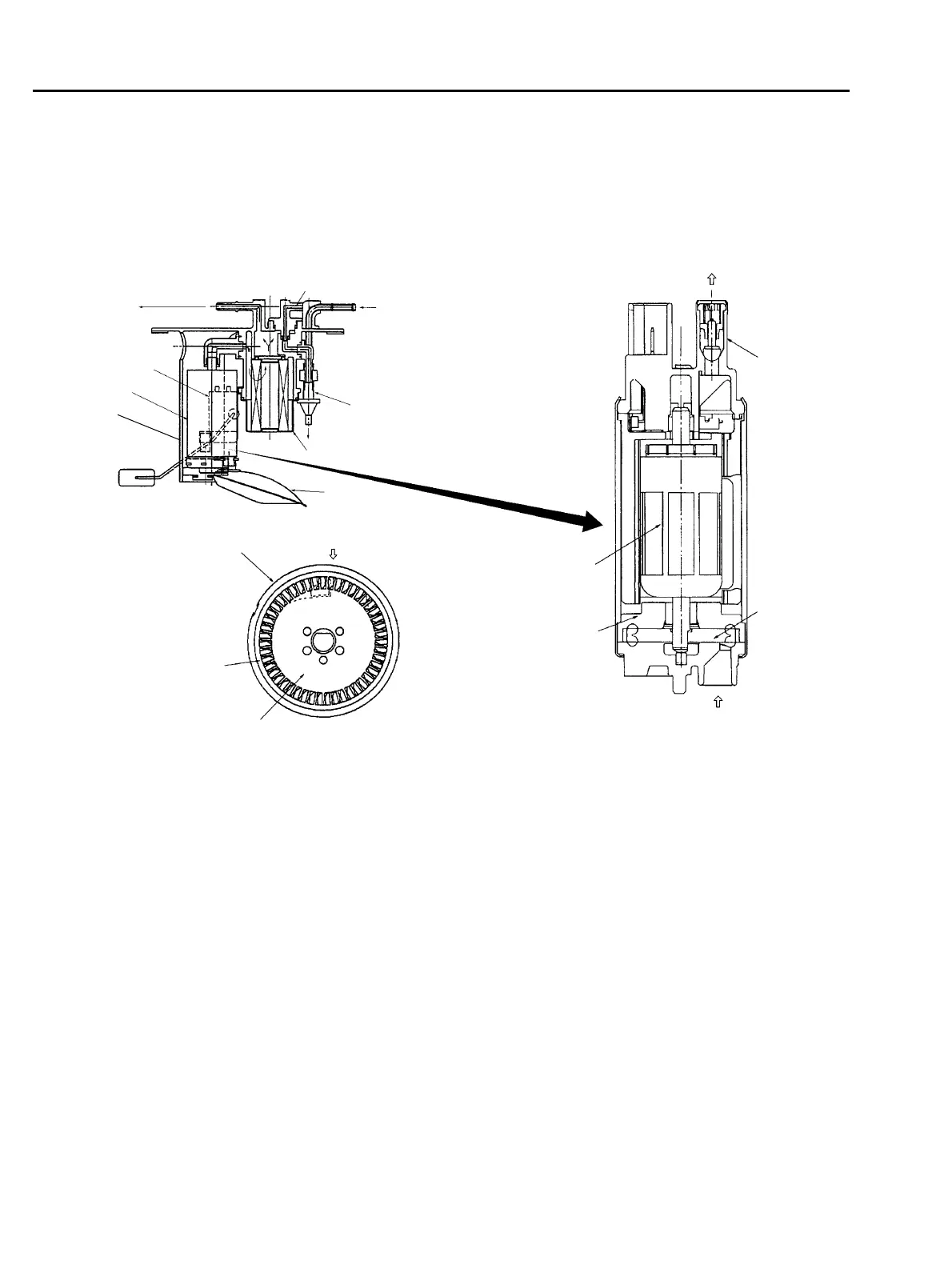

1. FUEL PUMP
The fuel pump consists of a motor, impeller, pump casing, pump cover, check valve and filter. It is
located in the fuel tank and combined with the fuel level sensor into a single unit. The operation of
this impeller type pump is very quiet.
(1) Fuel level sensor (7) Pump casing A: To engine (delivery line)
(2) Fuel pump (8) Fuel passage B: From engine (return line)
(3) Pump cover (9) Impeller C: From sub tank
(4) Jet pump (10) Motor armature D: Suction
(5) Cartridge filter (11) Check valve E: Discharge
(6) Mesh filter
(6)
(3)
(2)
(1)
B
C
D
A
(9)
(9)
(8)
(10)
(11)
E
D
(7)
(7)
(4)
(5)
B2H2909C
