Clutch
HYDRAULIC CLUTCH PEDAL SYSTEM
CL-10
3. Hydraulic Clutch Pedal System
A: CONSTRUCTION
! The hydraulic clutch pedal is connected to the master cylinder via a rod.
! The clutch pedal and brake pedal are mounted on the same bracket (LHD model only).

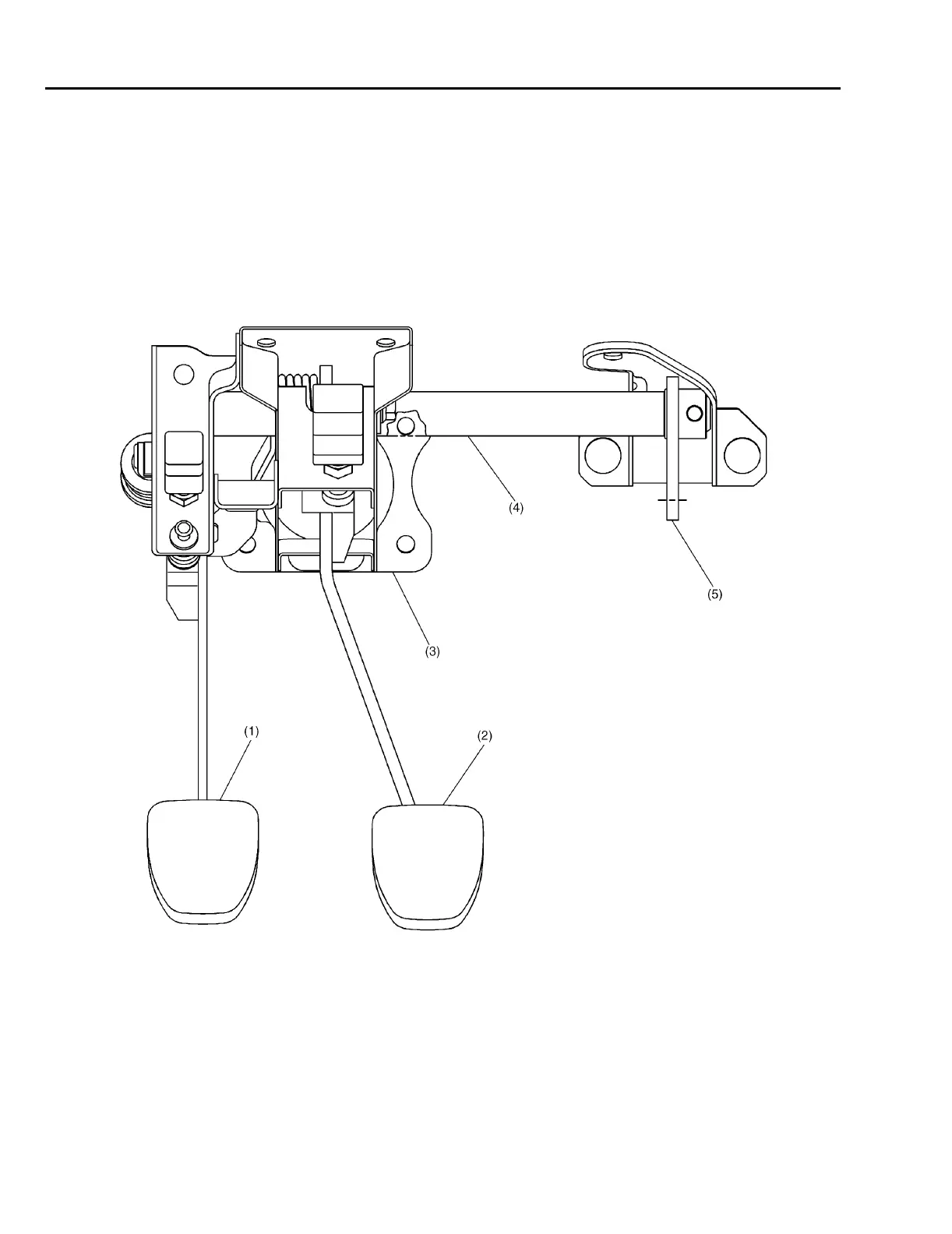

! LHD model
(1) Clutch pedal
(2) Brake pedal
(3) Brake and clutch pedal bracket
(4) Rod
(5) Lever
S4H0316B
