1. Vehicle Dynamics Control (VDC) System
A: OUTLINE
The vehicle dynamics control (VDC) system is a driver assist system which enhances vehicle’s
running stability by utilizing the anti-lock brake system (ABS) and traction control system (TCS)
functions in combination with its own function which
reduces sudden changes in vehicle behavior
that are likely to occur when travelling on a slippery road or quickly avoiding an obstacle on the
road.

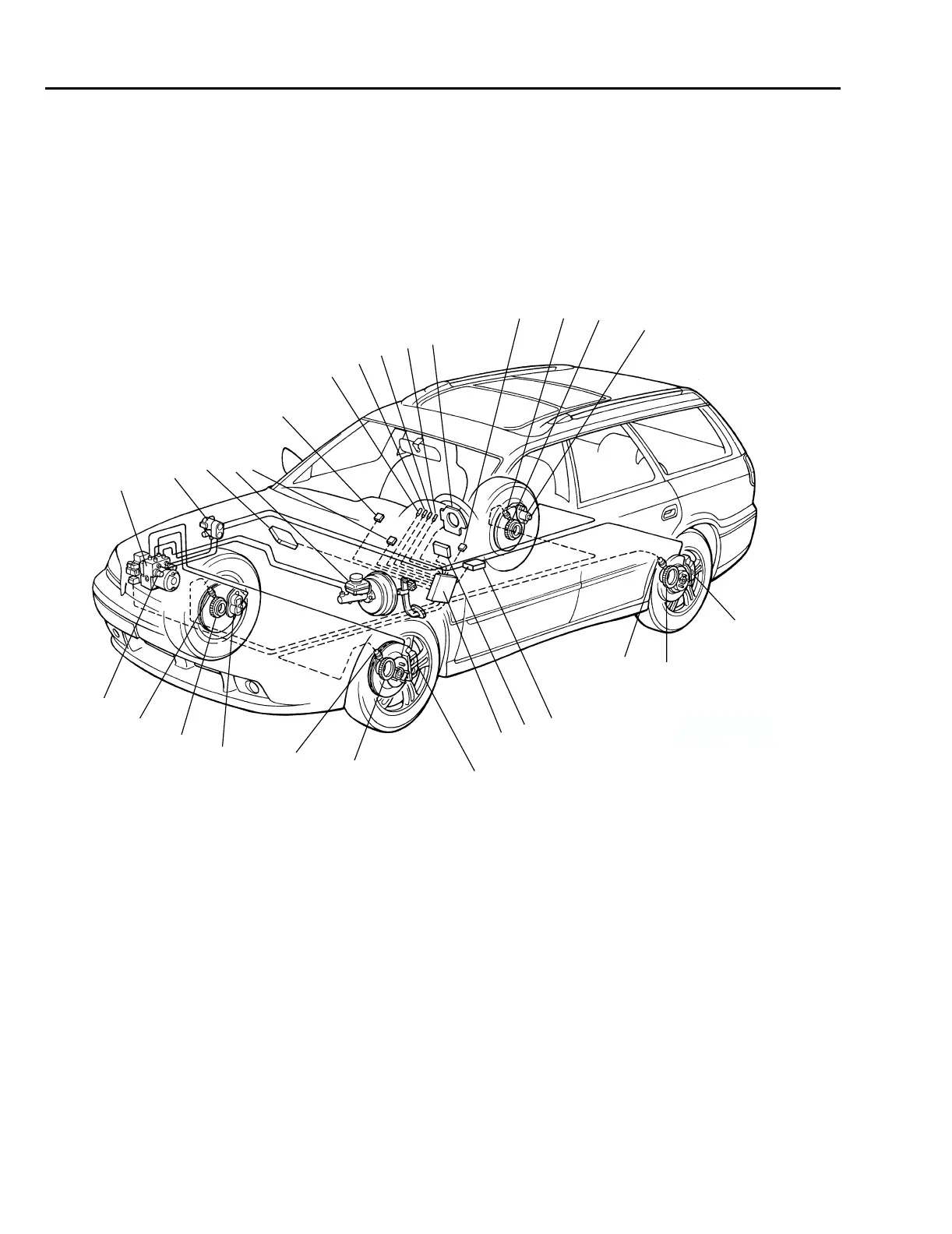

(1) VDC hydraulic control unit (8) VDC operating indicator light (15) Yaw-rate and lateral G sensor
(2) Proportioning valve (9) VDC OFF indicator light (16) Automatic transmission
control module
(3) Engine control module (10) Steering angle sensor (17) VDC control module
(4) Master cylinder (11) Data link connector (for SUBARU
select monitor)
(18) Pressure sensor
(5) Diagnosis connector (12) ABS sensor (19) VDC OFF switch
(6) ABS warning light (13) Tone wheel
(7) VDC warning light (14) Wheel cylinder
