Parking Brake
PARKING BRAKE
PB-4
2. RELEASING
When the parking brake lever is returned to the release position and the parking brake cables are
slackened, the brake shoes A and B are moved back to their original positions by the tension of
return springs, so that the parking brake is released.

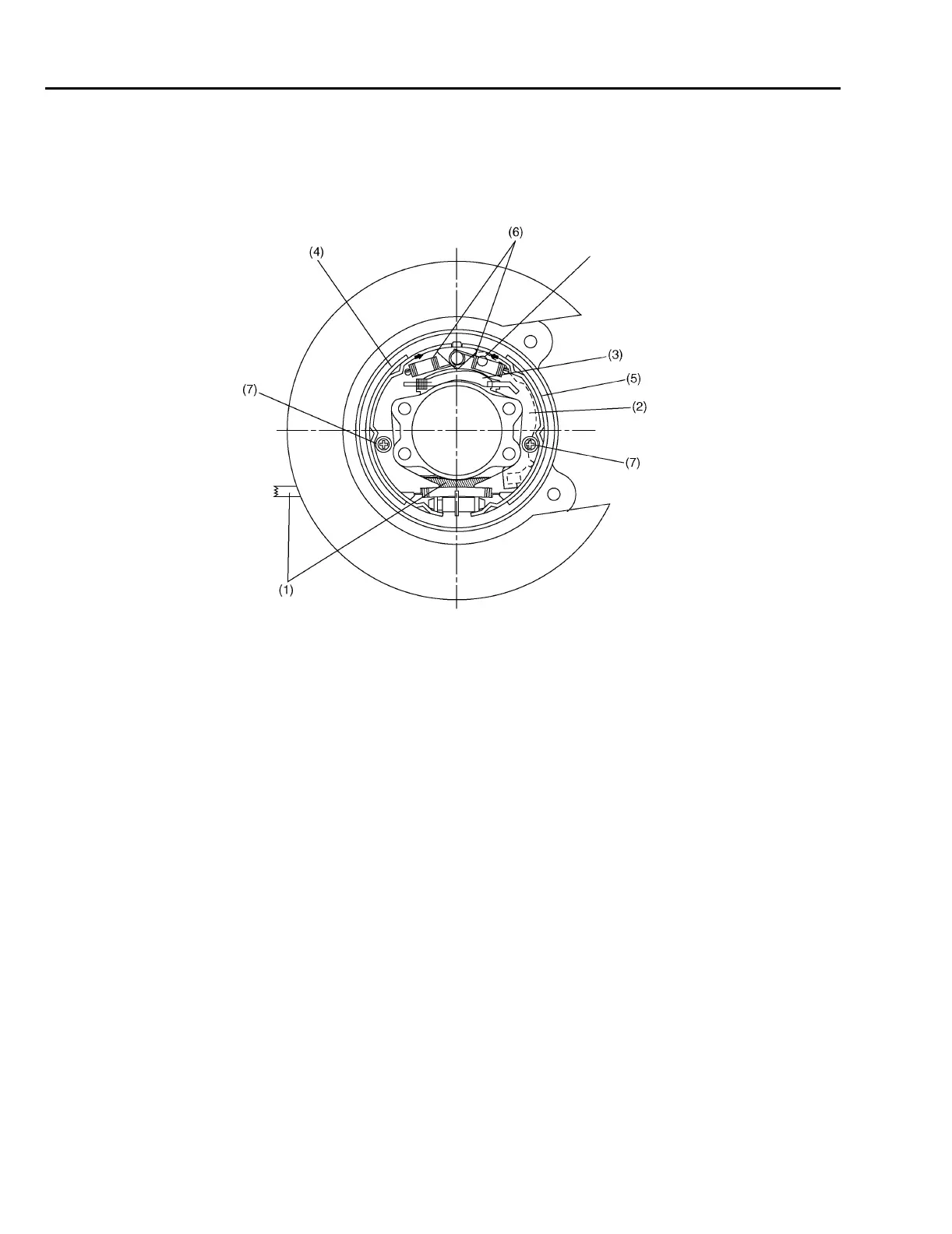

(1) Parking brake cable (5) Brake shoe B
(2) Lever (6) Shoe return spring
(3) Strut (7) Shoe hold down pin
(4) Brake shoe A (8) Point “P”
(8)
B4H1941B
