Power Assisted System (Power Steering)
TILT STEERING COLUMN
PS-3
B: ENERGY-ABSORBING MECHANISM
! To absorb the backward movement energy generated in the engine in the event of a frontal col-
lision, an elliptical fitting type steering column pipe has been adopted. When an impact load ex-
ceeding a certain level is applied to the steering column, the elliptical fittings crash and their ends
come in contact with each other. The column bending load is supported by the fittings.
! Another measure to alleviate impact on the driver in the event of a collision is the ripping plate
which is located between the steering column and the tilt bracket attached to the steering support
beam. When a large impact load is applied to the steering column, the ripping plate is deformed
and torn progressively. The impact energy is absorbed during this process.

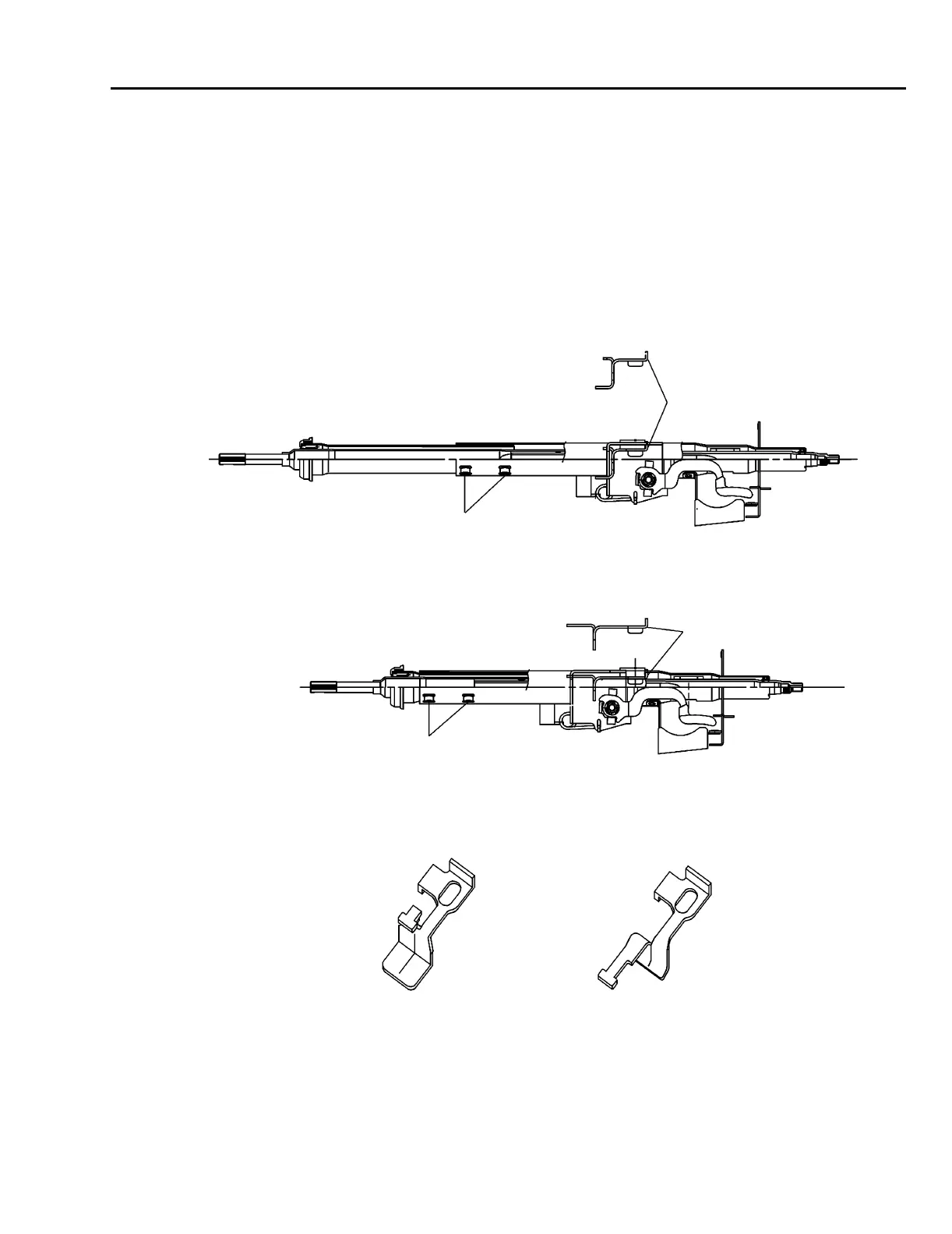

(A) Before absorption of impact energy (1) Ripping plate
(B) After absorption of impact energy (2) Elliptical fitting
(C) Ripping plate (3) Before ripping
(4) After ripping
(4)(3)
(2)
(1)
(1)
(B)
(C)
(A)
B4H1717B
