HVAC System (Heater, Ventilator and A/C)
HEATER SYSTEM
AC-3

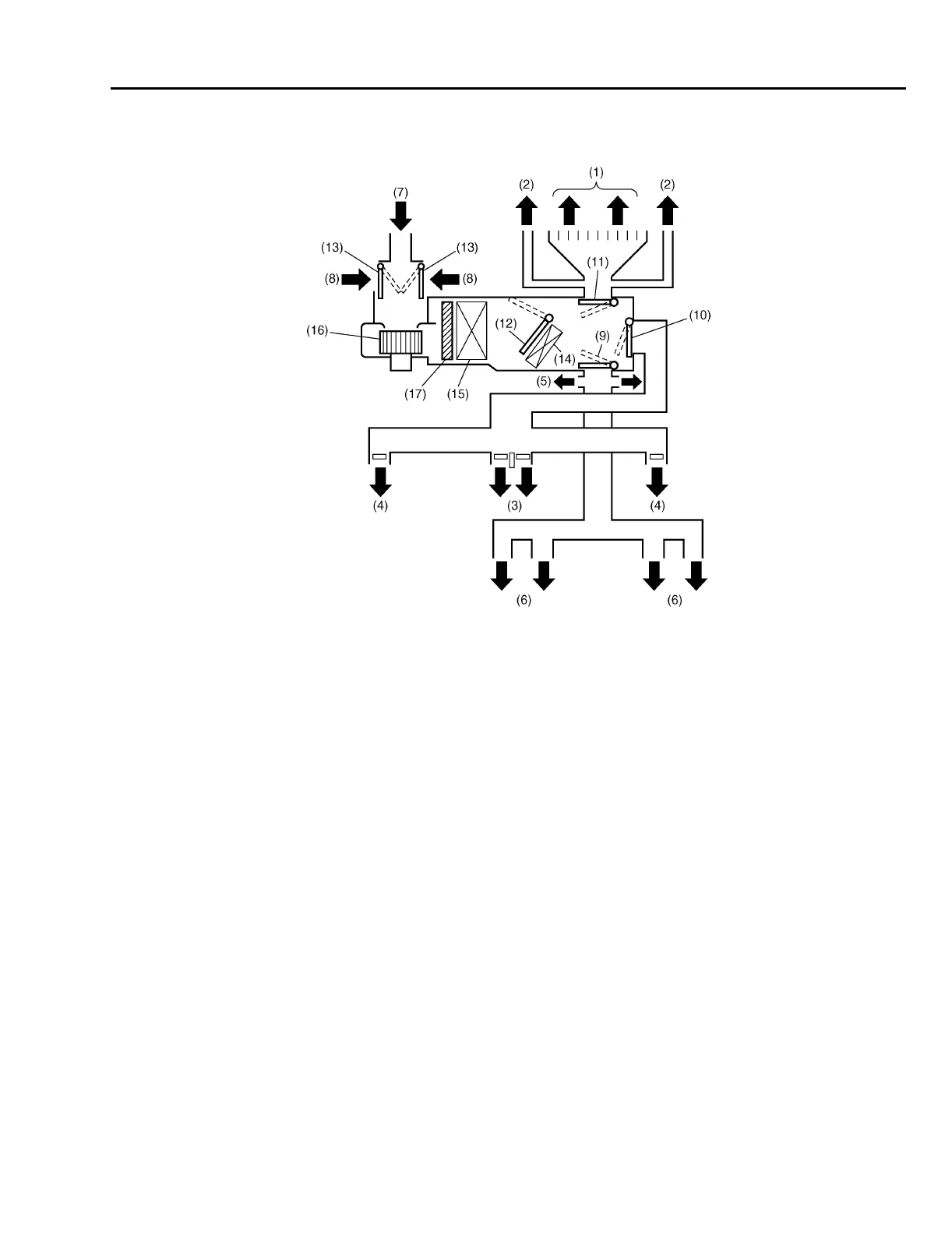

B: RHD MODEL
(1) Front defroster outlet (7) Fresh air (13) Intake door
(2) Side defroster outlet (8) Recirculated air (14) Heater core
(3) Center ventilator outlet (9) Ventilator door (15) Evaporator (A/C model)
(4) Side ventilator outlet (10) Heater door (16) Blower fan
(5) Front heater outlet (11) Defroster door (17) Filter (Option)
(6) Rear heater outlet (12) Air mix door A/C: Air conditioner
B4H2279A
