HVAC System (Heater, Ventilator and A/C)
CONDENSER
AC-29
2. RHD MODEL
The condenser is of a multi-flow type with a modulator which incorporates a drier and a filter. Its
lower portion forms the sub-cool condenser. The gaseous refrigerant that has entered the con-
denser flows through the modulator to the sub-cool condenser. Passing through the sub-cool con-
denser, nearly 100% of the gaseous refrigerant becomes liquid.

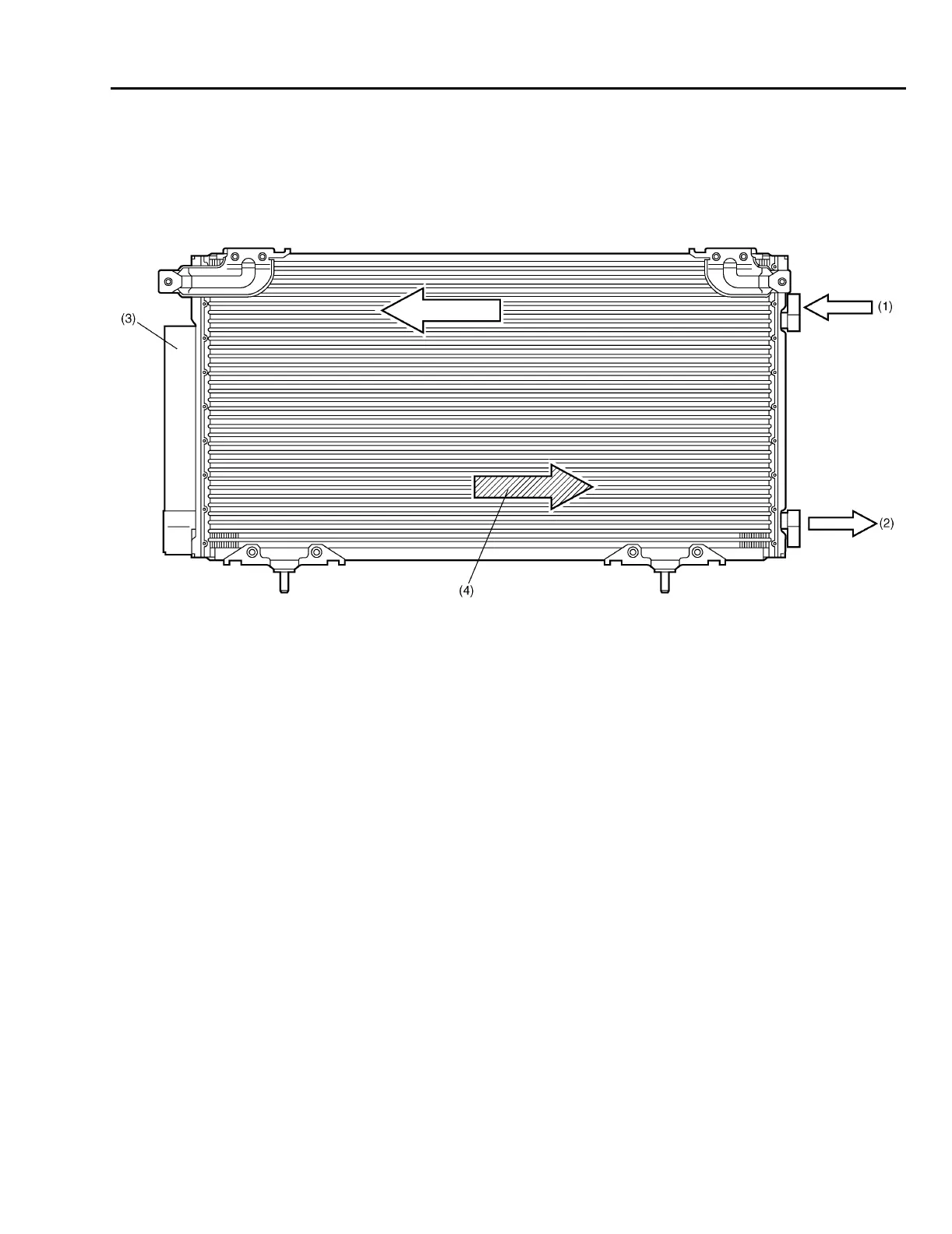

(1) Refrigerant inlet (High-pressure gas refrigerant)
(2) Refrigerant outlet (High-pressure liquid refrigerant)
(3) Modulator
(4) Sub-cool condenser portion
B4H1509A
To Next Page
