Airbag System
AIRBAG SYSTEM
AB-2

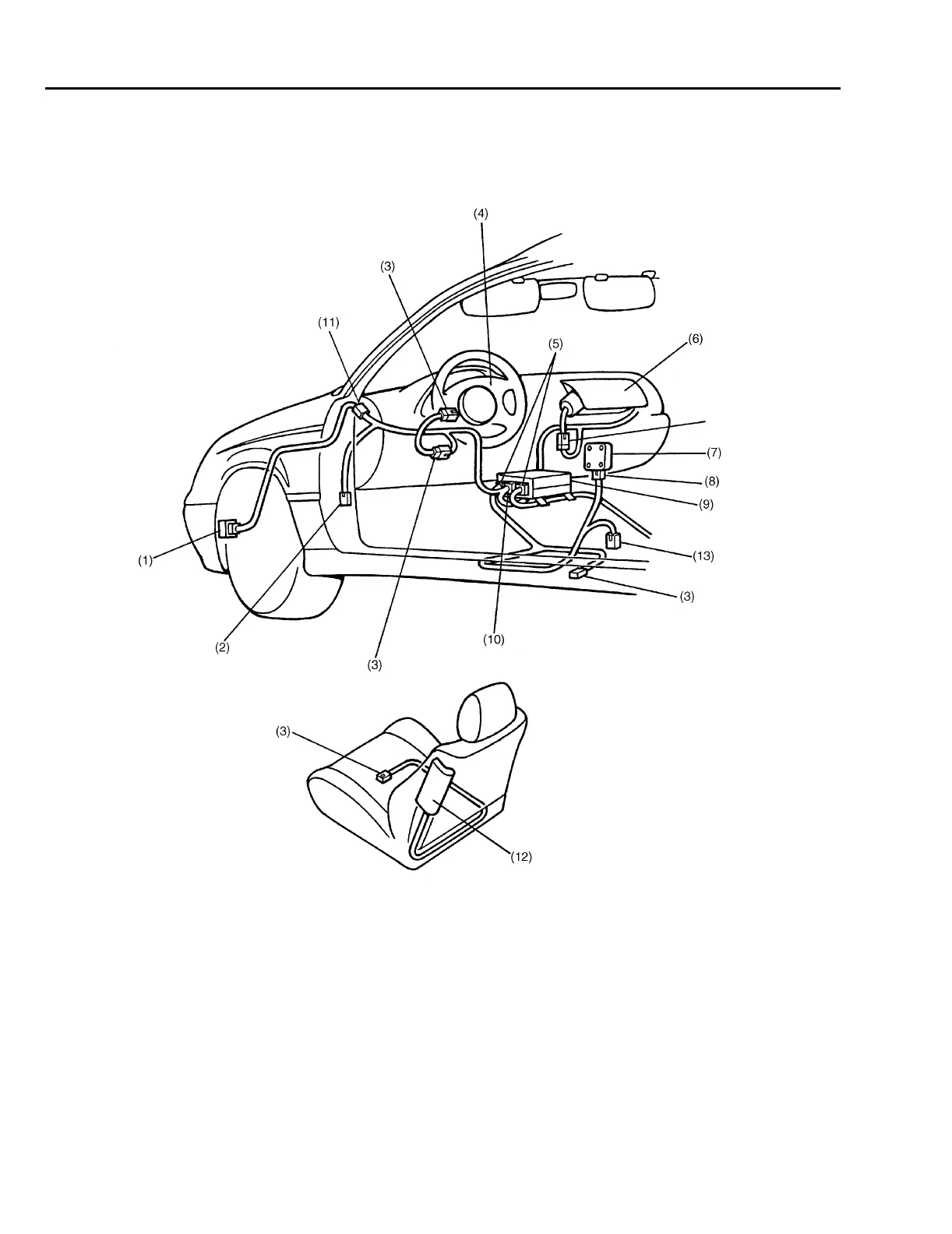

1. Airbag System
A: INSTALLATION
(1) Front sub sensor (8) 4-pin connector (Yellow)
(2) 7-pin connector (Yellow) (9) Airbag control module
(3) 2-pin connector (Yellow) (10) 28-pin connector (Yellow)
(4) Airbag module (Driver) (11) 2-pin connector (Blue)
(5) 12-pin connector (Yellow) (12) Airbag module (Side)
(6) Airbag module (Passenger) (13) 2-pin connector (Yellow) (To seat belt pretensioner)
(7) Side airbag sensor
(3)
B5H0840C
