Airbag System
CONSTRUCTION
AB-6

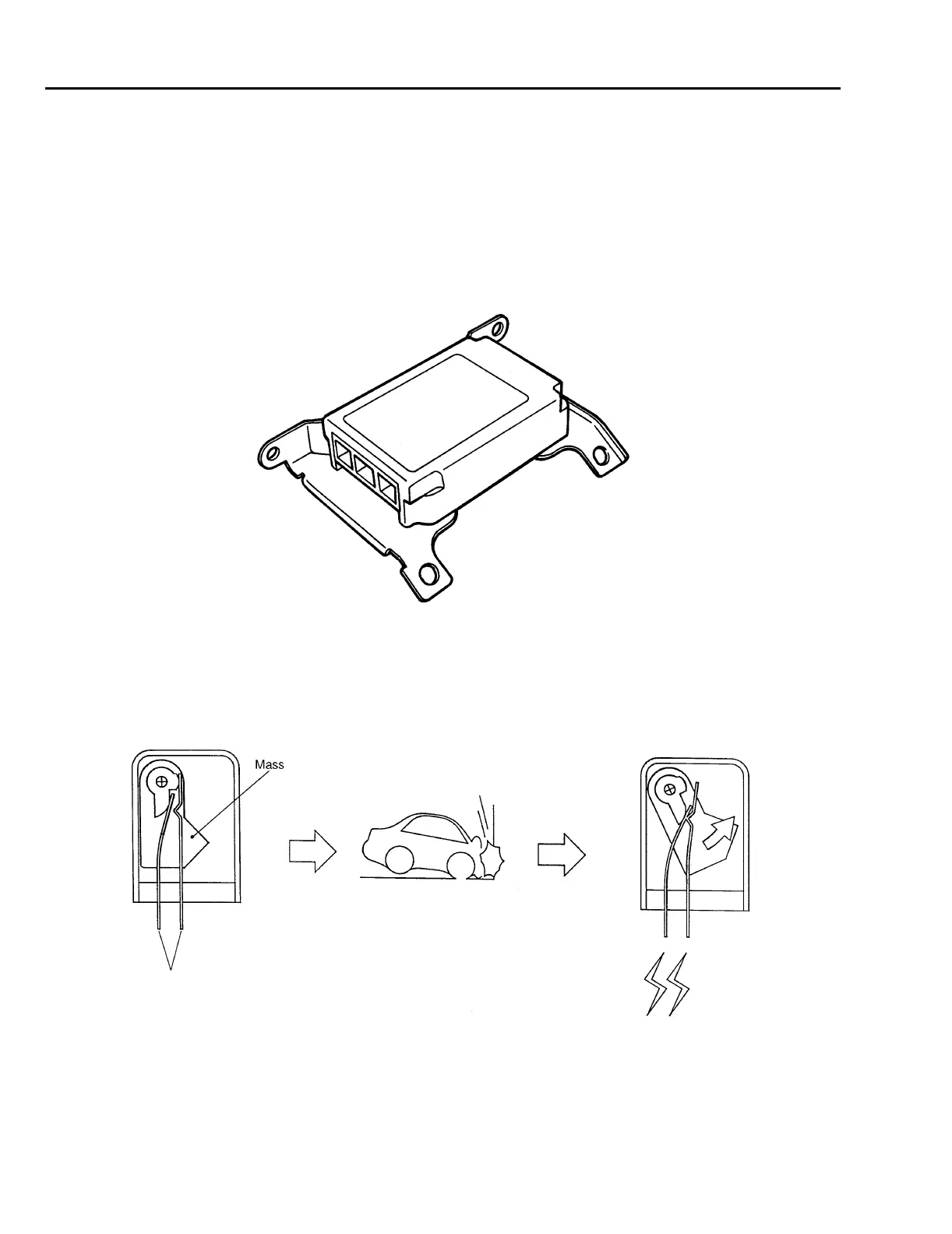

B: AIRBAG CONTROL MODULE
The airbag control module is installed in front of the front floor tunnel. It detects the vehicle’s de-
celeration by receiving electrical signals from its inside safety and electric sensors as well as the
front sub sensors and judges whether to inflate the airbags. This control module has a built-in self-
diagnosis function. If a fault occurs inside the system, it lights up the airbag warning light in the
combination meter. The fault data is stored in the module. A back-up power supply is provided for
possible damage to the battery during an accident, and a boosting circuit is built into the module
in case of a battery voltage drop.
C: FRONT SUB SENSOR
One front sub sensor is installed on each side, in front of the front wheel apron wall. The front sub
sensor is a pendulum type sensor. If the sensor receives a frontal impact exceeding a certain limit,
the mass in the sensor rotates forward to turn the switch ON.
S5H0010
Switch contacts
B5H0507B
To Next Page
