Airbag System
CONSTRUCTION
AB-9
F: AIRBAG CONNECTORS
1. DESCRIPTION
The airbag system uses connectors with a double lock mechanism and an incomplete coupling
detection mechanism for enhanced reliability. If coupling is incomplete, the airbag warning light
comes on in the combination meter.

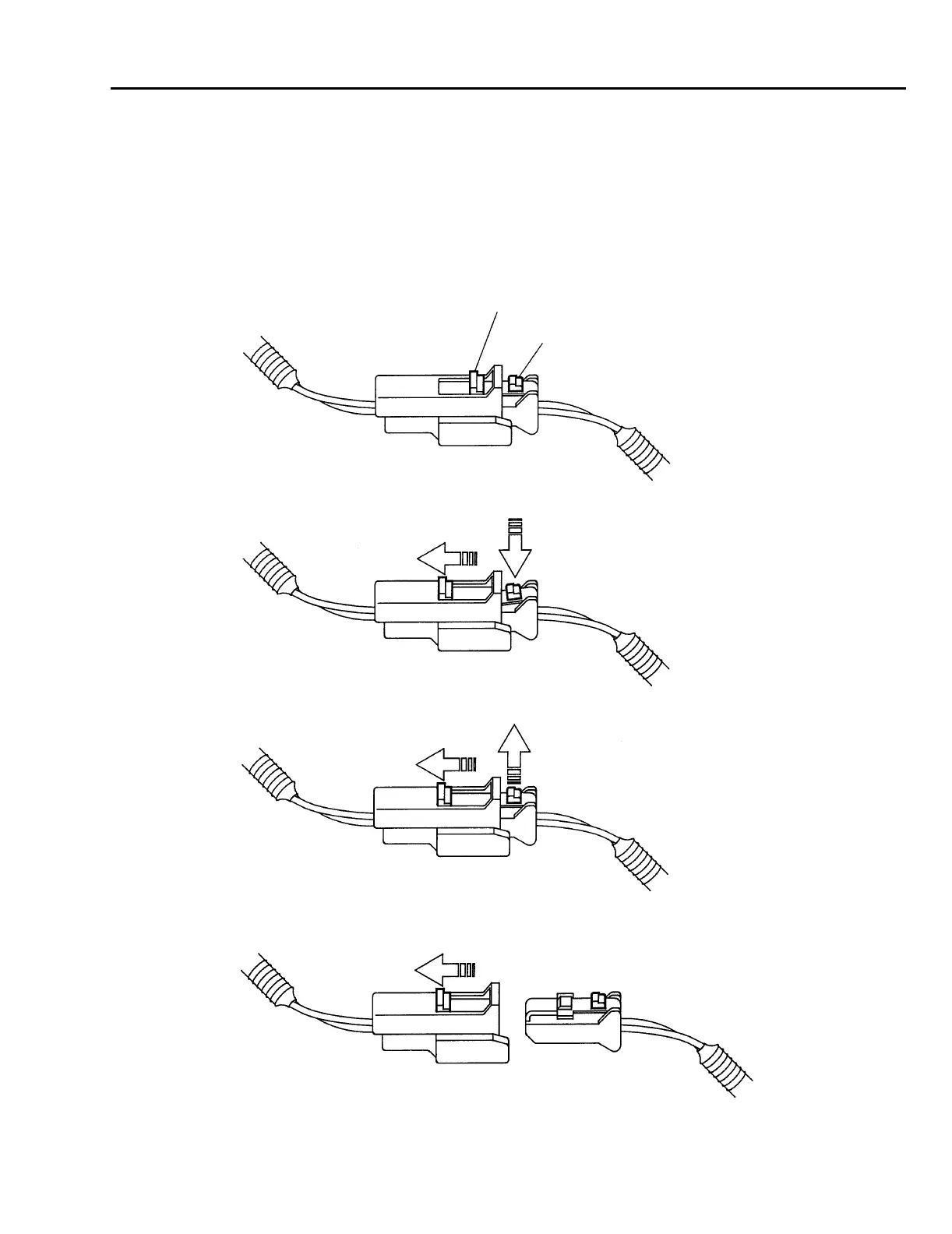

2. AIRBAG HARNESS-TO-AIRBAG HARNESS CONNECTOR
Slide lock
Lock arm
Step 1:
Push
Step 2:
Slide and hold
Step 3:
Release
Step 2:
Hold
Step 4:
Disconnect
Step 2:
Hold
(1)
(2)
(3)
Disconnection:
Connection:
Insert the male side connector half into the other until a “click” is heard.
S5H0012B
