Seat Belt System
SEAT BELT
SB-4
D: SEAT ANCHORED INNER BELT
The front inner belt (buckle stalk) is attached to the front seat rather than to the floor. This keeps
the position of the occupant relative to the front inner belt always constant even when the front
seat is moved for adjustment.

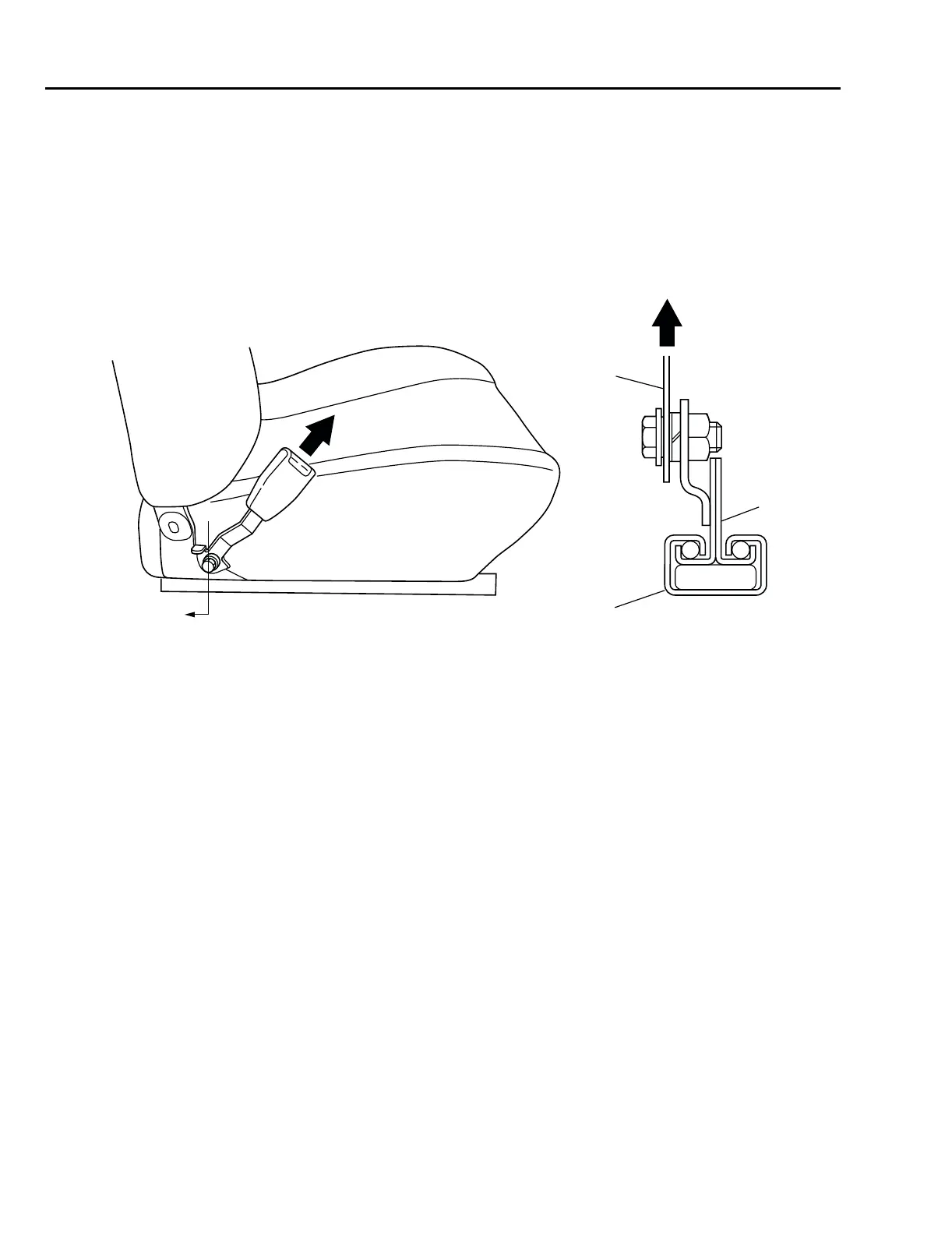

When an impact is applied to the occupant in a collision, the inner belt is pulled together with the
upper hook in the direction of the arrow to engage the upper hook with the lower hook. As a result,
the impact load is transmitted to the vehicle body and dispersed.
(1) Inner belt
(2) Upper hook
(3) Lower hook
(3)
(2)
(1)
Section A
A
B5H0945A
