Fuel Injection (Fuel System)
FUEL LINE
FU-14

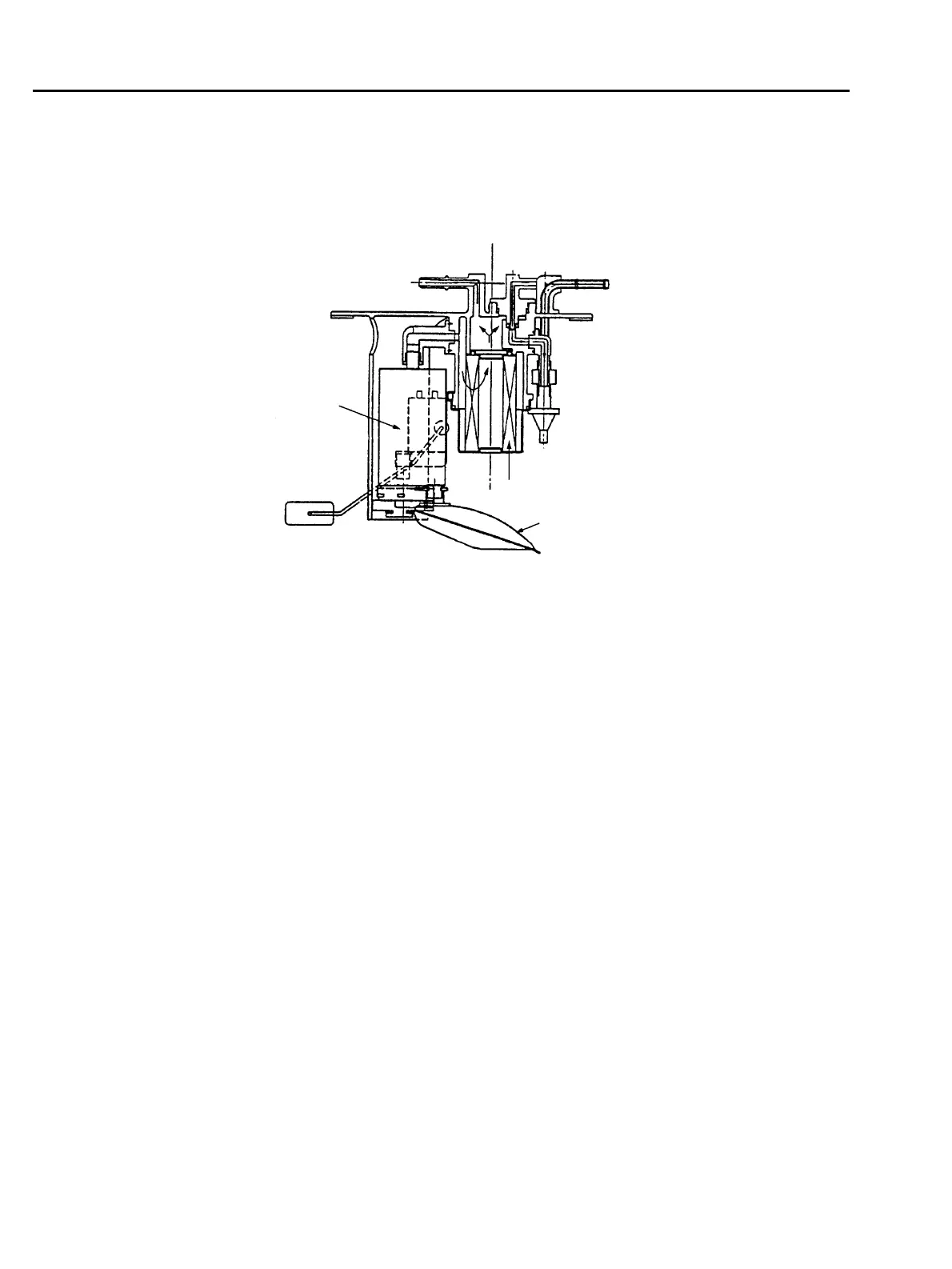

3. FUEL FILTERS
There are two different types of fuel filters inside fuel tank, forming integral part of the fuel pump.
The filter at the inlet of the fuel pump is a mesh type which removes relatively large particles in the
fuel before it enters the pump. The filter at the outlet of the pump is a pressure resistant cartridge
type whose inside filtering element can remove small particles in the pressurized fuel.
(1) Fuel pump
(2) Cartridge filter
(3) Mesh filter
(3)
(2)
(1)
B2H2910D
