Fuel Injection (Fuel System)
SENSORS AND SWITCHES
FU-19
C: CRANKSHAFT POSITION SENSOR
! The crankshaft position sensor is installed on the oil pump which is located in the front center
portion of the cylinder block. The sensor generates a pulse when one of the teeth on the perimeter
of the crankshaft sprocket (rotating together with the crankshaft) passes in front of it. The ECM
determines the crankshaft angular position by counting the number of pulses.

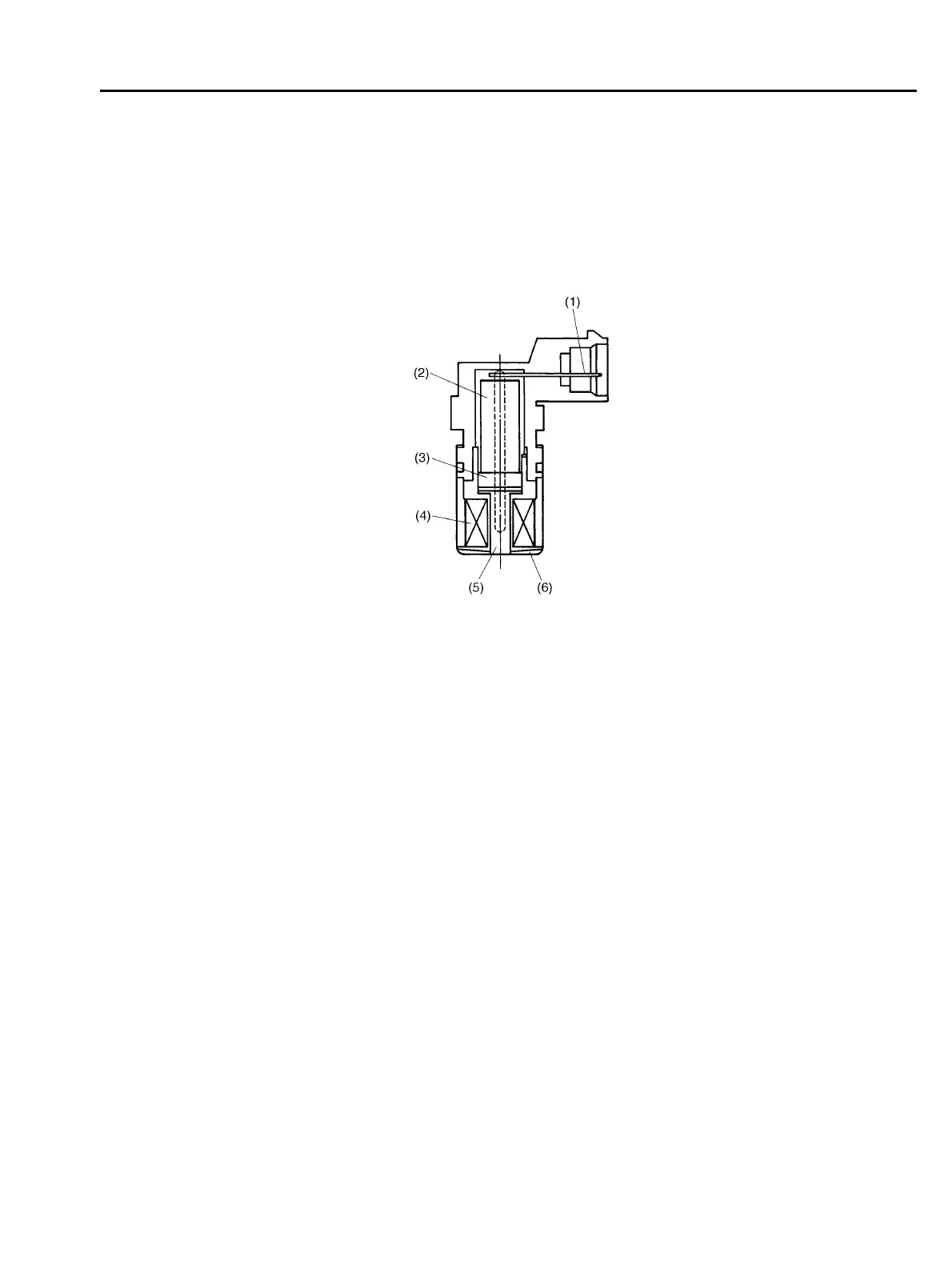

! The crankshaft position sensor is a molded type which consists of a magnet, core, coil, termi-
nals and other components as illustrated below.
(1) Terminal (4) Coil
(2) Yoke core (5) Core
(3) Magnet (6) Cover
B2H0407B
