Fuel Injection (Fuel System)
CONTROL SYSTEM
FU-31
! Ignition control after start of engine
Between the 97° and 65° crank angle signal, the ECM measures the engine speed, and by using
this data it decides the dwell set timing and ignition timing according to the engine condition.

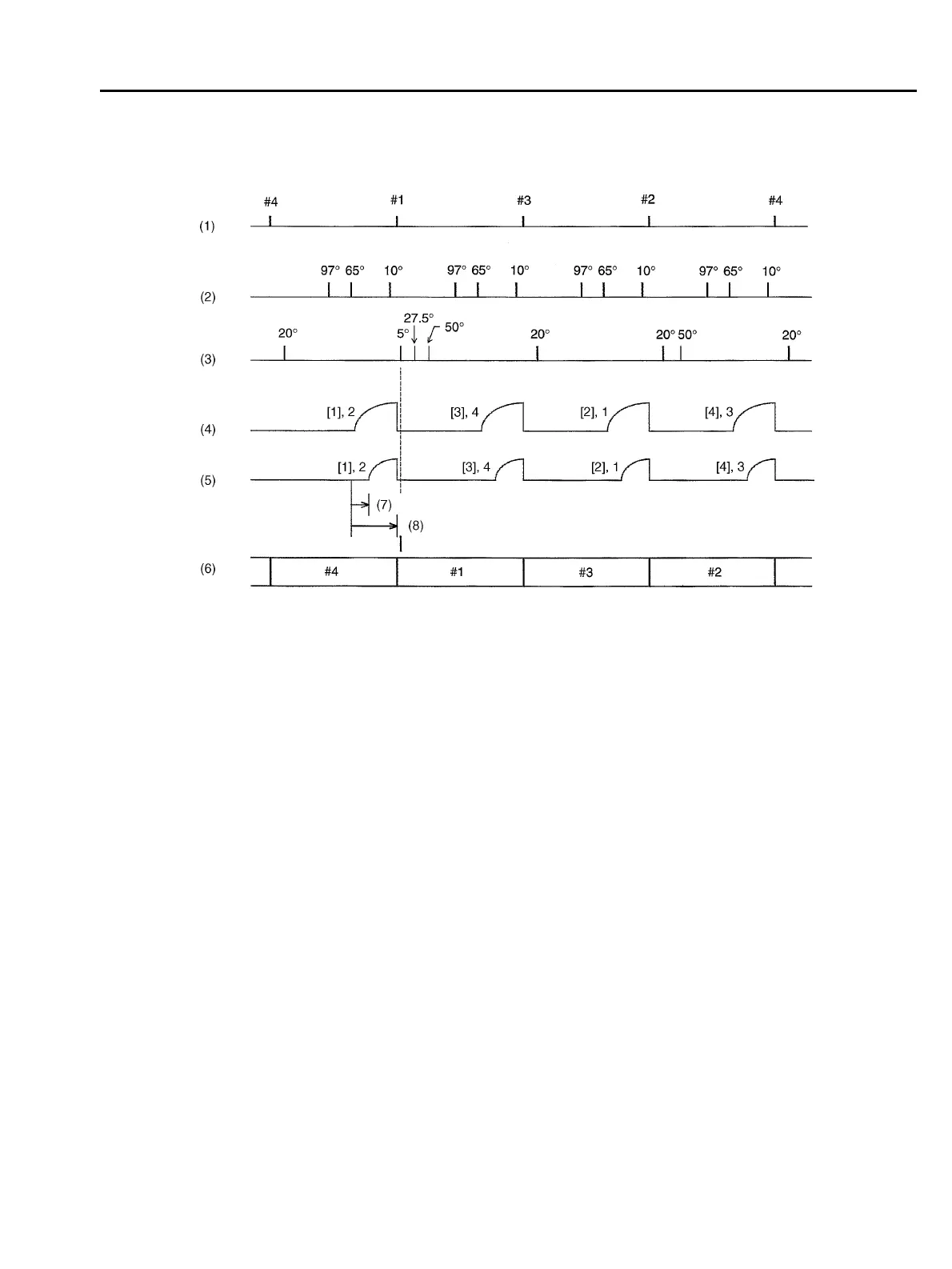

(1) Cylinder number (5) Ignition timing at normal condition
(2) Crank angle pulse (BTDC) (6) Burning cylinder
(3) Cam angle pulse (ATDC) (7) Dwell set
(4) Ignition timing at starting (8) Ignite
