3-2 Sun StorEdge 3000 Family FRU Installation Guide • May 2004
3.1 Replacing Power Supply/Fan Modules
for 2U Arrays
Caution – To avoid damage to equipment, do not remove a power supply/fan
module without a working replacement.
3.1.1 Removing an AC Power Supply/Fan Module
Be sure to follow “Static Electricity Precautions” on page 1-5.
1. Turn off the power, and then remove the AC cord locks (if applicable) and the
power cable.
2. Turn the thumbscrew at the top of the power supply latch counterclockwise until
the thumbscrew is disengaged from the power supply.

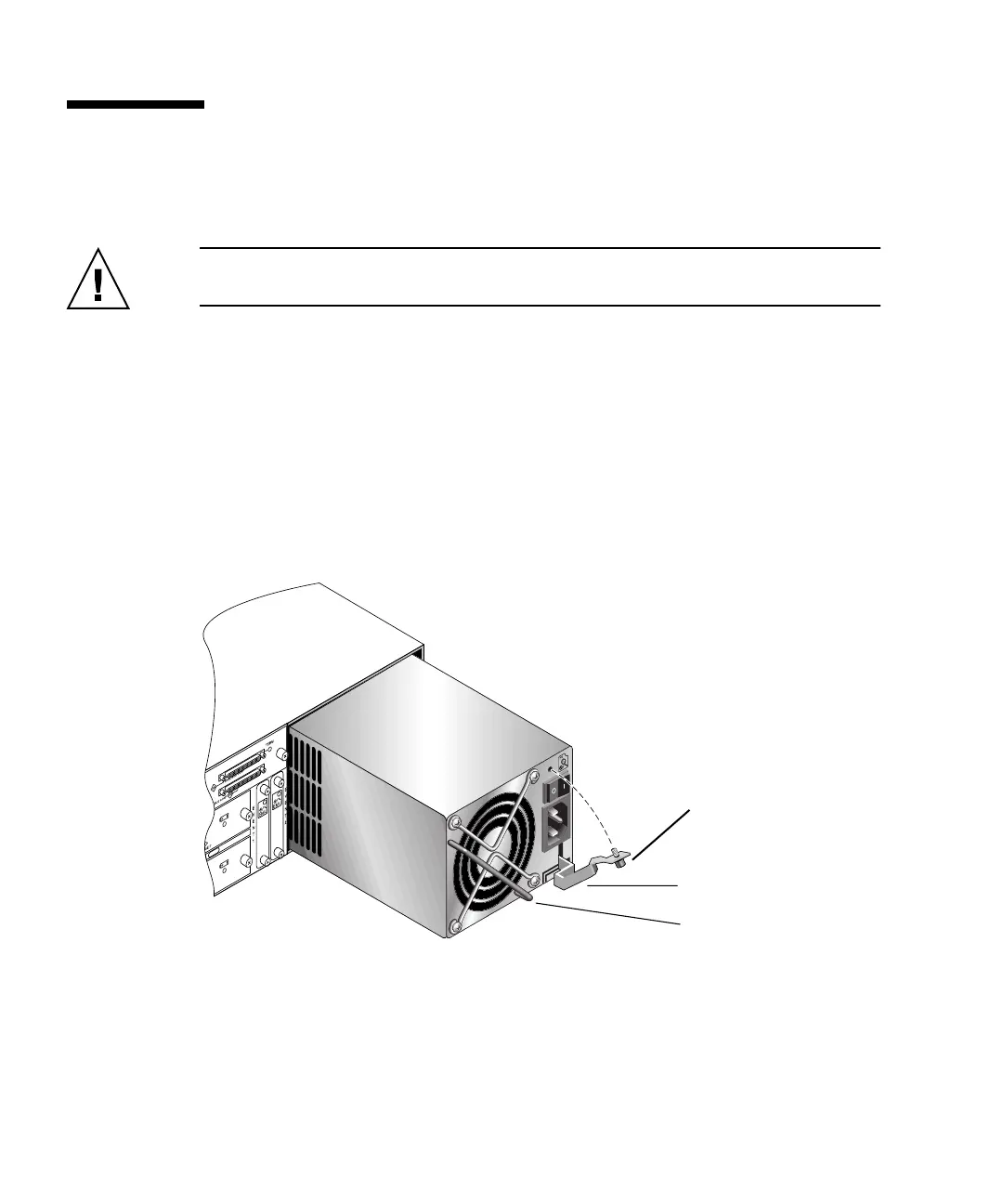

FIGURE 3-1 The Power Supply Partially Pulled out of the Chassis
3. Pull the latch forward about 45 degrees to disconnect the power supply/fan
module from the midplane.
4. Use the power supply handle to pull the power supply/fan module out of the
chassis.
Latch
Thumbscrew
Handle
