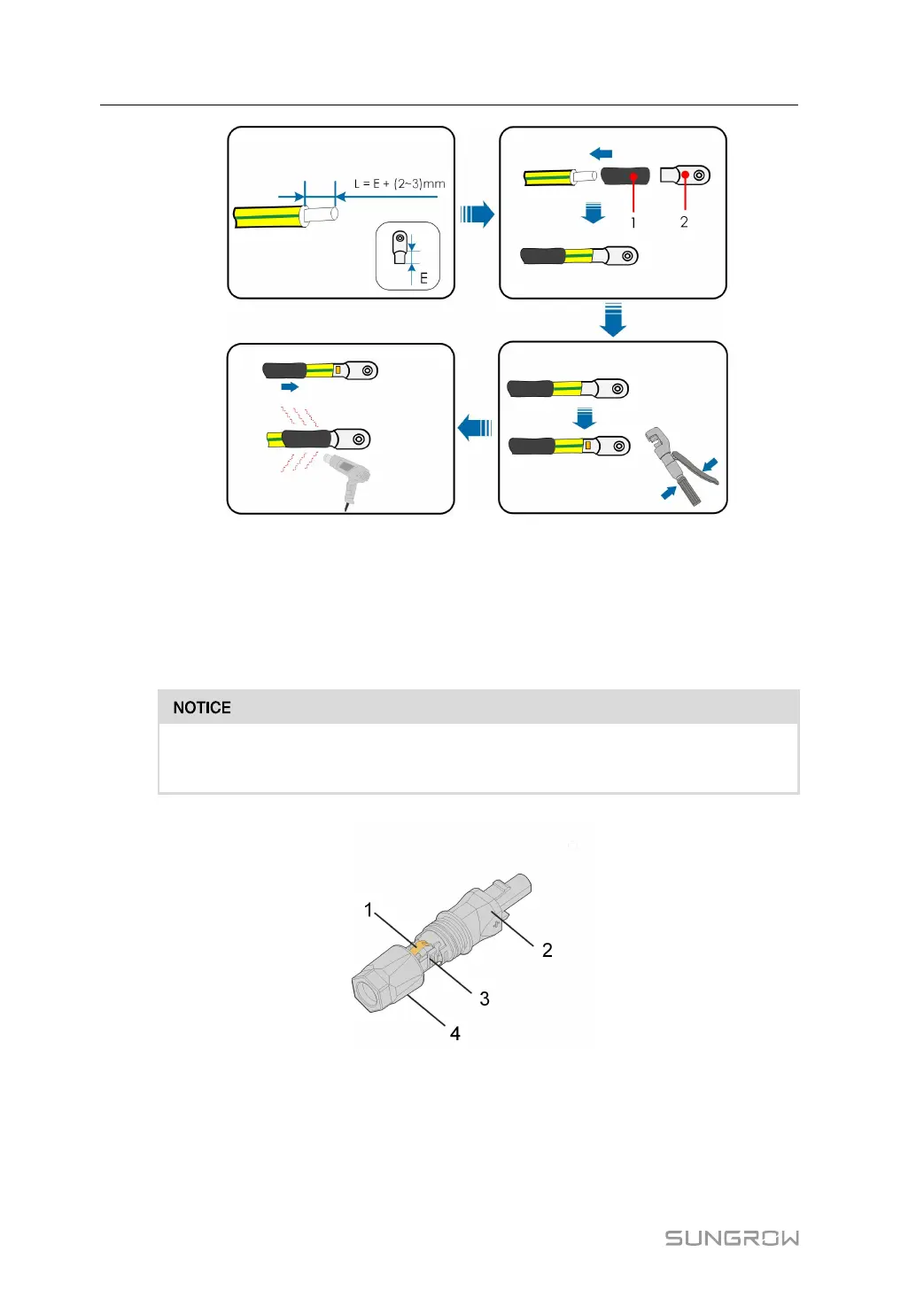

(1) Heat shrink tubing (2) OT/DT terminal

- - End

4.7 Assembling the SUNCLIX Connector

During assembly, be careful not to contaminate, pull out, or shift, the seal in the ca-

ble gland. A contaminated or shifted seal impairs strain relief and leak tightness.

figure 4-1 SUNCLIX Connector Components

1: Spring 2: Sleeve 3: Insert 4: Cable gland

step 1 Strip the insulation from the cable by 15 mm.
