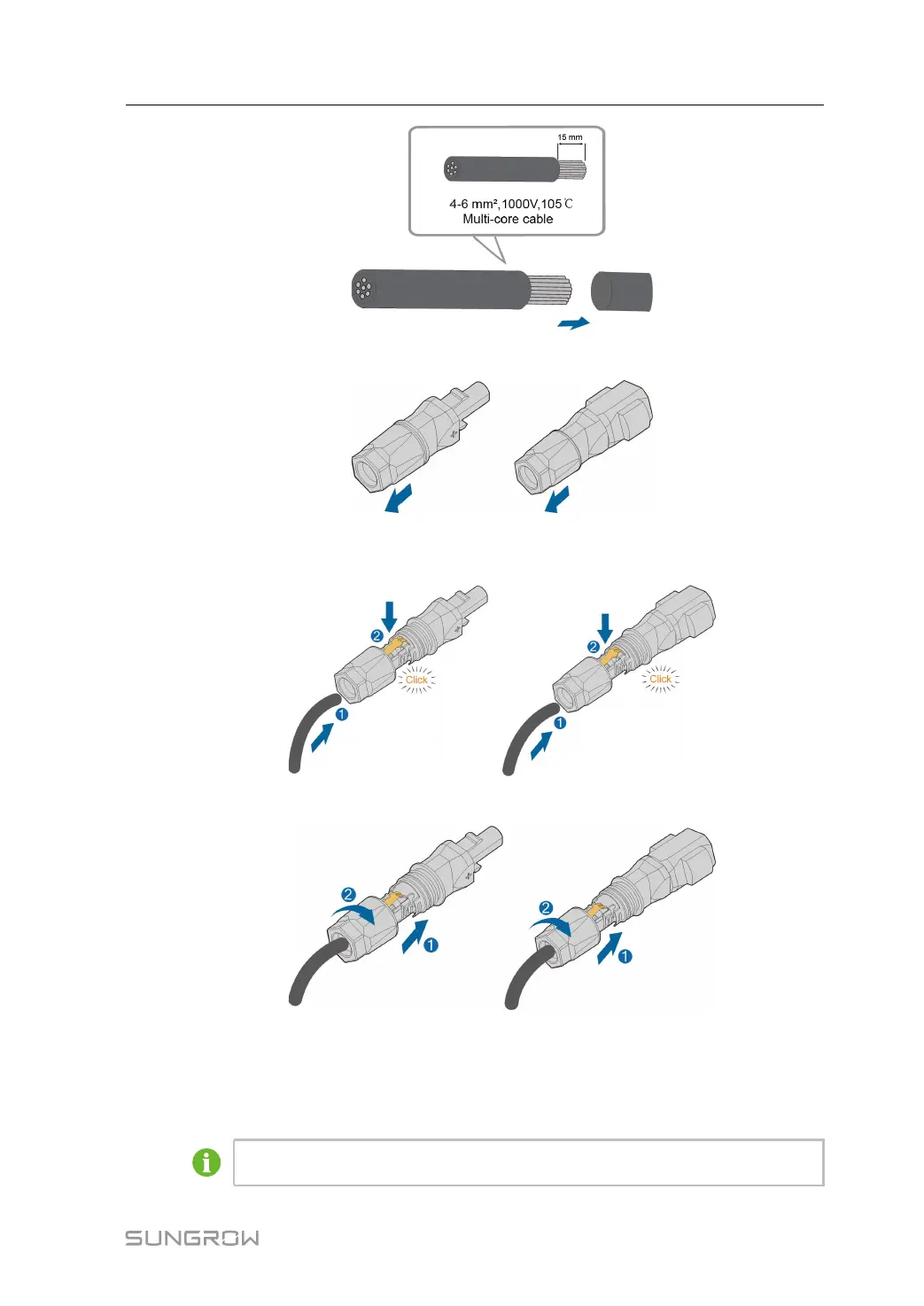

step 2 Pry the connection open and pull the sleeve and the insert apart.
step 3 Insert the stripped cable into the cable gland up to the stop. The stranded wire can be seen
inside the spring. Press the spring down until it audibly snaps into place.
step 4 Push the insert into the sleeve and tighten the cable gland (torque 2 N·m).
- - End
4.8 Assembling the Communication Connector(Optional)
If the communication connector received is G2, please skip this step.
User Manual 4 Mounting
