Sungrow SBR096 - Communication Connector Installation; RJ45 Plug Assembly

18

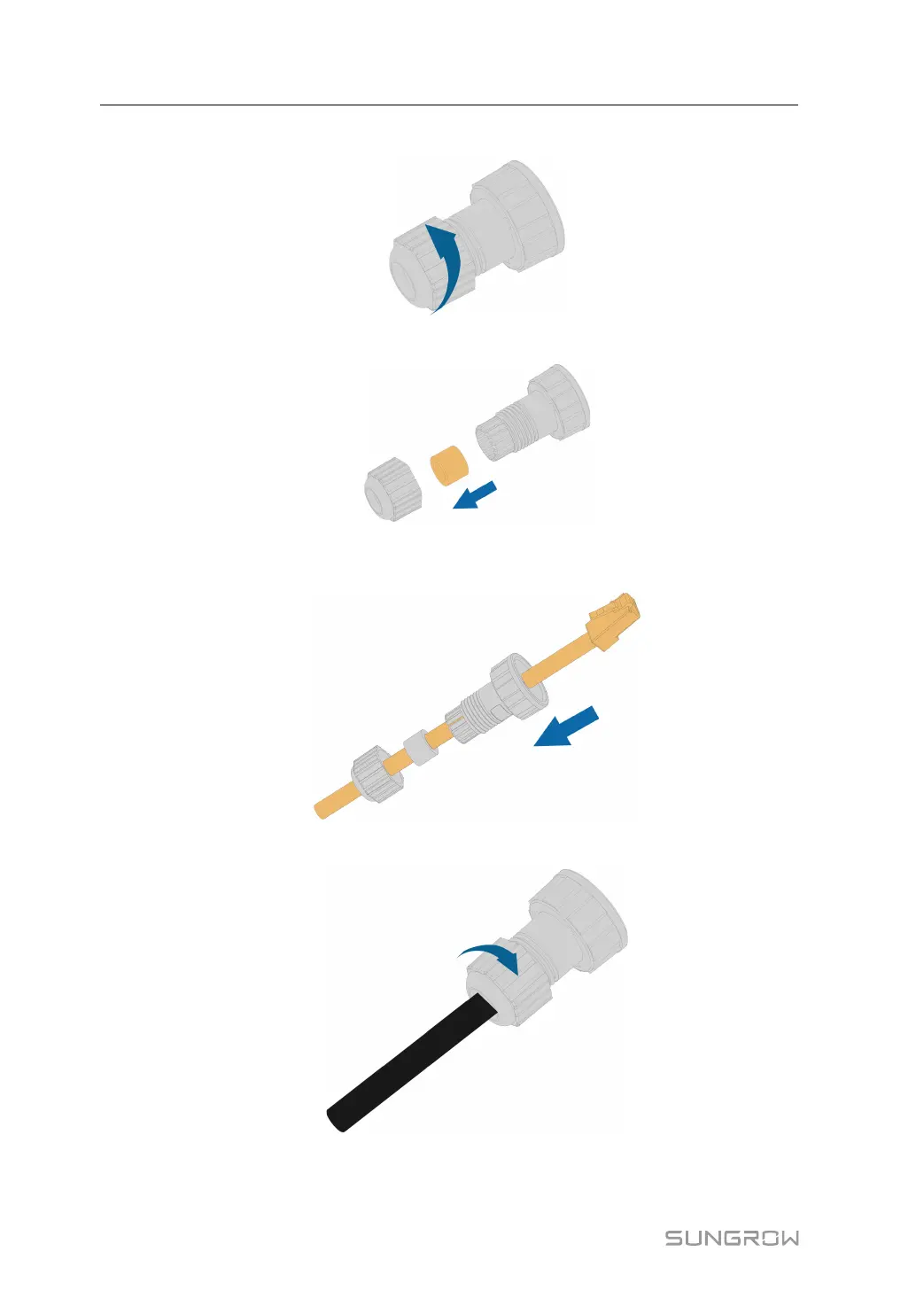

step 1 Unscrew the swivel nut from the connector.
step 2 Remove the inner rubber gasket.
step 3 Insert the RJ45 plug into the front plug connector until there is an audible click, and install
the rubber gasket.
step 4 Tighten the swivel nut.
- - End
