4.9 Installing the Battery
The SBR128 mounting will be used as an example.
The product with base A2 is taken as an example in the following installation steps.

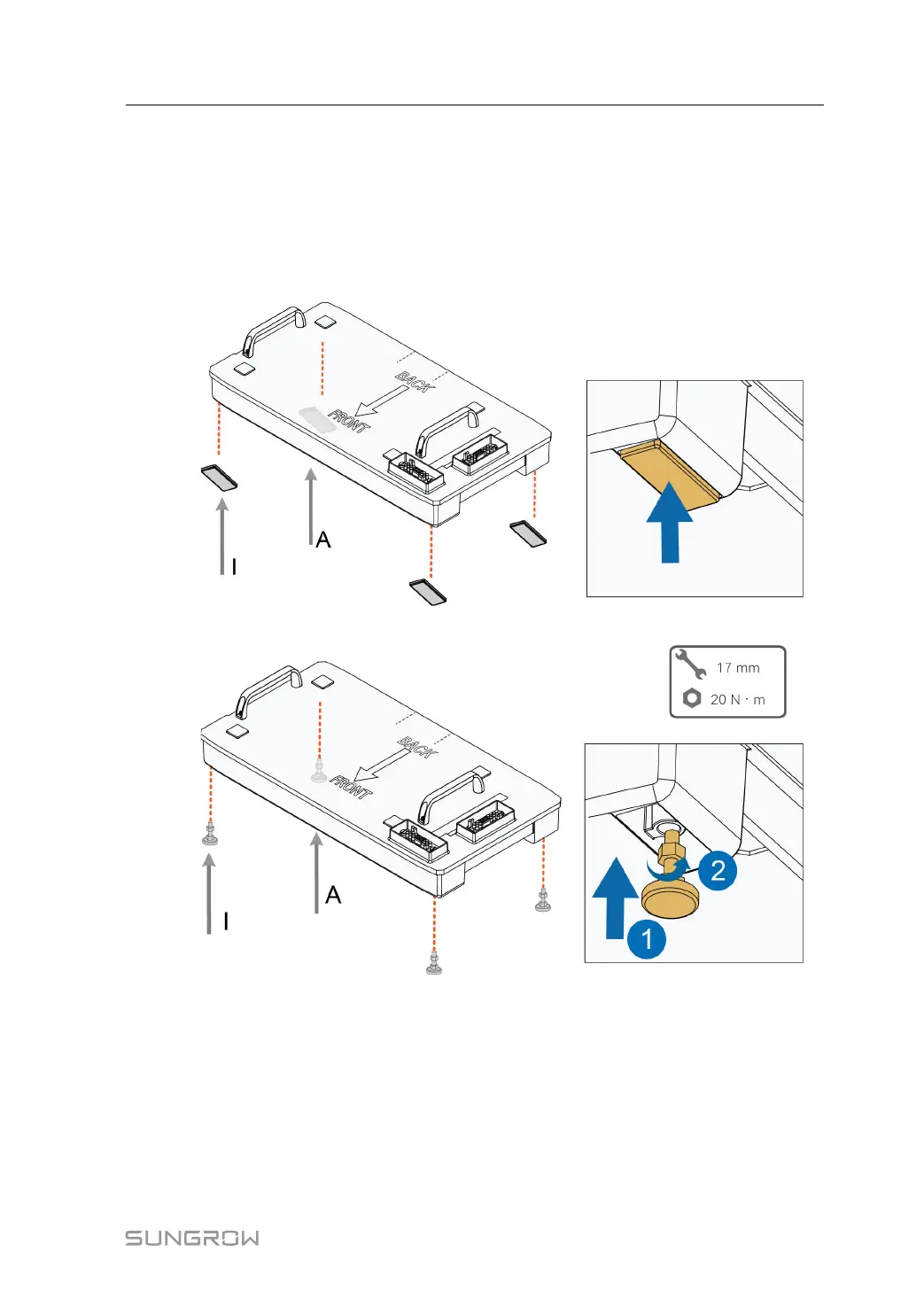

step 1 Install the feet of the battery.
Method 1
Method 2
step 2 Align the base with the wall, and keep a distance of 30 mm to 45 mm between the base and
the wall. Mark the hole positions of the mounting bracket with a marker according to the re-
quired layout of holes.
Case 1: The base is A1.
User Manual 4 Mounting
