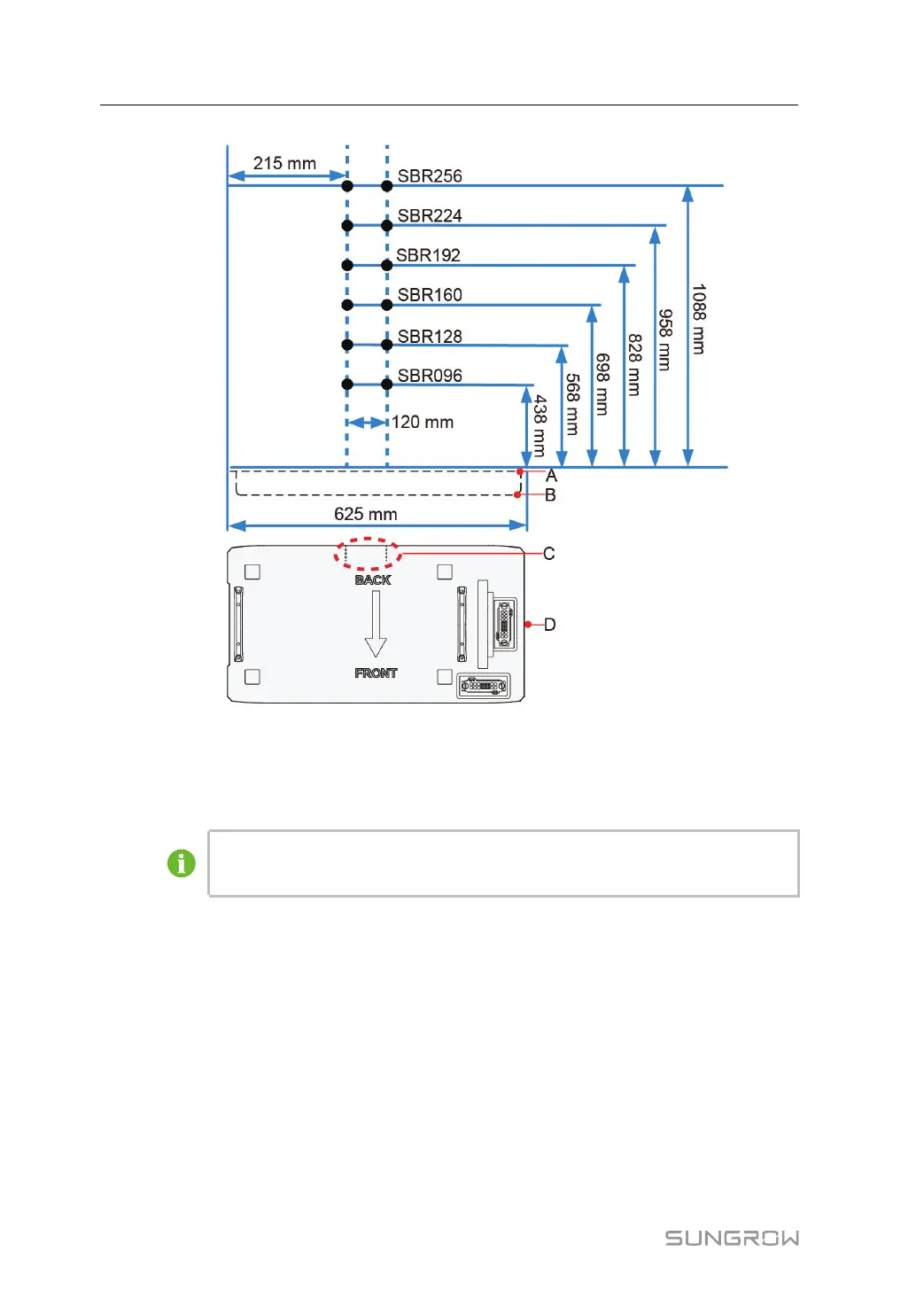

figure 4-2 Layout of holes with the base A1 as reference
A: Upper surface of the base B: Base A1(front view)
C: Measurement baseline D: Base A1(top view)
Mark the hole positions along a line vertical to the measurement baseline
The feet of the base have been installed already.
Case 2: The base is A2.
4 Mounting User Manual
