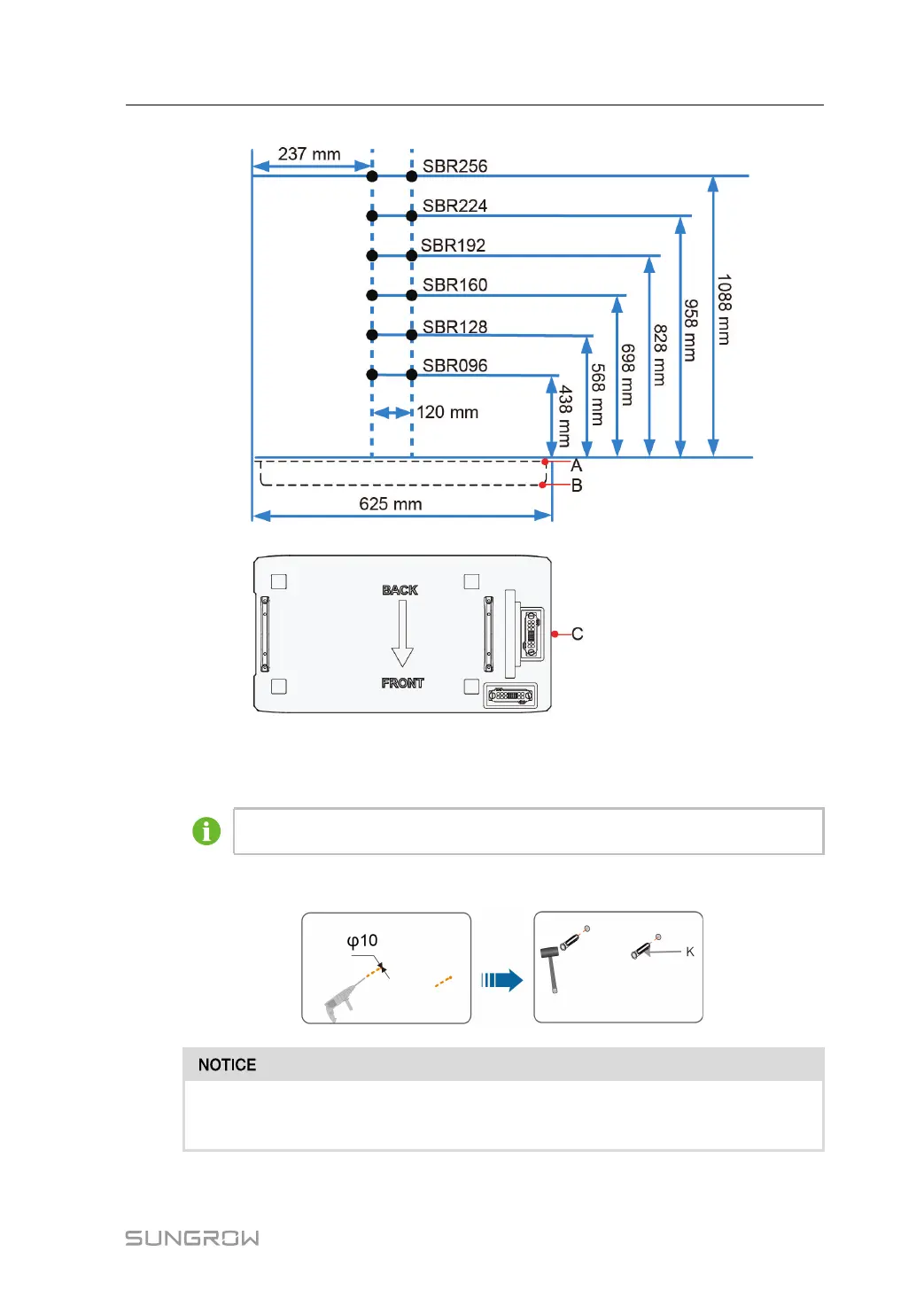

figure 4-3 Layout of holes with the base A2 as reference
A: Upper surface of the base B: Base A2(front view) C: Base A2(top view)
The feet of the base have been installed already.
step 3 Drill the holes according to the marked positions, and install the expansion sleeves.
Goggles and gloves are necessary when drilling holes for protection. Shield the
battery during drilling. After drilling, clean up debris in time.
step 4 Position the base maintaining the required distance from the wall.
User Manual 4 Mounting
