33

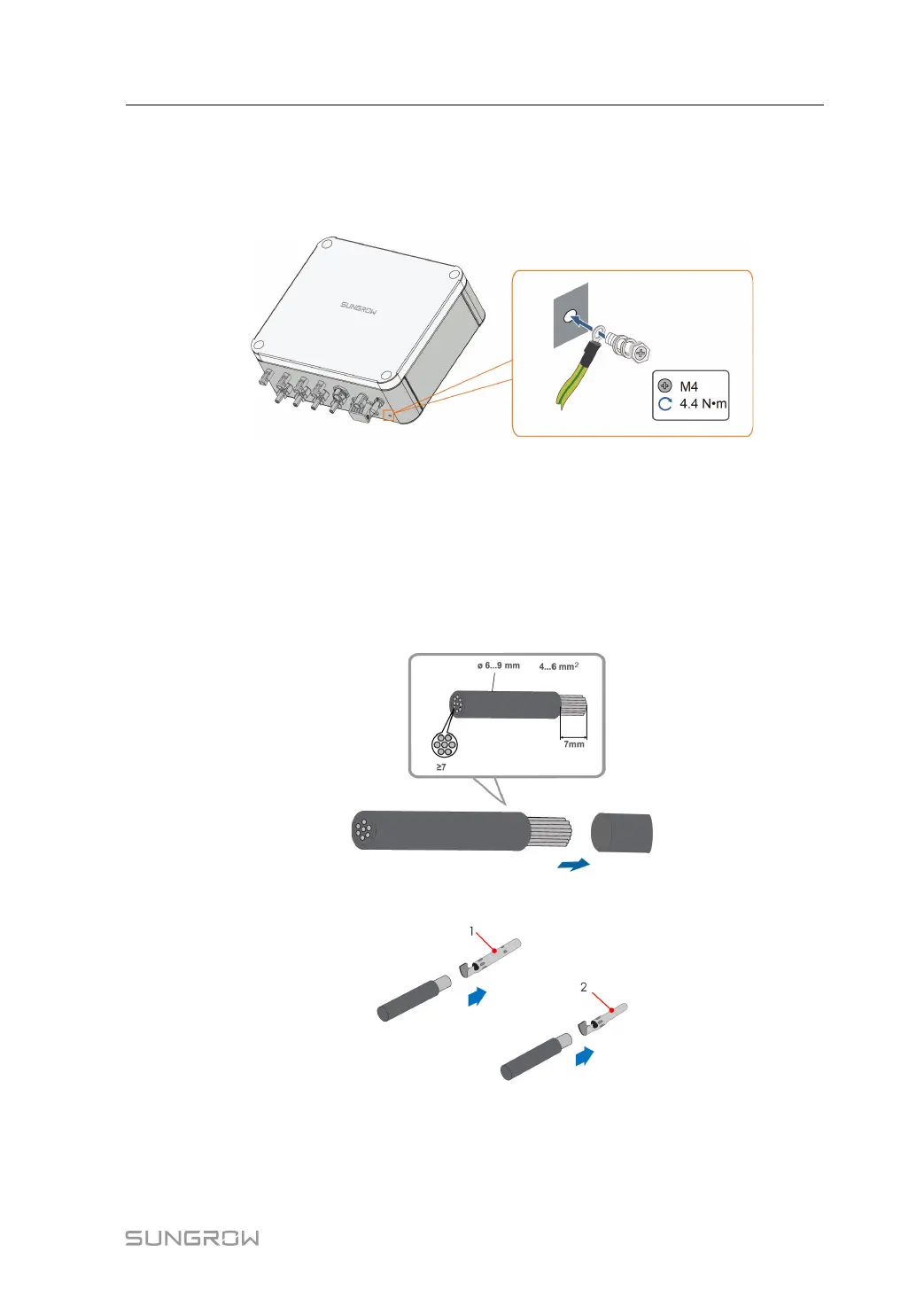

5.5 PE Cable Connection
step 1 For the preparation of PE cable, refer to section "4.6 PE Cable Preparation".
step 2 Remove the screw on the PE terminal and fasten the cable with a screwdriver.
step 3 Apply paint to the grounding terminal to ensure corrosion resistance.
- - End
5.6 Battery Connection
5.6.1 Assembling the Battery Connectors
step 1 Strip the insulation from each DC cable by 7 mm–8 mm.
step 2 Assemble the cable ends with the crimping pliers.
1: Positive crimp contact 2: Negative crimp contact
User Manual 5 Parallel System（Optional）
