Sungrow SG8K3-D - Mechanical Mounting

User Manual 4 Mechanical Mounting
25

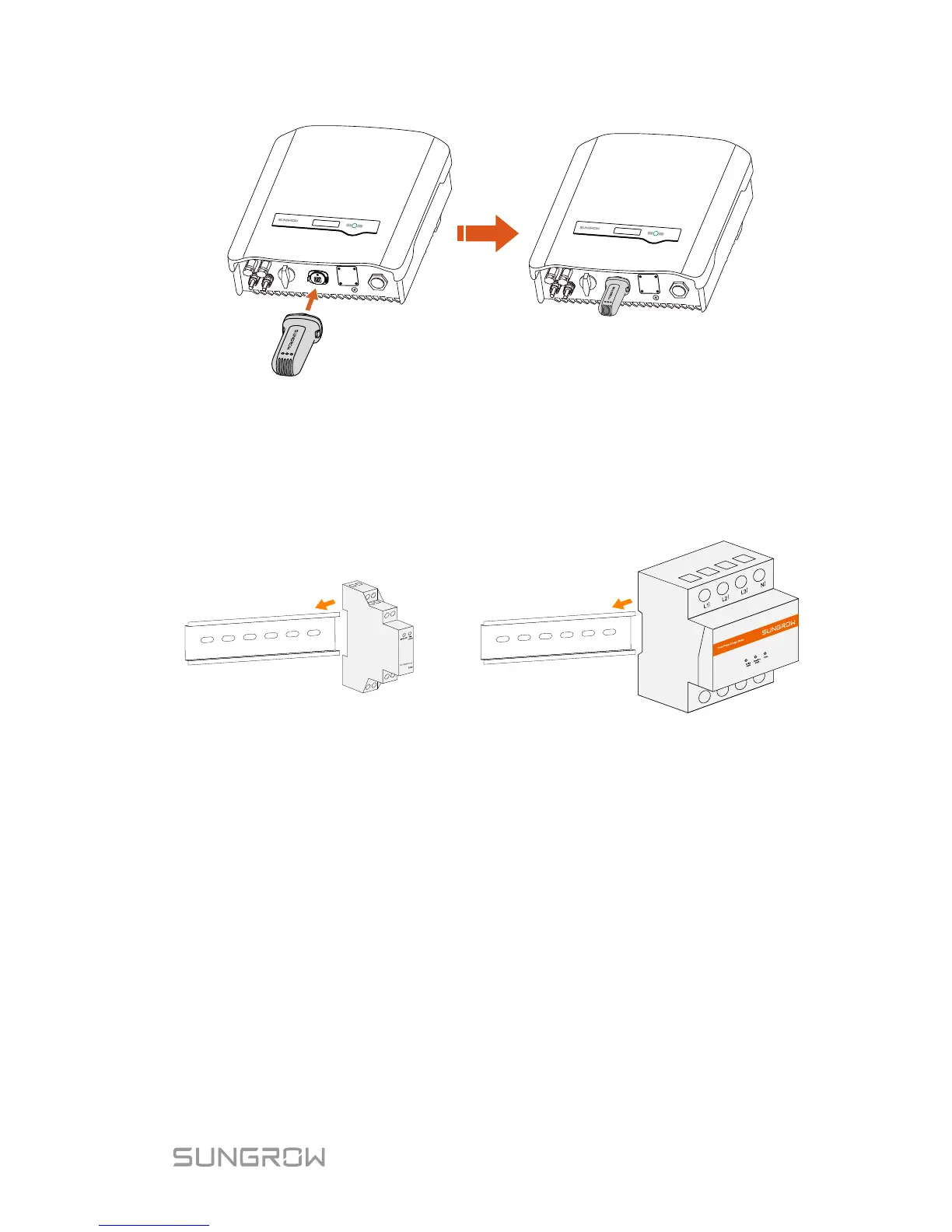

4.5 Installing the Energy Meter
The SUNGROW Energy Meter should be installed between the grid and the
load. It supports a 35 mm DIN-rail installation, as shown in the following figure.
Single-phase Energy Meter
Three-phase Energy Meter
Fig. 4-1 Installing the Meter to the Rail
