～8～

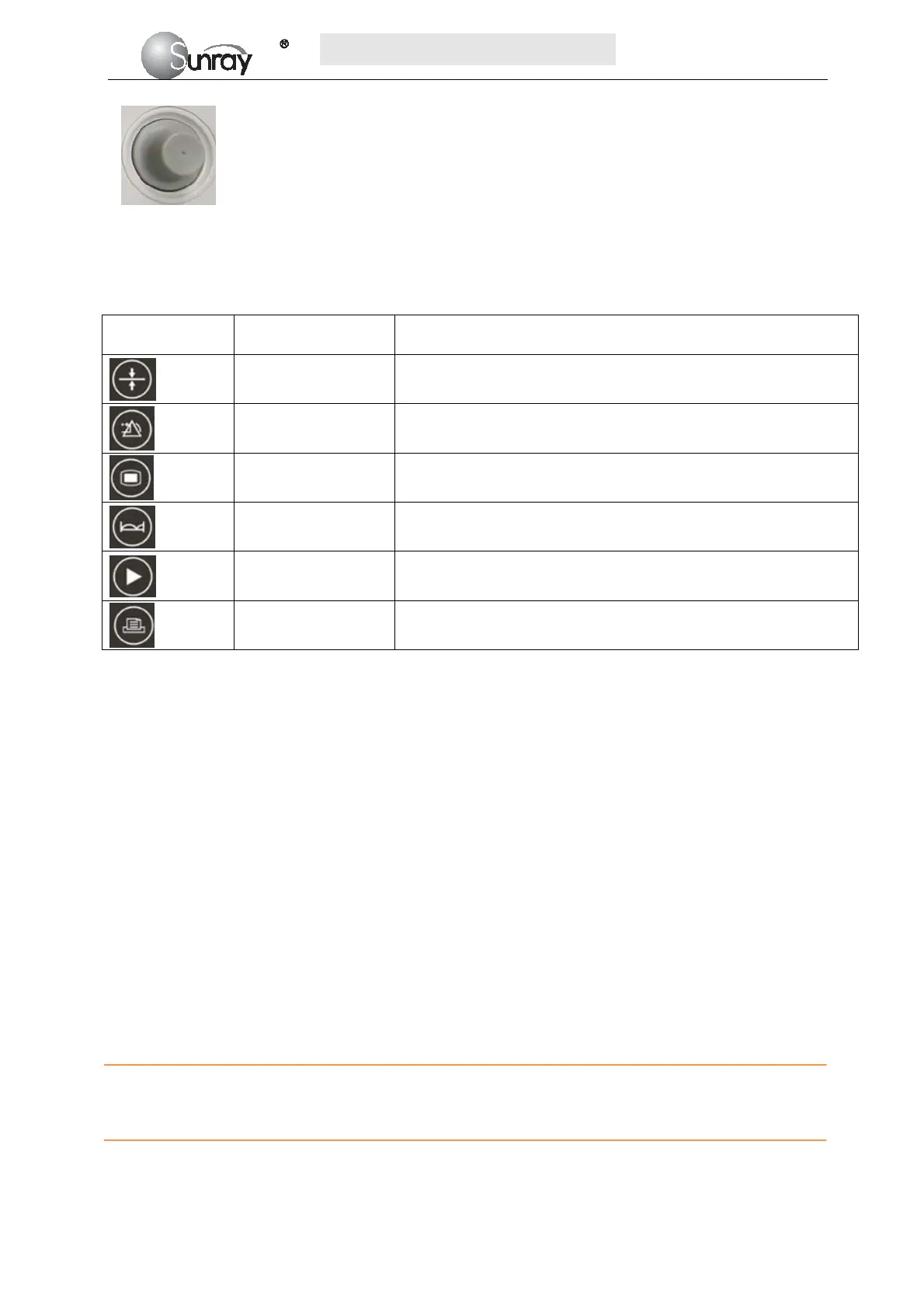

Fig. 2-6: Control Knob
The Monitor is a user-friendly device with operation conducted by a few keys on the front panel and the
control knob. Their functions are as follows.
1) Keys
Key Name Function Description
Zero key Adjust the external TOCO contractions trace/value to preset unit.
Alarm reset key Disable or enable the ALARM RESET.
Menu key Press this key to enter the main setup menu, including the Fetal
setting, System setting and so forth.
Bed key Press this key to enter the Fetal Monitoring Shortcut Menus
Start/Stop key
Start/Stop monitoring or return to the main interface. Press this key
to start monitoring or stop monitoring.
Print key Start / stop printing
Press this key to start or stop printing.
2) Control knob
Function: Adjust volume, setup and review control.
It can be pressed like other keys and be rotated clockwise or counterclockwise. All the operations on the
screen or in the menu are completed by using the control knob.
The highlighted rectangular mark on the screen that moves with the rotation of the control knob is called
“cursor”. Operations can be performed in the position on the screen where the cursor stays.
When the cursor is located on a certain item, you can press the control knob to enter its submenu or confirm
the operation. Press the control knob again, and the cursor will be able to move around on the
interface/menus.
Operation Procedure:
a) Rotate the control knob to move the cursor to the item you want;
b) Press the control knob;
c) You can rotate the control knob to select the submenu;
d) Press the control knob again, the cursor will move to the next item.
CAUTION:
This monitor is a normal medical device. Please avoid violent operations such as continuously pressing the
keys or control knob.
