Fig.8-6
8.12 Fetal Monitoring Display
8.12.1 Traces
WARNING
Due to the LCD size, resolution and system settings, the traces displayed on the screen may look different
from the recorder printout. The printout should prevail when making diagnoses.

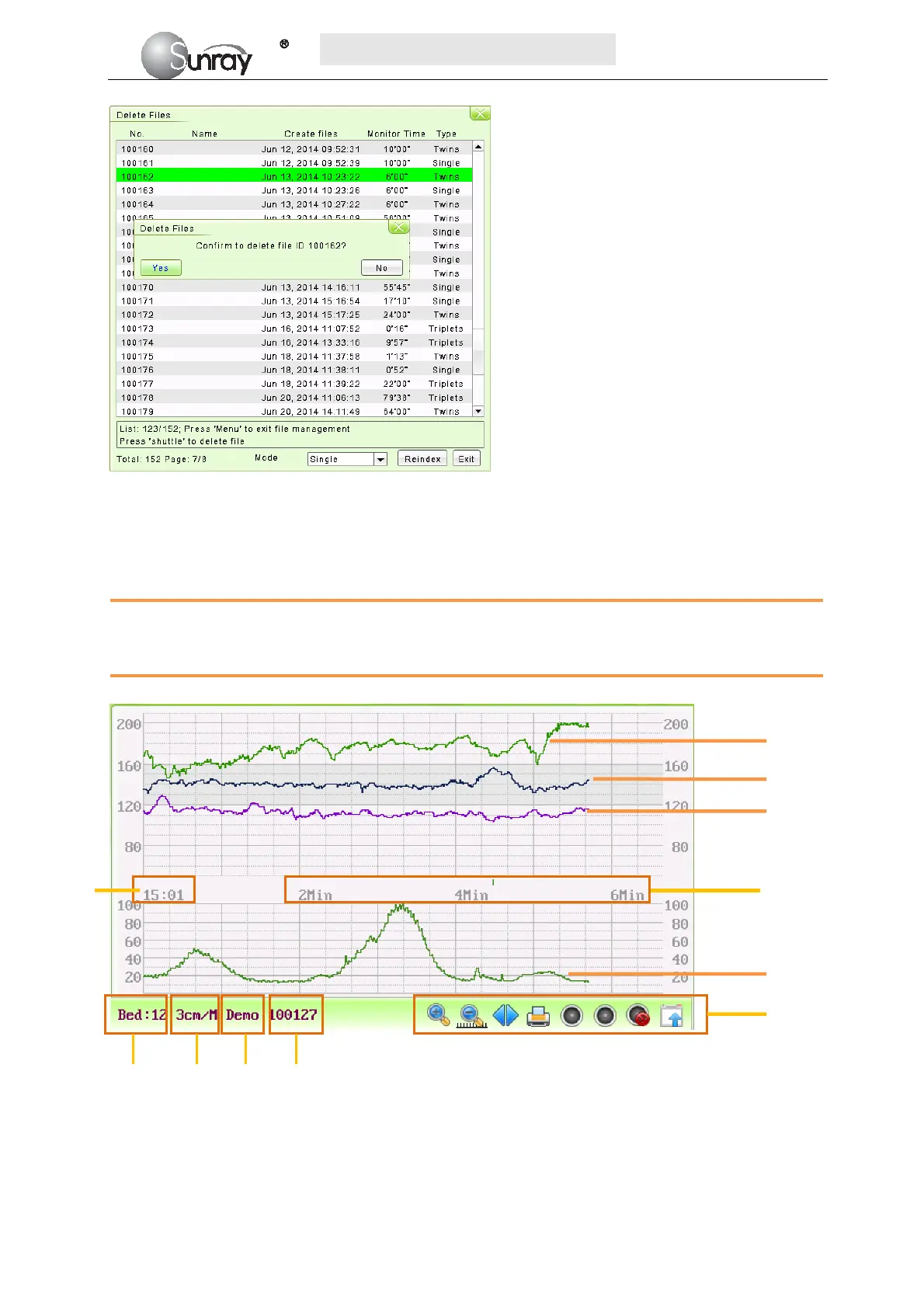

Fig. 8-7 Fetal Monitoring Traces
FHR3 Trace
FHR1 Trace
FHR2 Trace
TOCO Trace
Fetal monitoring
shortcut menus
1 2 3 4
1. Bed No.
2. FHR traces speed on the scree
3. The status of the monitoring
4. Patient’s file No.
5. The real time of the monitor
6. The relative time: the elapsed time for the current monitoring.
