Chapter 5 Printing
5.1 Function Description
Only the recorder paper provided by Sunray could be used in the built-in thermal recorder. It prints
continuous traces synchronously along with marks.
The monitor supports some other functions listed below:
Remaining time indicating: If the printing timer is set, a process indicator appears in the status
window after printing starts, with the remaining time shown in it.
Wider paper used.
When the time is up, the monitor gives three “Do” tones and flashes the indicator.
Fast printing: The recorder prints the data saved in the monitor at a high speed (up to 75mm/s).
Data Caching: When the paper drawer runs out of paper or when it is open, the recorder stops
printing. The data from this time on (at most 60 minutes) will be temporarily saved in the internal
memory. When new paper is loaded and/or the drawer is closed, the saved data will be printed out
at a high speed. When the saved trace has been printed out, the recorder switches back to continue
printing the current data at the normal speed automatically.
NOTE:
1) When the monitor is switched off, the data in the internal memory will be lost.
2) If a printing timer is set, and the time is out when the paper runs out, the CTG analysis result
may disaccord with the printout. Therefore, reload the paper in time to avoid paper lack.
FHR2 and FHR3 offset: You can set the offset of the FHR2 and FHR3 traces to separate the three
FH traces on the screen and the recorder paper. Refer to 6.2 4) FHR Trace Separation.
Print self-check: The recorder prints a test page for self checking when you select the Print Test
Page on the Printer Setting menu.
5.2 Loading Recorder paper
If the monitor is used for the first time or when the paper runs out, you should load paper.
1) Turn on the power key.
2) Press the Paper Eject Button to open the paper drawer, as shown on Fig.5-1.
3) Unfold the top page of a loading paper, place the “SUNRAY CO., LTD.” marking to the left, and
then slide the paper into the paper drawer. Pull the top page of the loading paper out of the drawer,
as shown on Fig.5-2.
4) Close the recorder cover ,as shown on Fig.5-3

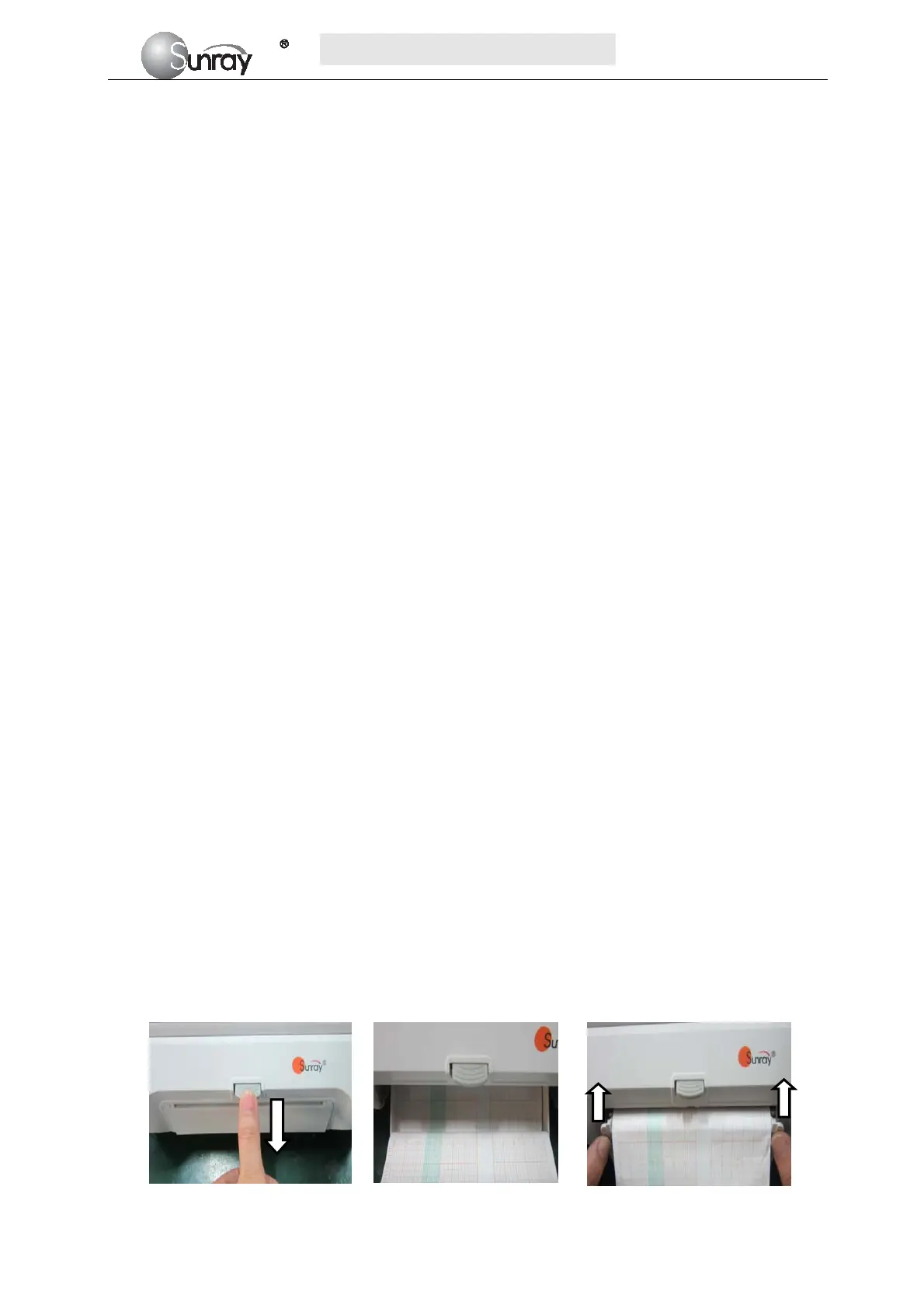

Fig.5-1 Fig.5-2 Fig.5-3
