At the end of the printing, the recorder prints the CTG analysis results of this moment on the recorder paper.
Be aware that CTG analysis result is a calculation output. It can be used as a reference to assist medical
personnel in making correct diagnosis, instead of replacing it.
NOTE:
Do not disconnect the ultrasound transducer(s) before the printing stops, otherwise the analysis results will
not be printed.
8.12.4 Numerics

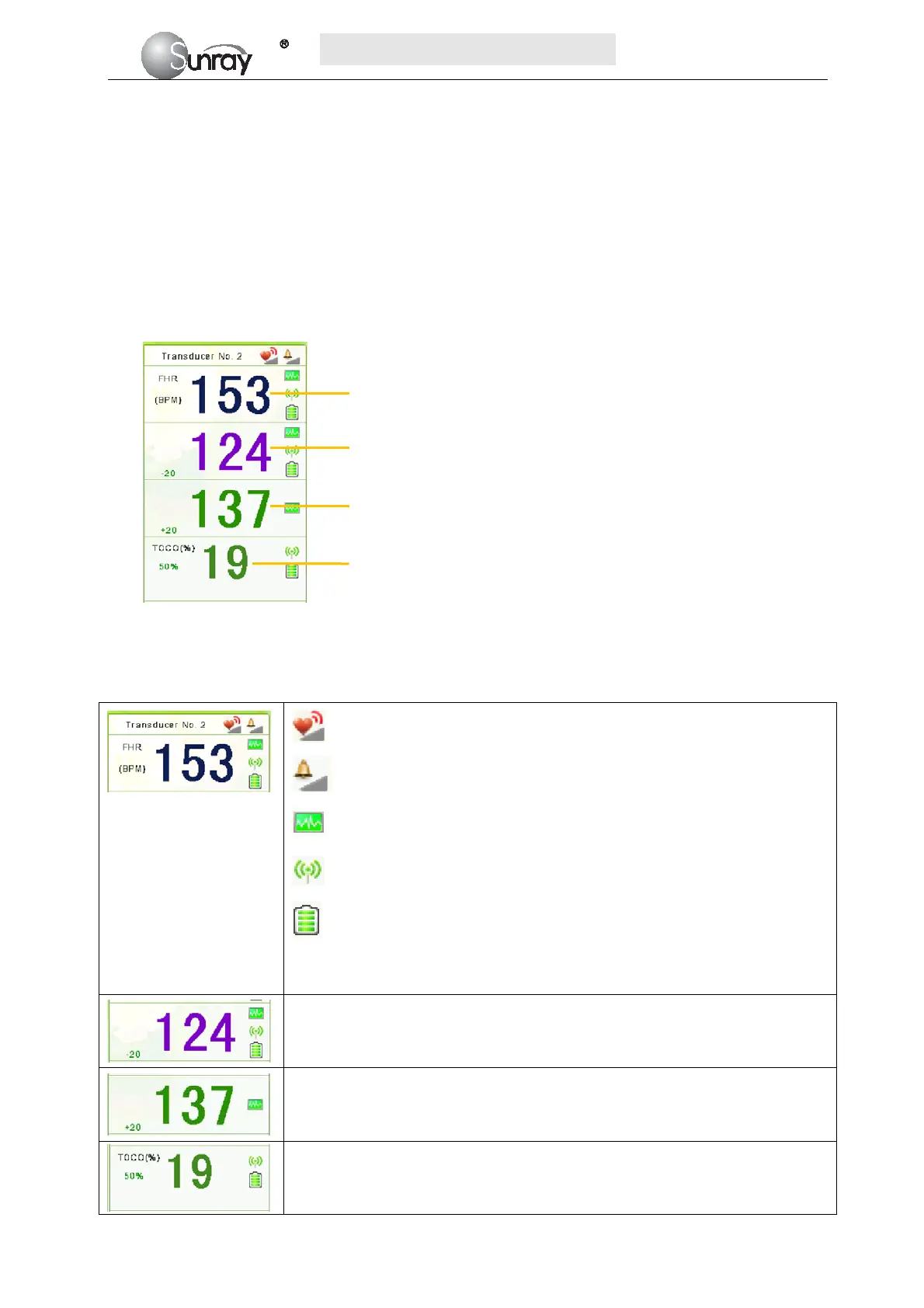

Fig. 8-9 Fetal Monitoring Numerics
The fetal monitoring values in the numeric window include FHR1 value, FHR2 value, FHR3 value and
TOCO value:
FH sound volume indicator
Audible alarm sound volume indicator
FHR signal quality. When the quality is poor, it turns into grey.
Wireless signal quality. When the quality is poor, it turns into grey
The battery charging indicator of wireless transducer.
Transducer No. 2: the No. of wireless transducers
153: FHR1 measurement numeric.
124: FHR2 measurement numeric.
137: FHR3 measurement numeric.
19: current UA measurement numeric.
50%: TOCO gain value
FHR1
FHR2
FHR3
TOCO
