PREPARATIONS BEFORE OPERATING THE
MACHINE
1) How to Supply Oil
A. Check the amount of oil left in the oil tank which is
installed on the arm and supply oil sufficiently.
B. As shown in the picture, move the feed bracket in the
direction of ″A″and supply oil into the bed oil window
through the hole on the bed cover.
C. Supply oil into the hole in the upper part of the arm.
[ Caution ]
Be sure to supply oil when operating the machine for
the first time or when the machine has not been used
for a long time.

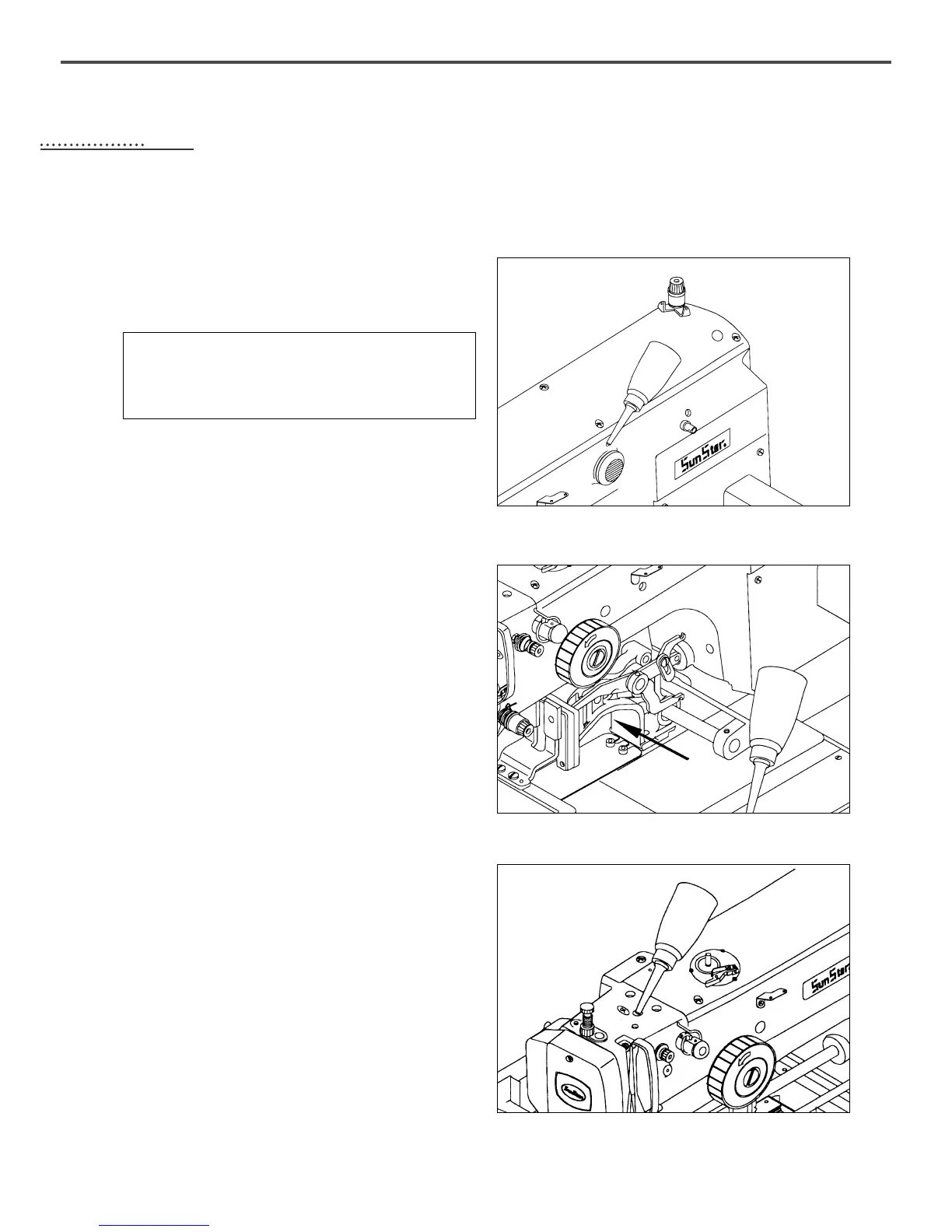

[ Fig. 18 ]
[ Fig. 19 ]
[ Fig. 20 ]
A
To Next Page
