41
B. How to Set the Y-axis Original Point
ⓐ Remove the Y- stepping motor cover.
ⓑ Move the upper feed plate to the middle of the Y-axis direction.
ⓒ Unfasten the screw and place the Y-axis original point detecting plate in the center of the original point
detecting sensor as shown in the figure. Then, tighten the screw with the L wrench.
[ Fig. 68 ]

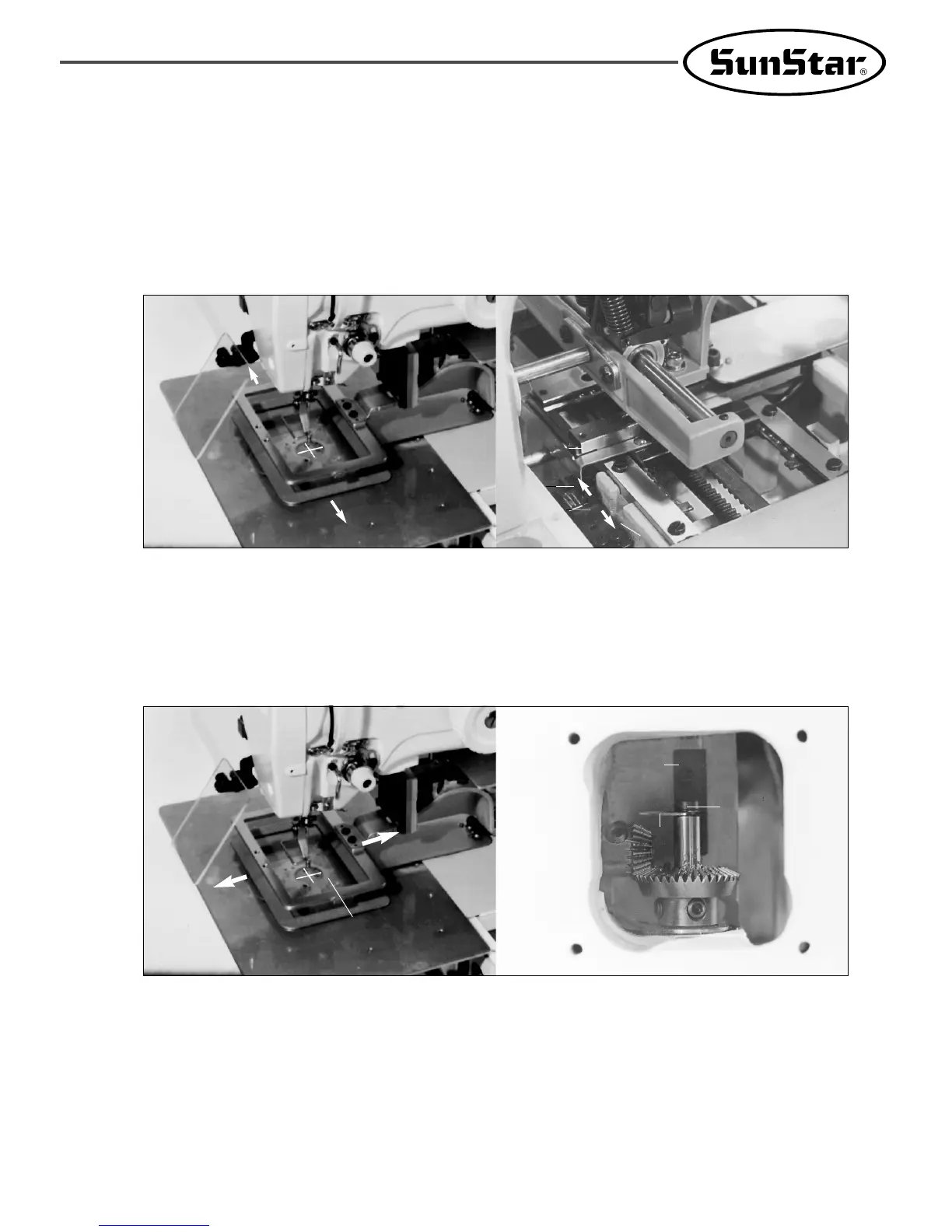

18) How to Set the Original Point of X-Y
A. How to set the original point of the X-axis
ⓐ Remove the lower feed plate, X-fixed cover, and transport cover.
ⓑ Place the upper feed plate center in the middle of the X-axis direction.
ⓒ Unfasten the two screws of the X-axis original point detecting sensor supporting plate and have the X-axis
original point detecting plate on the X-Y transfer system placed in the center of the sensor as shown in the
picture. Then, tighten the screw with the + driver.
[ Fig. 67 ]
Screw
Sensor
Sensor
Support
Plate
Original Point
detecting plate
Upper Feed Plate
Screw
Sensor
Sensor Plate
To Next Page
