INSTALLATION OF THE MACHINE
1) Environment for Machine Installation
A. Do not use the machine where the voltage is over regular voltage ±10% to prevent accidents.
B. Check the indicated pressure of the devices that use atmospheric pressure such as the air cylinder to prevent any
accidents from occurring.
C. For safe operation of the machine, use the machine under the following conditions.
Surrounding Temperature During Operation : 5℃~40℃
Surrounding Temperature During Maintenance : -10℃~60℃
D. Humidity : Between 20~80%(Relative humidity)
2) Electric Installment Conditions
A. Power Voltage
·The power voltage must be between regular voltage ±10%.
·The frequency of the power should be regular frequency (50/60HZ)±1%.
B. Electromagnetic Wave Noise
Use separate power with strong magnetics or high frequency products, and do not leave the machine near them.
C. Use low voltage when supplements or accessories are being adhered.
D. Be careful not to have water or coffee be spilled into the Controller and Motor.
E. Do not drop the Controller or Motor.
3) How to Install the Table Safety
B. Stick the bed cushion rubber onto the table.
A. Fix the oil tub holder ①, oil holder ②, control box ③
and main switch ④ on the table.

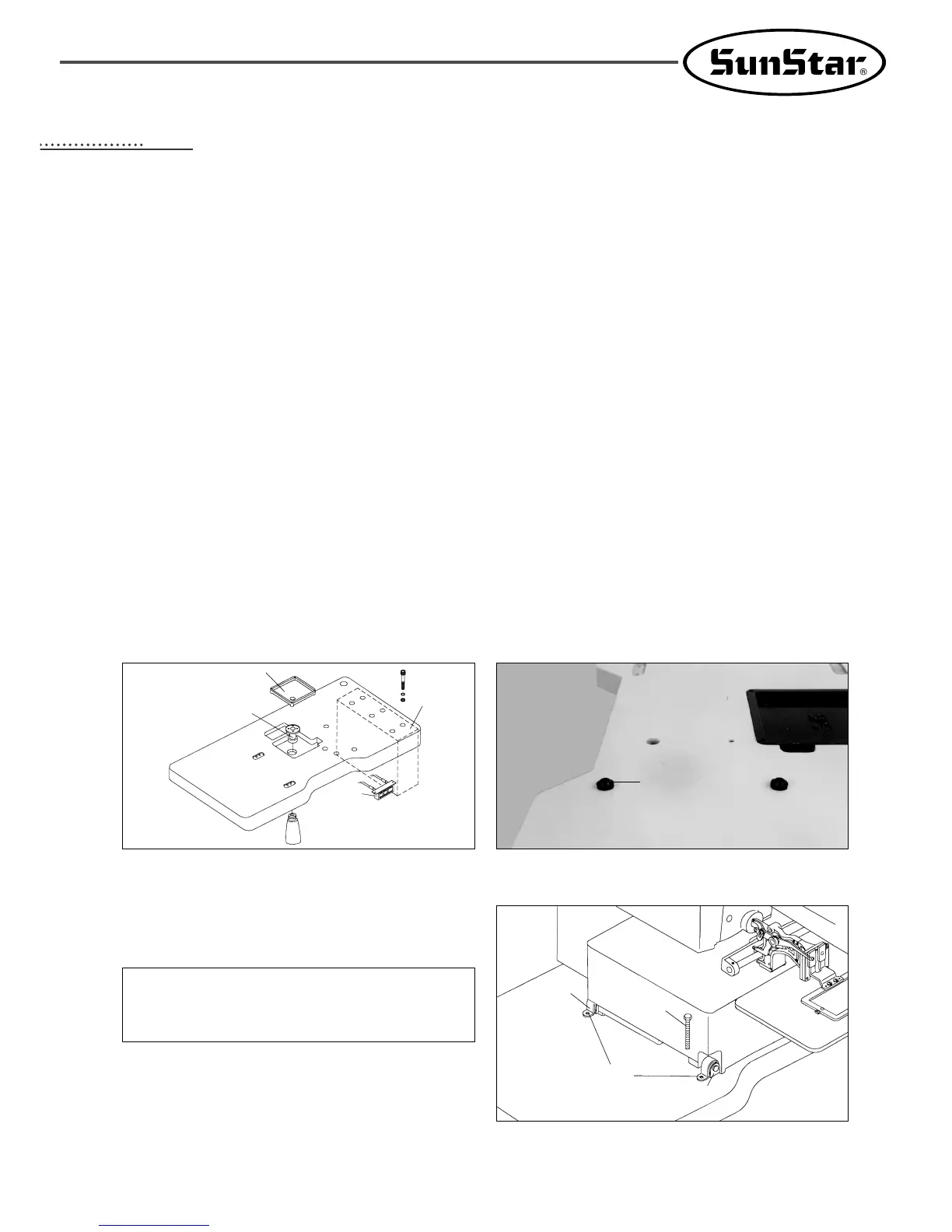

[ Fig. 1 ] [ Fig. 2 ]
C. Add the hinge metal and hinge rubber to the bed.
Then insert the fixing bolt into the hinge metal hole of
point ① and fix the table as shown in the picture.
[ Fig. 3 ]
[ Danger ]
The machine should be carried by more 2 persons for
safety.
Cushion Rubber
Bolt
Hinge
Hinge Rubber
①
①
②
③
④
