14

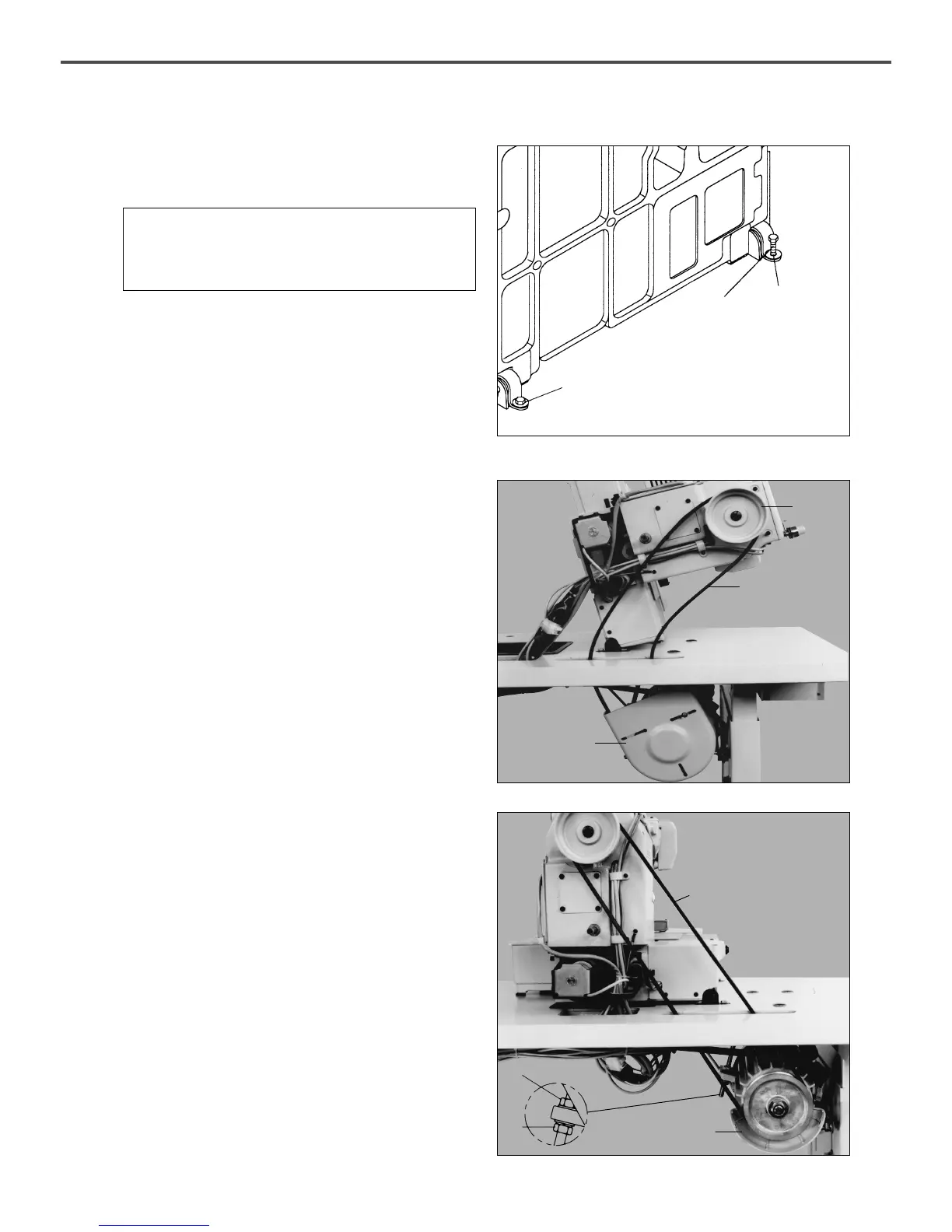

D. Stand the machine as shown in the picture, and then
fix the machine on the table after inserting the fixing
bolts into the hinge metal holes of point ①.
[ Fig. 4 ]
[ Danger ]
Since the machine is not perfectly installed on the table,
extreme care is needed when you make the machine
stand up not to have any accident occurred.
Bolt
①
①
E. Put the “V”-Belt in between the pulley and the motor
while the machine is standing as in the picture.
(A Series)
[ Fig. 5 ]
Pulley
V-Belt
Motor Cover
[ Fig. 6 ]
F. After connecting the “V”-Belt, if the fixing nuts ① and
② are vertically unfastened sufficiently tension
occurs in belt “D”due to the weight of motor “C”.
At this point, first screw in fixing nut ①, then nut ② in
fixing screw tightly.(A Series)
D
C
①
②
To Next Page
