B. How to adjust the height of the slider base
Unfasten the slider base screw ① and adjust the
slider base to the appropriate height. Then tighten
the screw back on firmly.
C. How to adjust the height of link plate B
Unfasten link plate B screw ② and adjust the
appropriate height. Then tighten the screw back on
firmly.
Slider Base
Presser Plate
Link B
①
②

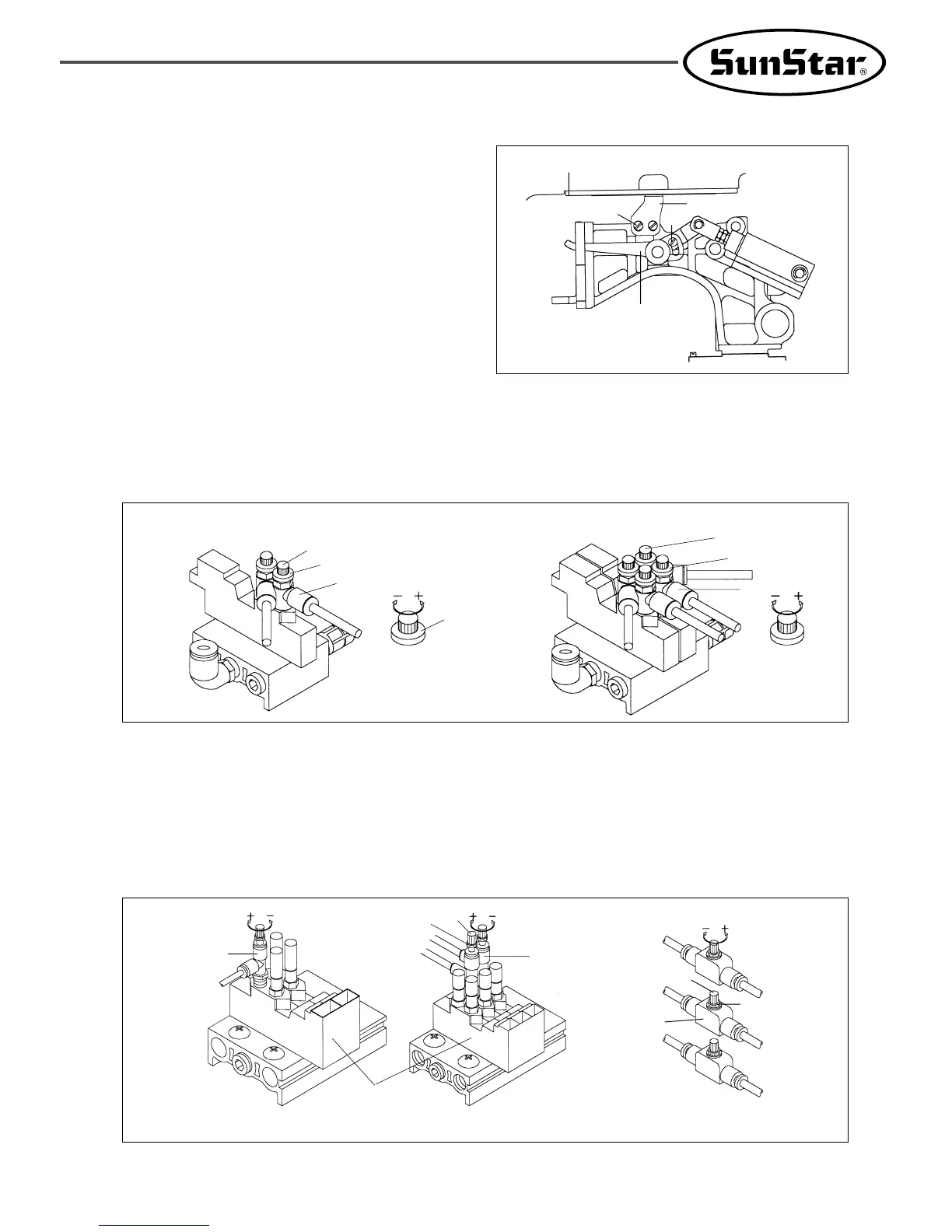

5) How to Adjust the Up and Down Movement of the Upper Feed Plate
A. SPS/B(A)-1306(1507, 1310)--20, 22
When the speed controller knob ②, which is attached on the bottom of the table, is turned clockwise, the speed
decreases. When the speed controller knob ② is turned counter-clock wise, the speed increases. So fasten the
nut ③ after adjusting the appropriate speed.
B. SPS/B(A)-1306(1507)--21, 22-1
ⓐ When the pressure decrease valve knob ①, which is attached on the bottom of the table, is turned clockwise,
the go-up speed of upper feed plate & supporting pressure increase. When the knob ② is turned counter-
clockwise, the speed and pressure decrease. So fasten the nut ③ after adjusting the appropriate speed and
pressure [Fig. ]
ⓑ When the speed controller knob ④ is turned clockwise, the come-down speed decrease. When the knob ⑤ is
turned counter-clockwise, the come-down speed increases. So fasten the nut ⑥ after adjusting the appropriate
speed [Fig. ].
[ Fig. 80 ]
[ Fig. 79 ]
③
[ SPS/B(A)-1306(1507, 1310)--20 ] [ SPS/B(A)-1306(1507, 1310)--22 ]
②
③
①
②
③
①
[ SPS/B(A)-1306(1507)--21 ]
[ Fig. ] [ Fig. ]
[ SPS/B(A)-1306(1507)--22-1 ]
Solenoid Valve
②
③
①
①
[ Fig. 81 ]
⑤
⑥
④
