36

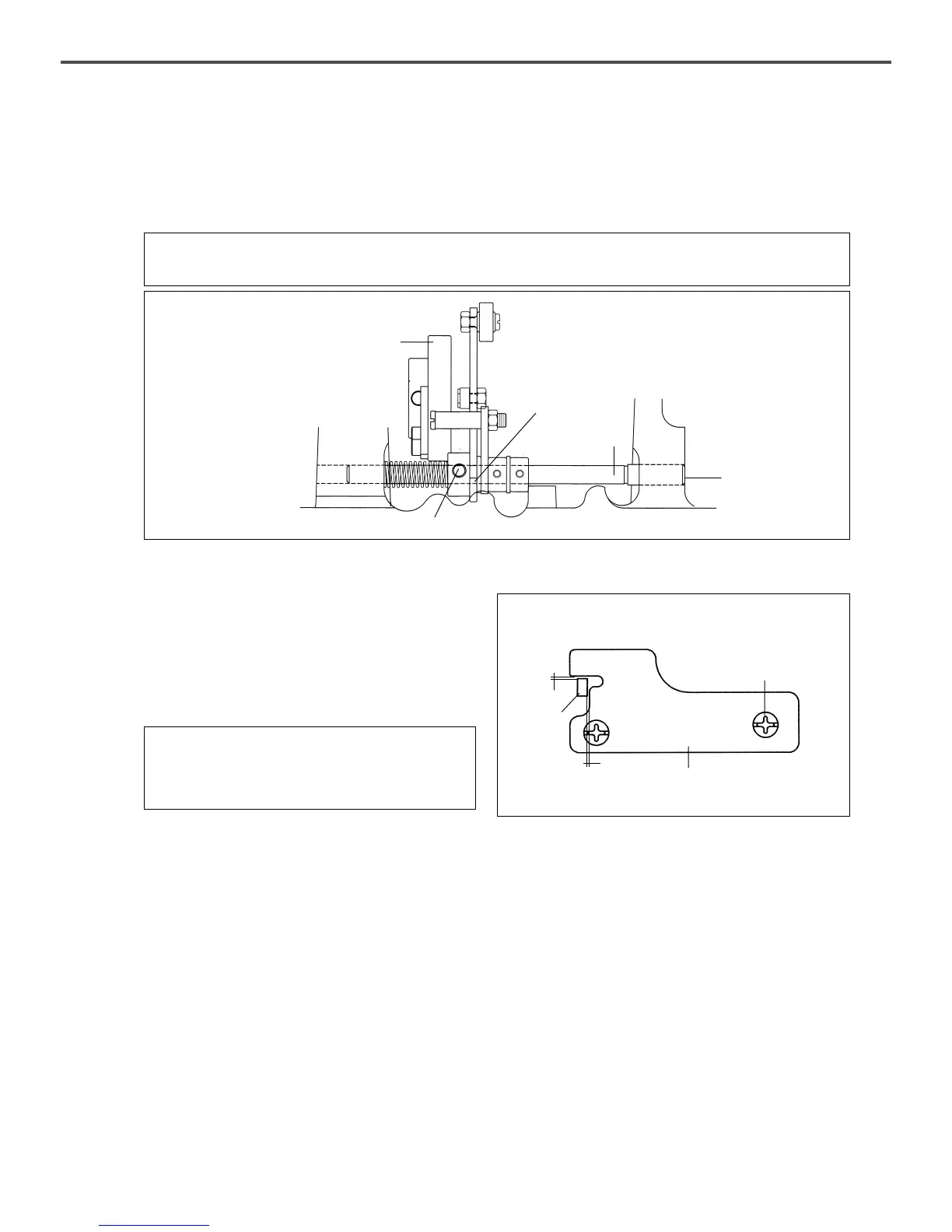

D. Setting the Link Stopper in Place
ⓐ Unfasten the trimming drive link stopper screw
while trimming is not operated and have the
trimming drive link and the trimming drive link
stopper notch 0.3mm apart from each other.
ⓑ Tighten the screw.
[ Fig. 54 ]
[ Caution ]
If the link stopper is not set in the right position,
trimming may not be operated correctly and the
machine may be struck.
→
→
0.3mm
Thread
Trimmer
Driving
Link
Screw
Thread Trimmer Driving
Link Stopper
→
→
0.3mm
C. Setting the trimming shaft in place
ⓐ Unfasten the trimming drive link screw and the trimming shaft collar screw.
ⓑ Make the trimming shaft tip accord with part of the arm.
ⓒ Tighten the screws.
[ Fig. 53 ]
[ Caution ]
If the position is not adjusted appropriately, trimming may not be operated correctly or the machine may be lock.
Thread
Trimmer Shaft
Thread Trimmer Cam
Screw
Thread Trimming
Driving Link
To Next Page
