C. SPS/B(A)-1306(1507, 1310)--22
ⓐ Check the parameter, related to general sewing (function No.60), is set to ‘2’. If not, please set the parameter
to ‘2’. (Refer to 7.29) Change of parameter related to general sewing.
ⓑ The pedal switch has three pedals, the right one ① moves the right upper feed plate, the intermediate one ②
moves the left upper feed plate and the left one ③ makes the sewing machine start.
ⓒ Application
① If you step on the inermediate pedal ①, the right upper feed plate descends to hold the sewing materials.
(When you step on the pedal ① again, the right upper feed plate ascends to the initial position.)
② Whe you step on the left pedal ②, the left upper feed plate descends to hold the sewing material.
(When you step on the pedal ② again, the left upper feed plate ascends to the initial position.)
③ When both of the upper feed plates are descended.
If you step on the left pedal ③, the machine starts.

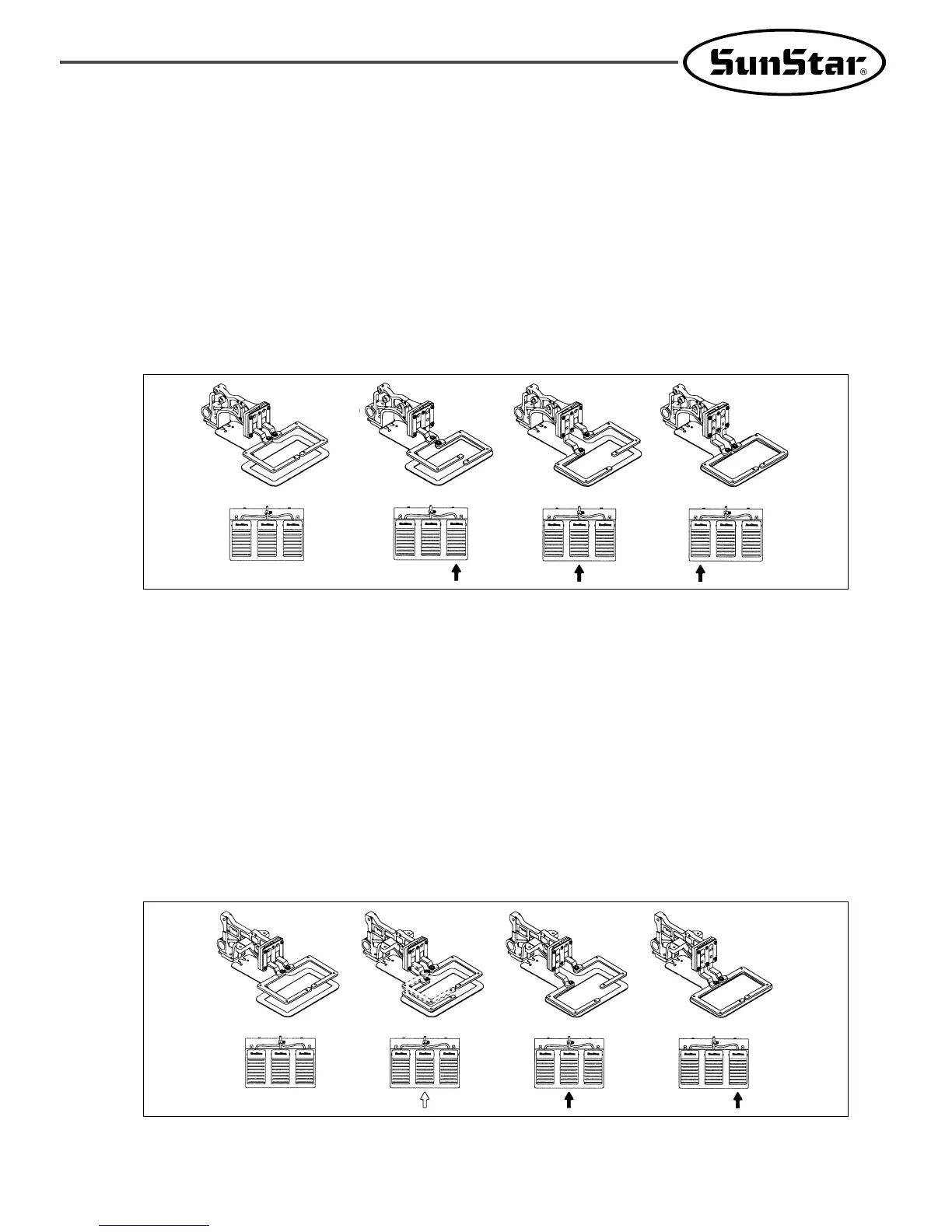

[ Fig. 84 ]
②①③②①③②①③②①③
D. SPS/B(A)-1306(1507)--22-1
ⓐ Check the parameter, related to general sewing (function No.60) is set to ‘5’. If not please set the parameter
to ‘5’. (Refer to 7.29) Change of parameter related to general sewing.
ⓑ The pedal switch has three pedals, the right one ① moves the right upper feed plate, the intermediate one ②
moves the left upper feed plate and the left one ③ makes the sewing machine start.
ⓒ Application
① The inter mediate pedal ② has two step switch, if you step on the first step, the left upper feed plate
descends to the inermediate position.
② When the inermediate pedal ② is fully stepped, the left upper feed plate fully descends to the sewing
material. (If you step off the pedal ①, the left upper feed plate ascends to the initial positon.)
③ Whe you step on the right pedal ①, the right upper feed plate descends to hold the sewing material.
(If you step on the right pedal again, the right upper feed plate ascends to the initial position)
④ When both of the upper feed plates are descended, if you step on the left pedal ③, the machine starts.
[ Fig. 85 ]
②①③②①③②①③②①③
