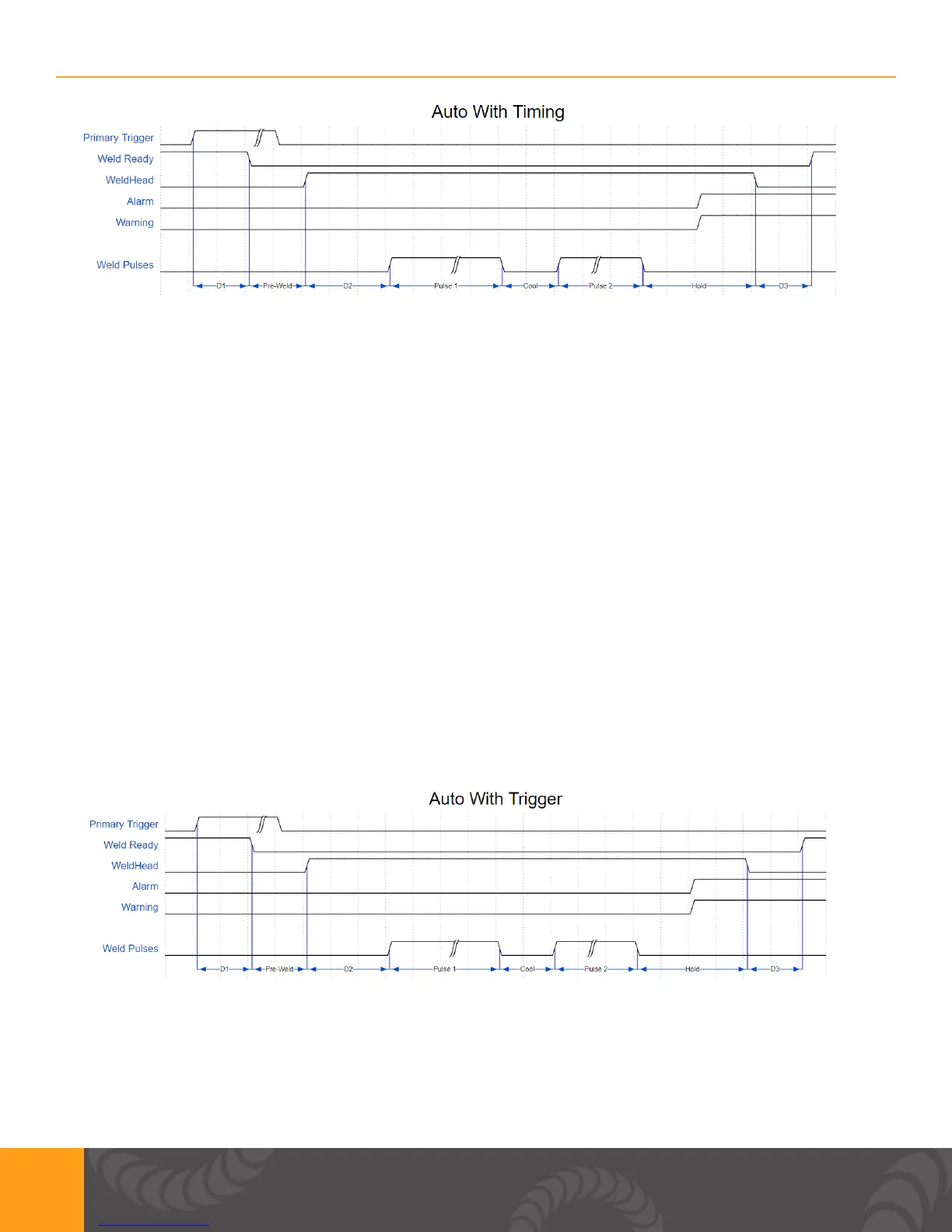

D1: A delay that occurs from the time primary trigger is triggered and the weld ready signal changes
to a low value. Typical time for this is between 1 and 50 milliseconds.
Pre-Weld: A user dened delay that happens before the signal to the weld head is sent. Can be set
between 1 and 10000 milliseconds.
Squeeze Time: A user dened delay that occurs from the time the weld head signal is sent and the
beginning of pulse 1.
Pulse 1: The duration of this delay is dependent on the energy programmed on welder for pulse 1.
Cool: The duration of this delay is dependent on the time programmed on welder for time between
pulses. User can select between 1 and 100 milliseconds. This time will be ignored if either pulse is
disabled.
Pulse 2: The duration of this delay is dependent on the energy programmed on welder for pulse 2.
Hold Time: A user dened delay that occurs from the time pulse 2 ends and the weld head begins to
return to home position.
D2: After this delay the Weld Ready signal will return to a high position. This delay will depend on the
time needed to charge to the desired energy, but will typically be between 50 and 5000 milliseconds
minus the length of the hold time.
D1: A delay that occurs from the time primary trigger is triggered and the weld ready signal changes
to a low value. Typical time for this is between 1 and 50 milliseconds.
Pre-Weld: A user dened delay that happens before the signal to the weld head is sent. Can be set
between 1 and 10000 milliseconds.
