21

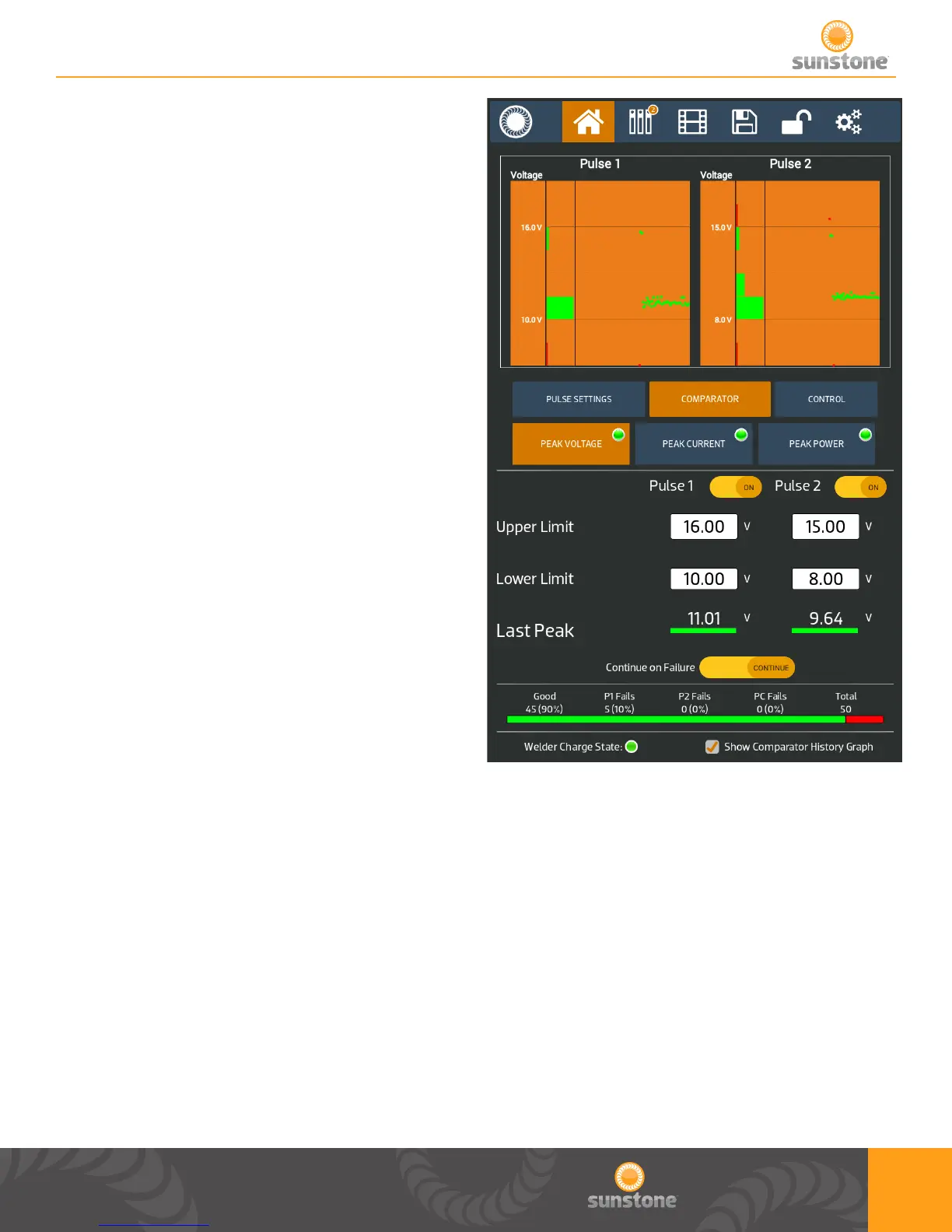

2nd Comparator
1. When this box is checked the histogram will
appear instead of the single previous weld
result.
2. A histogram of previous weld results.
a. It shows the upper and lower limit.
b. Shows the median line between upper and
lower limit.
c. Green dots are passed results and red dots
are failed results
1.
2.
a
c
b
a
