Page | 23
SUNSYNK MAX | User Manual

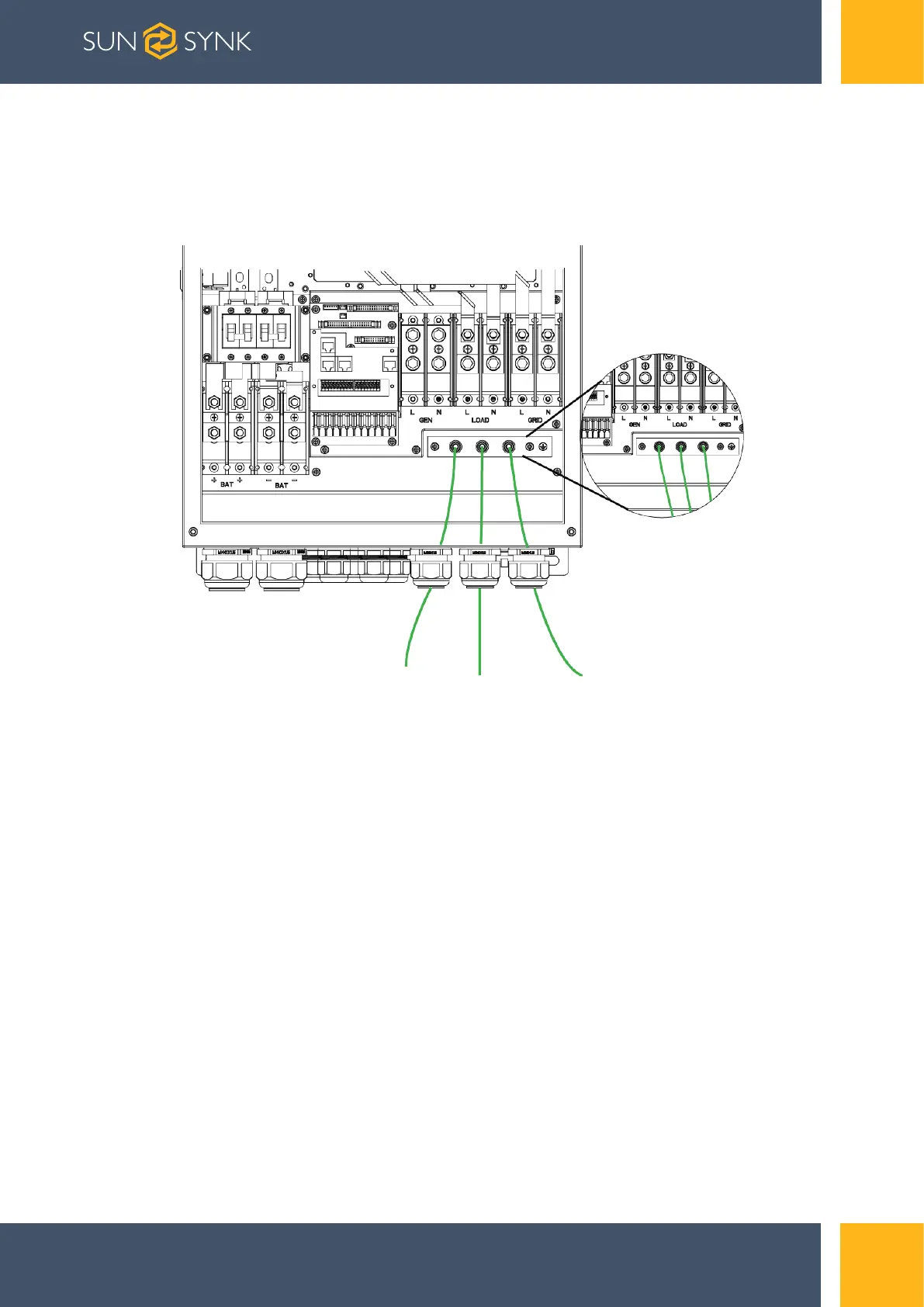

4.11. Earth Connection (MANDATORY)
An Earth Cable shall be connected to earth plate on the grid side in order to prevent electric
shock if the original protective conductor fails.
All neutrals can be linked together to maintain the neutral bond. When Neural Earth bond is
required for ‘Off-grid’ operation, then it has to be removed on ‘Grid-Tied’ operation.
If an Earth Bond is required between neutral and earth and your system is a hybrid system
then you can have a permanent earth wire since this can cause faults with an RCD before the
inverter.
Since the inverter is a true hybrid then the bond must only be made when the inverter is oper-
ating in Islanding Mode. To accommodate this, Sunsynk provides an AC output, which is con-
nected to the A/T/S connections whenever the inverter is running on Island Mode. Therefore,
you can simply connect the coil of an AC relay to the ATS 240 connections. Next, you need to
select Signal Island Mode on the battery charge menu (click on the gear icon -> battery icon),
as shown in the figure below.
