5.2. Switching ON/OFF
Once the inverter has been correctly installed and the batteries have been connected, press the
ON/OFF button (located on the left side of the case) to activate the system.
When the system is connected without a battery but connected with either PV or grid and the
ON/OFF button is switched off, the LCD will still illuminate (display will show off). In this con-
dition, when switching on the ON/OFF button and selecting ‘No Battery’, the system can still
work.
5.3. Home Page

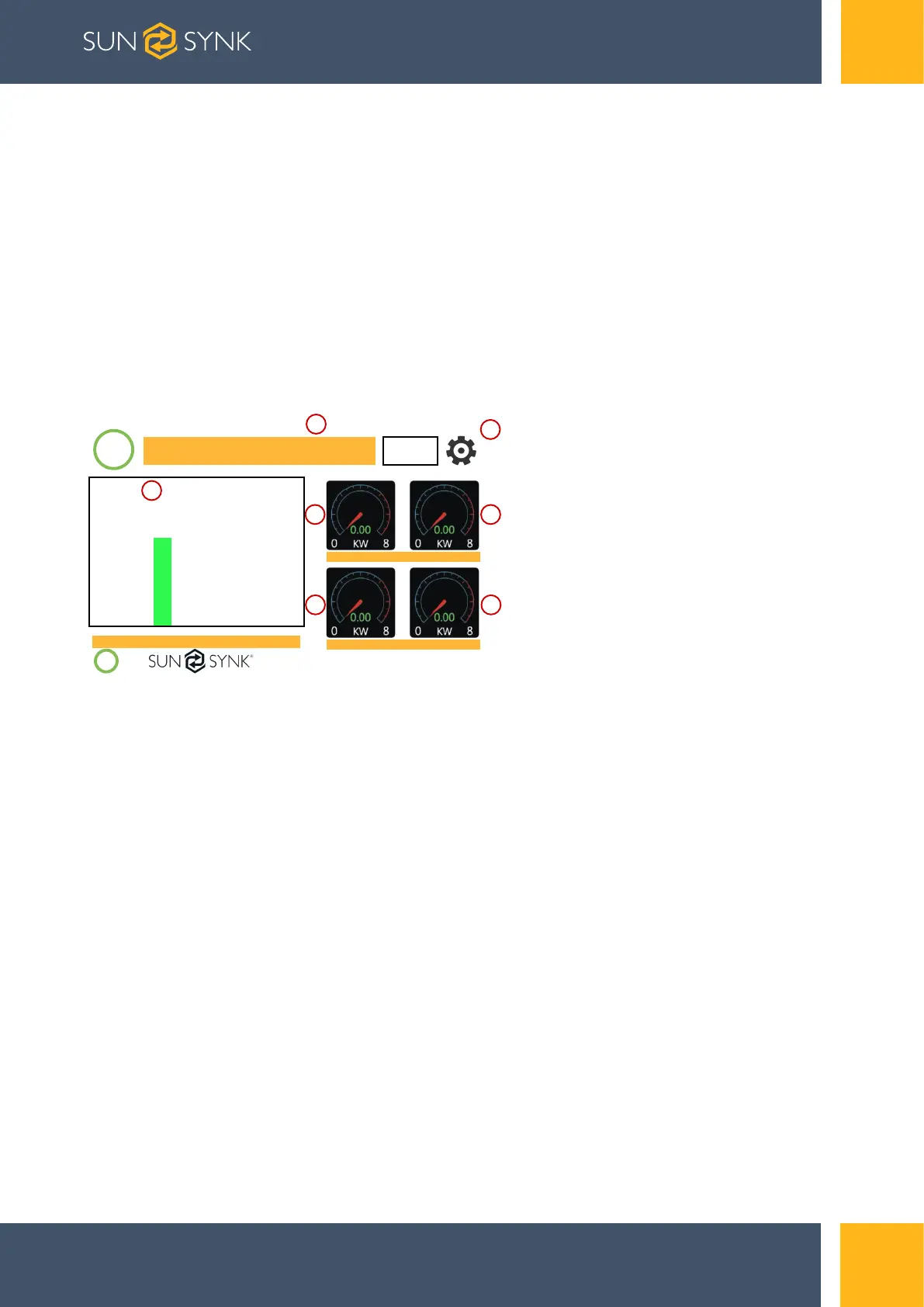

Press the Esc button any page to access the home page:
0.0
kWh
0.0
kWh
0.0
kWh
0.0
kWh
0.0
kWh
0.0
kWh
85%
BATTERY IN/OUT MPPT. GRID.
SOLAR/TURBINE AC load
Battery Grid
1. Customer name
2. Access settings menu page
3. Access solar history
4. Access system status page
5. Access system status page
6. Access grid history
7. Access system flow page
What this page displays:
Total daily power into the battery (kWh).
Total daily power out of the battery (kWh).
SOC (State of charge of the battery) (%).
Total daily solar power produced in (kWh).
Total hourly usage of the generator (Time).
Total daily power sold to the grid (kWh).
Total daily power bought from the grid (kWh).
Real-time solar power in (kW).
Real-time load power in (kW).
Real-time battery charge power in (kW).
Real-time grid power in (kW).
Serial number.
Time date.
Fault condition.
Access stats pages.
Access status page.
Access fault diagnostic page.
To Next Page
