THREE PHASE HI 8~12kW | Installer Manual15
If children under 10 years old may approach the unit, take preventive measures so they cannot reach
and touch the unit.
Install the indoor unit on the wall where the oor height is higher than 1600mm.

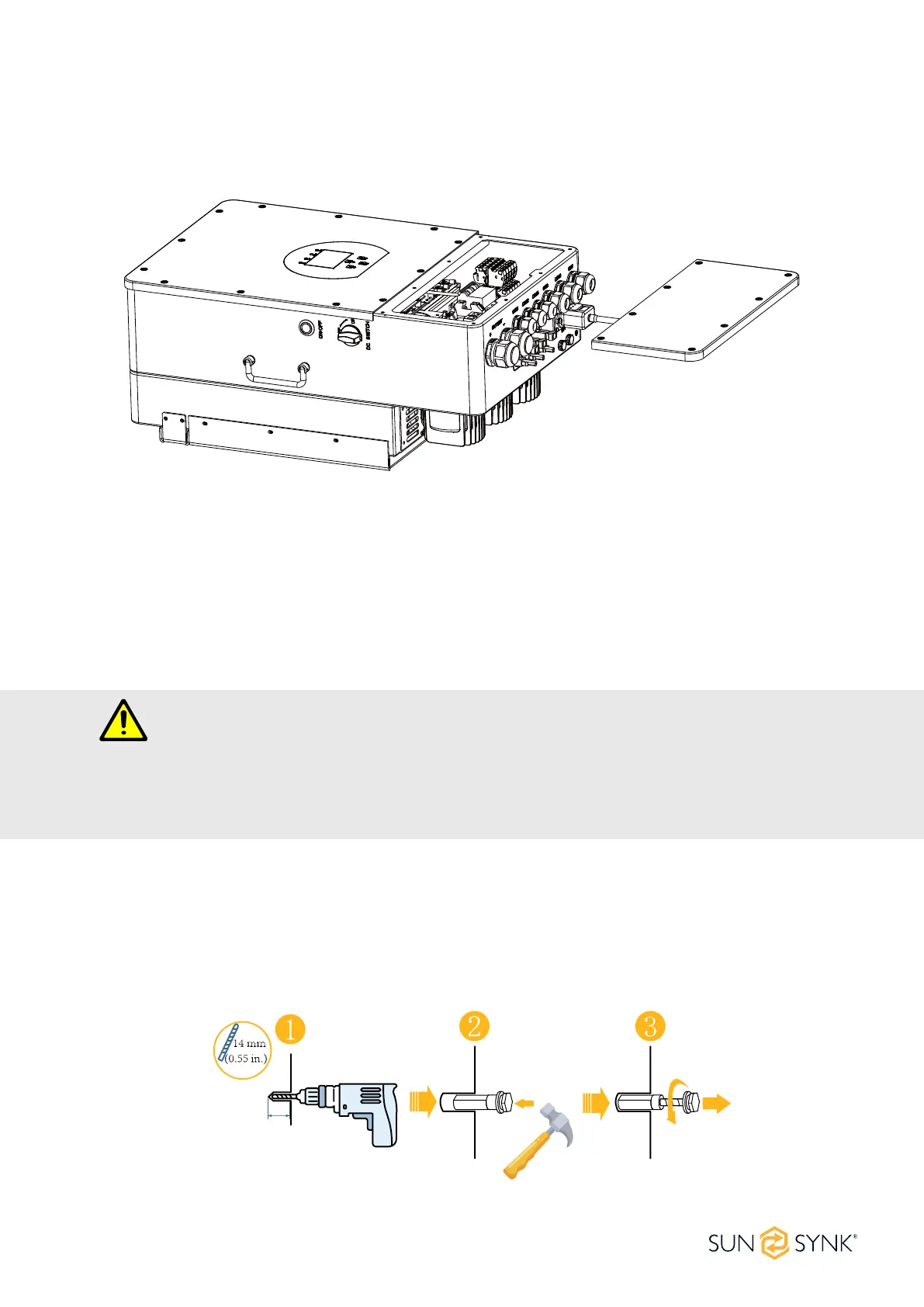

Before connecting all wires, please take the metal cover o, removing the screws as shown below:
Mounting the Inverter
Select installation locations that are adequate to support the weight of the converter.
Install this inverter at eye level to allow the LCD to be read anytime.
To ensure optimal operation, an appropriate ambient temperature is between -40 and 60°C.
Be sure to keep other objects and surfaces, as shown in the gure to guarantee sucient heat dissipa-
tion and have enough space to remove wires.
Choose the recommended drill head(as shown below) to drill 4 holes on the wall, 82-90mm deep.
1. Use a proper hammer to t the expansion bolt into the holes.
2. Carry the inverter and hold it, ensure the hanger aims at the expansion bolt, and x the inverter on the
wall.
3. Fasten the screw head of the expansion bolt to nish the mounting.
WARNING
Risk of injury (Heavy Object).
Remember that this inverter is heavy, so users must carefully handle the unit during installation,
especially when mounting or removing it from a wall.
82-90mm
[(3,23in) to (3,54in)]
