SunSynk SYNK-8K-SG04LP3 - Three Phase Parallel Connection

THREE PHASE HI 8~12kW | Installer Manual30

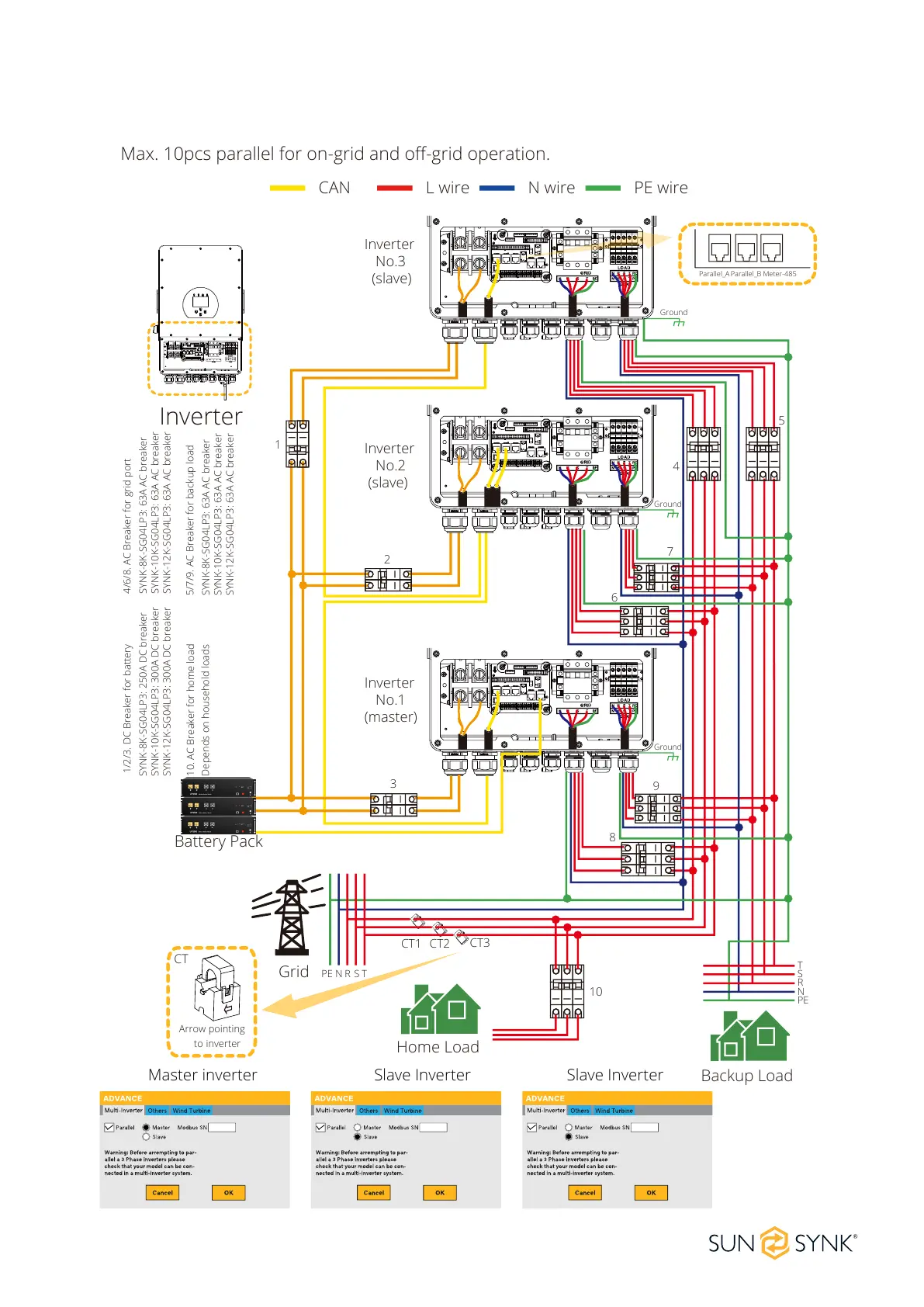

Three Phase Parallel Connection
L wireCAN N wire PE wire
Inverter
Master inverter Slave Inverter Slave Inverter
Parallel_A Parallel_B Meter-485
Grid
CT1 CT2
CT3
Backup Load
Inverter
No.3
(slave)
Inverter
No.2
(slave)
Inverter
No.1
(master)
Ground
Ground
Ground
2
Battery Pack
Home Load
R S TNPE
R
S
T
N
PE
CT
Arrow pointing
to inverter
1/2/3. DC Breaker for battery SYNK-8K-SG04LP3: 250A DC breaker SYNK-10K-SG04LP3: 300A DC breaker SYNK-12K-SG04LP3: 300A DC breaker
4/6/8. AC Breaker for grid port SYNK-8K-SG04LP3: 63A AC breaker SYNK-10K-SG04LP3: 63A AC breaker SYNK-12K-SG04LP3: 63A AC breaker
5/7/9. AC Breaker for backup load SYNK-8K-SG04LP3: 63A AC breaker SYNK-10K-SG04LP3: 63A AC breaker SYNK-12K-SG04LP3: 63A AC breaker
10. AC Breaker for home load Depends on household loads
Max. 10pcs parallel for on-grid and o-grid operation.
1
3
8
9
6
7
4
5
10
01 02 03
