PRODUCT INTRODUCTION
The Sunsynk Three-Phase Hybrid Inverter is a multifunctional inverter, combining functions of inverter, solar
charger and battery charger to oer uninterruptible power support with portable size. Its comprehensive
LCD display oers user congurable and easy accessible button operation such as battery charging, AC/solar
charging, and acceptable input voltage based on dierent applications.
System Overview

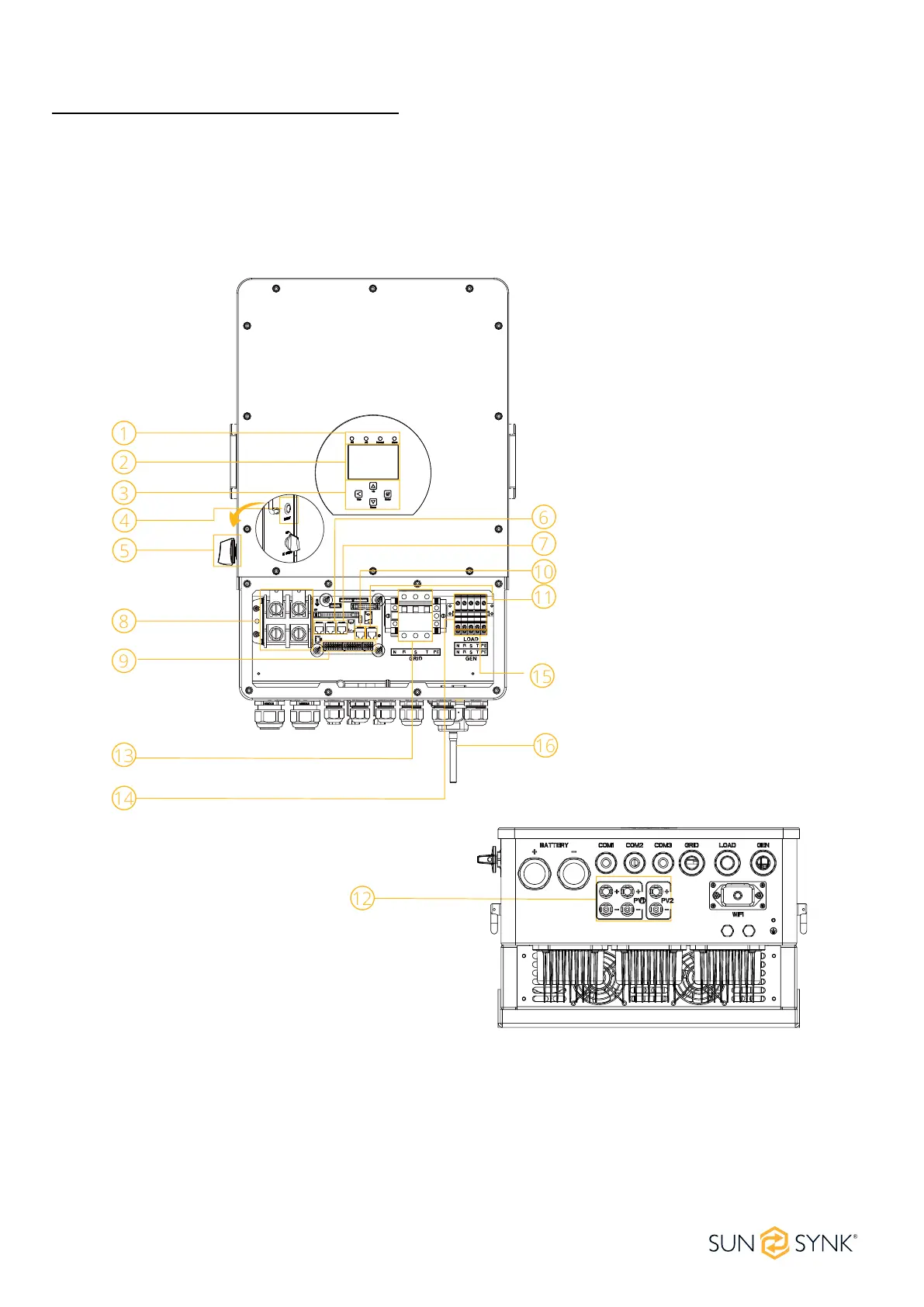

1. Inverter Indicators 7. Meter-485 port 13. Grid
2. LCD Display 8. Battery input connectors 14. Load
3. Function Buttons 9. Function Port 15. Generator input
4. Power on/o button 10. Modbus Port 16. Wi-Fi Interface
5. DC switch 11. BMS Port
6. Parallel port 12. PV input with two MPPT
1
2
3
4
5
8
9
12
13
14
15
16
7
6
10
11
