THREE PHASE HI 8~12kW | Installer Manual53
Grid Mode: General Standard - for example, EN50549_CZ_PPDS_L16A, NRS097, G98/G99. Please follow
your local grid code and choose the corresponding grid standard from the drop-down menu. If you
cannot nd your local grid standard from this menu, please manually input the grid settings as per
instructions below.
G100 - Please ensure the inverter is set to G99/G100 for compliance to G100 regulations.
Grid Level: There are several voltage levels for the inverter output voltage in o-grid mode. LN:230VAC,
LL:400VAC, LN:240VAC LL:420VAC, LN:120VAC, LL:208VAC, LN:133VAC, LL:230VAC.

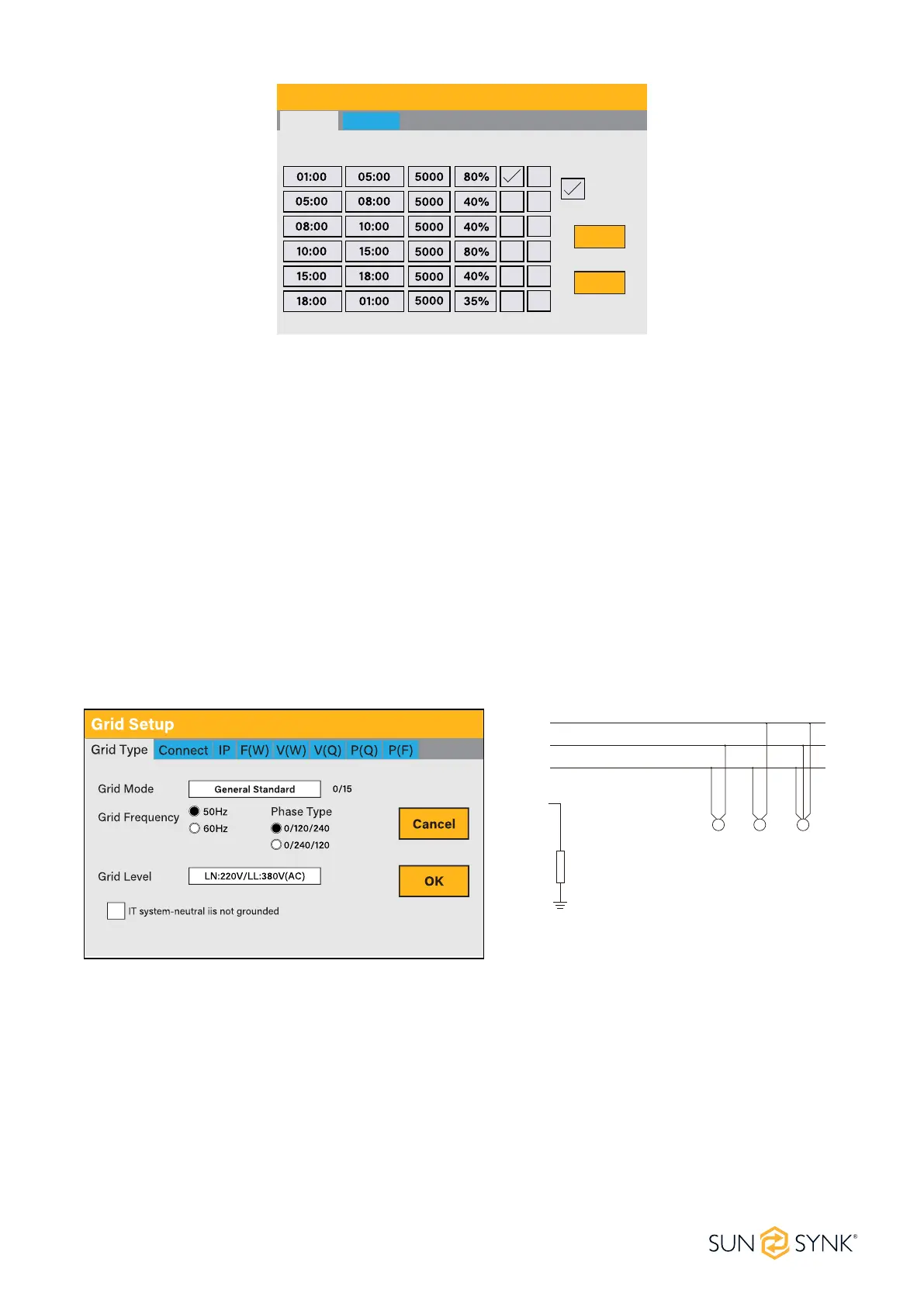

What this page displays:
Grid Supply Page
In the Settings menu, click on the GRID icon.
U
V
W
220VAC
Rz
220VAC 220VAC
N
Rz: Large resistance ground resistor. Or the
system doesn't have a Neutral line.
Example:
During 01:00-05:00, when the battery SOC is lower than 80%, it will use the grid to charge the battery until
the battery SOC reaches 80%.
During 05:00-08:00 and 08:00-10:00, when battery SOC is higher than 40%, the hybrid inverter will discharge
the battery until the SOC reaches 40%.
During 10:00-15:00, when the battery SOC is higher than 80%, the hybrid inverter will discharge the battery
until the SOC reaches 80%.
During 15:00-18:00, when the battery SOC is higher than 40%, the hybrid inverter will discharge the battery
until the SOC reaches 40%.
During 18:00-01:00, when the battery SOC is higher than 35%, the hybrid inverter will discharge the battery
until the SOC reaches 35%.
