THREE PHASE HI 8~12kW | Installer Manual66

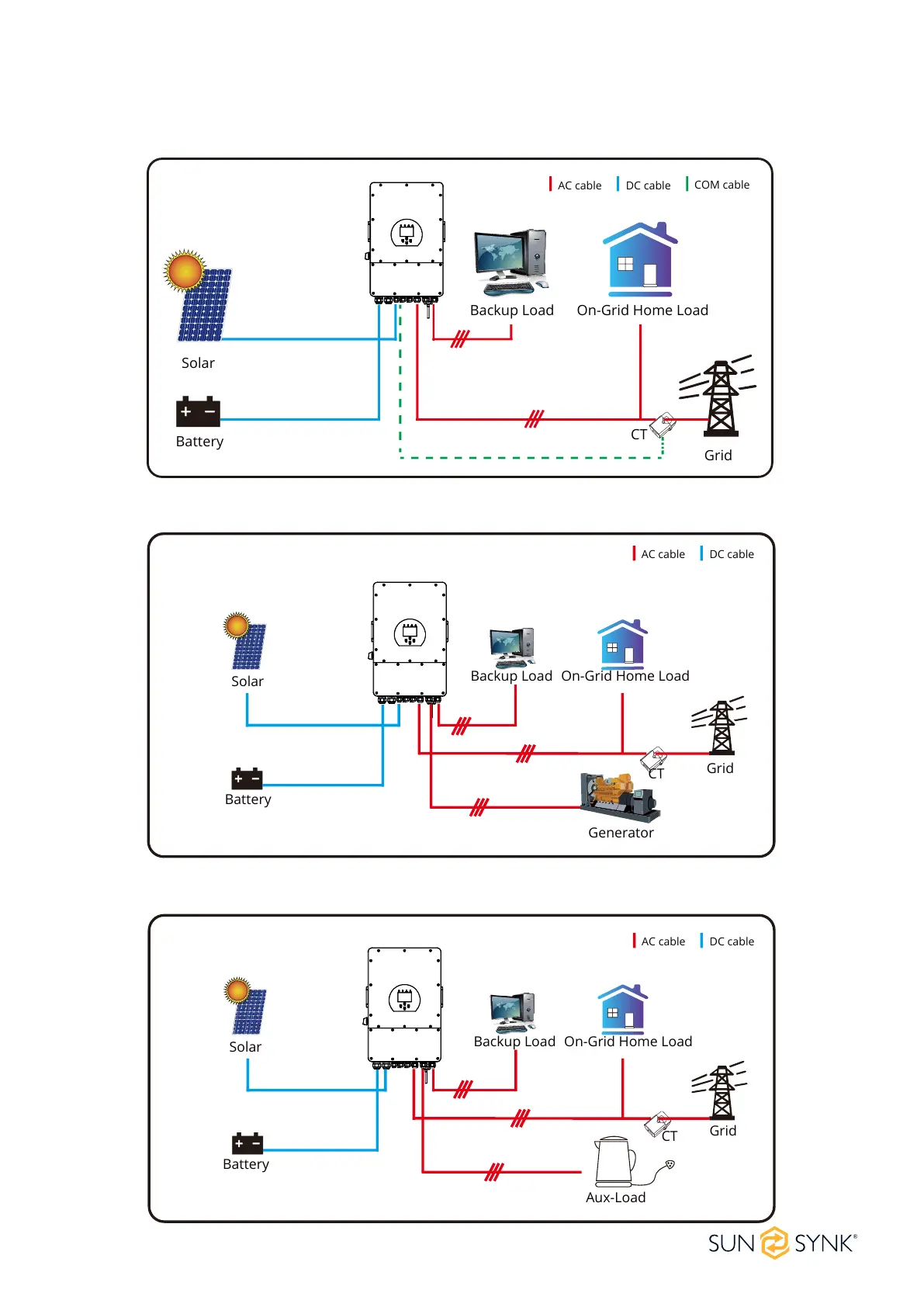

OPERATION MODES
Mode I: Basic
Mode II: With Generator
Grid
Backup Load On-Grid Home Load
CT
Battery
Solar
AC cable DC cable
COM cable
Grid
Backup Load On-Grid Home Load
Battery
Solar
CT
AC cable DC cable
Generator
Mode III: With Aux-Load
Grid
Backup Load On-Grid Home Load
Battery
Solar
CT
AC cable DC cable
Aux-Load
