SunSynk SYNK-8K-SG04LP3 - Typical Application of Diesel Generator

THREE PHASE HI 8~12kW | Installer Manual29

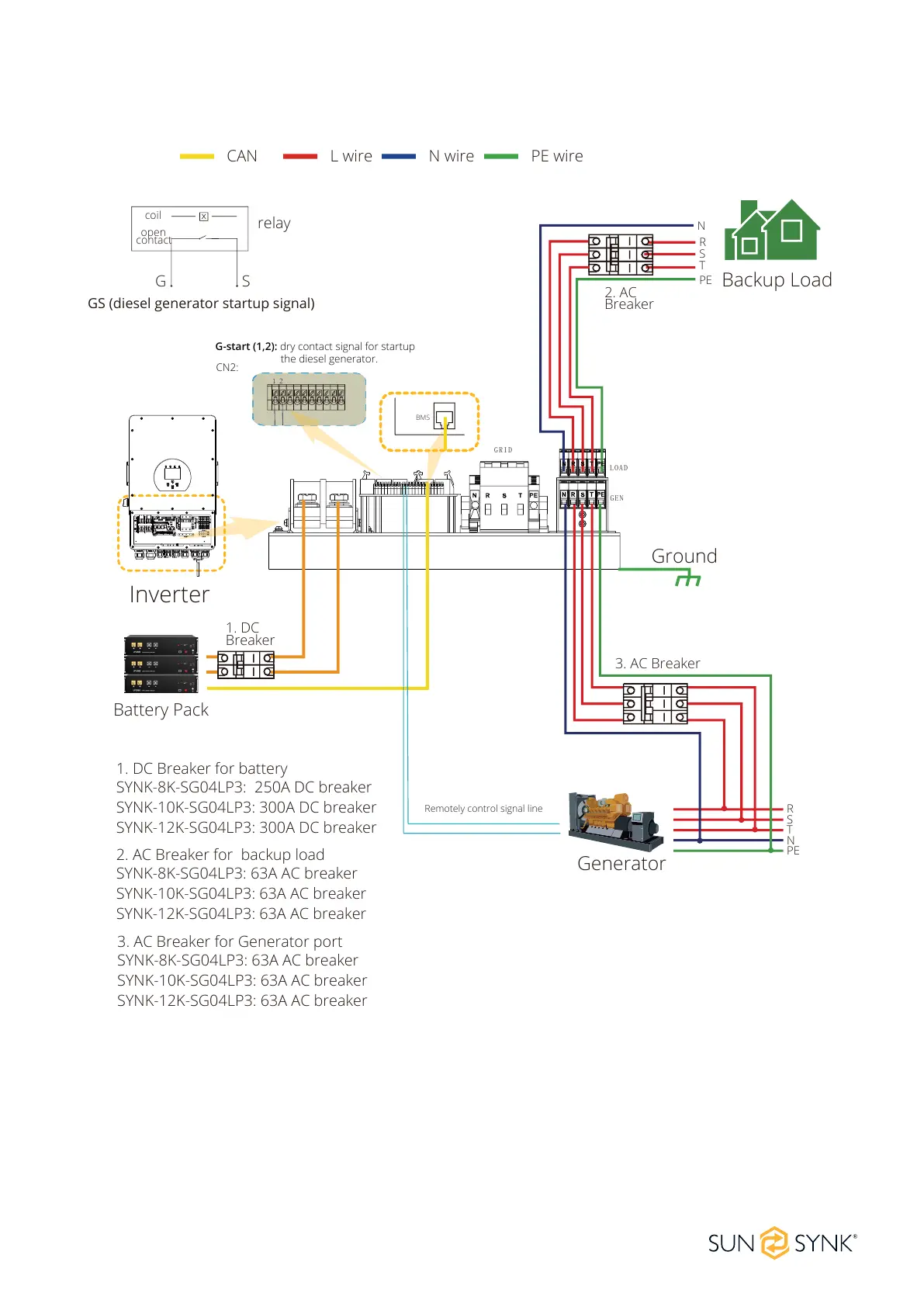

Typical Application of Diesel Generator
L wireCAN N wire PE wire
G E N
L O A D
G R I D
BMS
Ground
1. DC
Breaker
Battery Pack
Backup Load
T
S
R
N
PE
Generator
1 2
GS (diesel generator startup signal)
relay
coil
open
contact
G S
G-start (1,2): dry contact signal for startup
the diesel generator.
Remotely control signal line
SYNK-10K-SG04LP3: 300A DC breaker
SYNK-12K-SG04LP3: 300A DC breaker
SYNK-8K-SG04LP3: 250A DC breaker
1. DC Breaker for battery
SYNK-10K-SG04LP3: 63A AC breaker
SYNK-8K-SG04LP3: 63A AC breaker
SYNK-12K-SG04LP3: 63A AC breaker
2. AC Breaker for backup load
SYNK-10K-SG04LP3: 63A AC breaker
SYNK-12K-SG04LP3: 63A AC breaker
SYNK-8K-SG04LP3: 63A AC breaker
3. AC Breaker for Generator port
Inverter
3. AC Breaker
2. AC
Breaker
T
S
R
N
PE
CN2:
