SunSynk SYNK-8K-SG04LP3 - Page 28

THREE PHASE HI 8~12kW | Installer Manual28

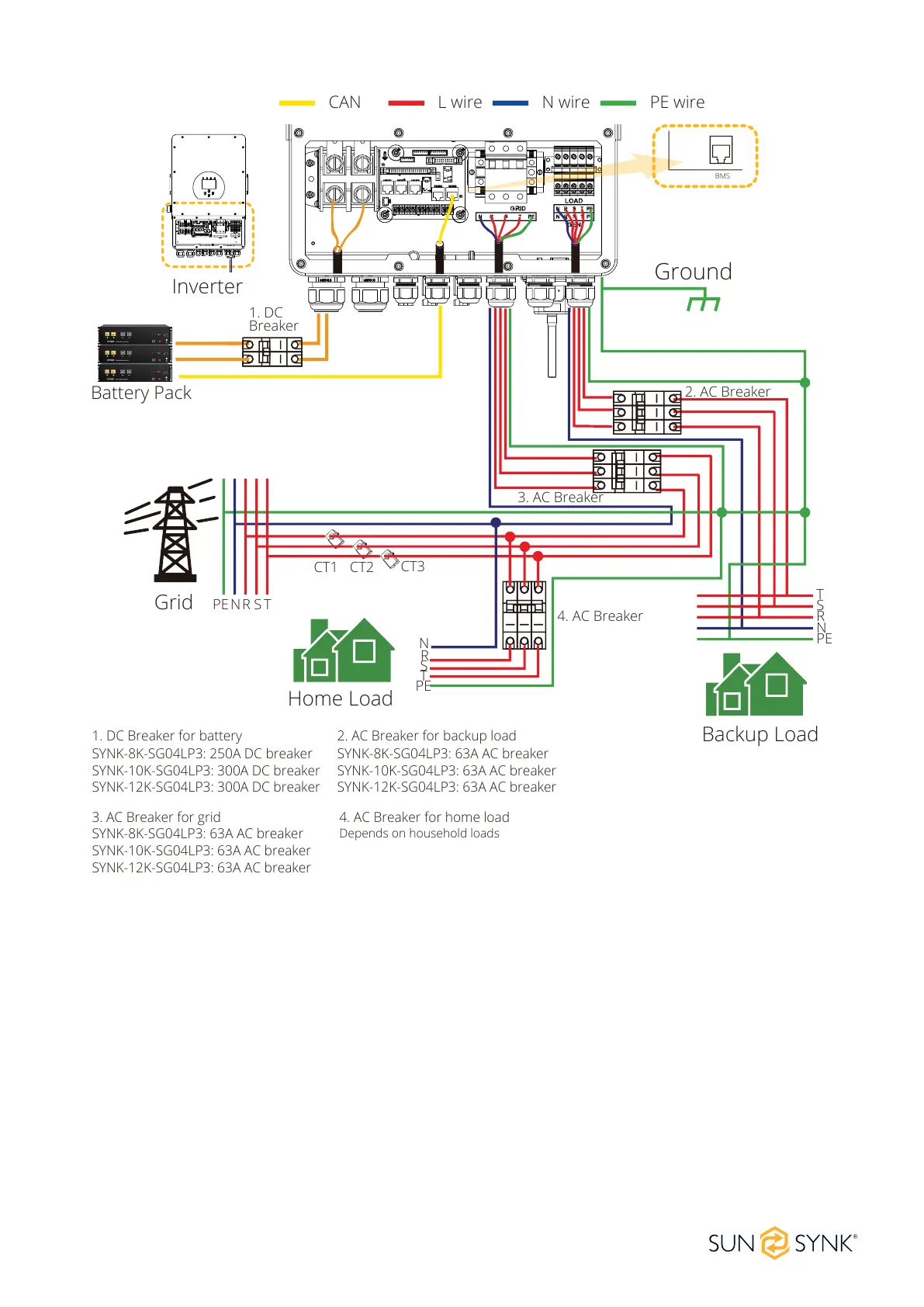

L wireCAN N wire PE wire
BMS
Grid
CT1 CT2
CT3
Backup Load
Ground
Inverter
1. DC
Breaker
2. AC Breaker
3. AC Breaker
4. AC Breaker
Battery Pack
Home Load
R
R
S
S
T
T
N
N
PE
PE
R
S
T
N
PE
1. DC Breaker for battery
SYNK-8K-SG04LP3: 250A DC breaker
SYNK-10K-SG04LP3: 300A DC breaker
SYNK-12K-SG04LP3: 300A DC breaker
2. AC Breaker for backup load
SYNK-8K-SG04LP3: 63A AC breaker
SYNK-10K-SG04LP3: 63A AC breaker
SYNK-12K-SG04LP3: 63A AC breaker
3. AC Breaker for grid
SYNK-8K-SG04LP3: 63A AC breaker
SYNK-10K-SG04LP3: 63A AC breaker
SYNK-12K-SG04LP3: 63A AC breaker
4. AC Breaker for home load
Depends on household loads
