THREE PHASE HI 8~12kW | Installer Manual31
OPERATION
LED indicator Meaning
DC Green LED solid light PV connection normal
AC Green LED solid light Grid connection normal
Normal Green LED solid light Inverter functioning normally
Alarm Red LED solid light Fault
Function Key Description
Esc To exit the previous mode
Up Increase the value of a setting
Down Decrease the value of a setting
Enter Conrm setting change (If not pressed each time the setting will not
be saved)
Switching ON/OFF
Once the inverter has been correctly installed and the batteries have been connected, press the ON/OFF
button (located on the left side of the case) to activate the system. When the system is connected without a
battery but connected with either PV or grid and the ON/OFF button is switched o, the LCD will still illumi-
nate (display will show o). In this condition, when switching on the ON/OFF button and selecting ‘No Battery’,
the system can still work.

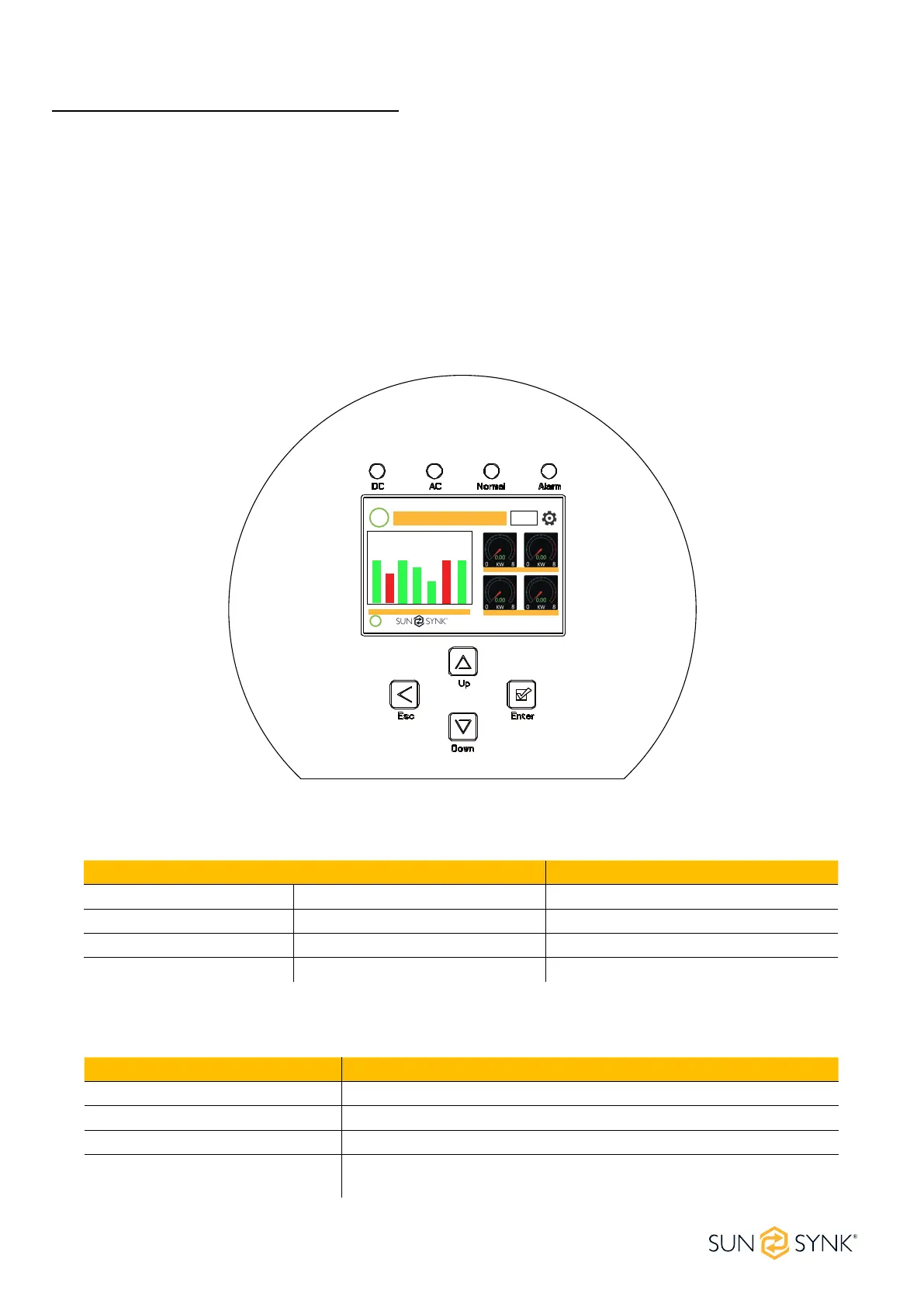

Display
LED Indicators
Function Buttons
8.8
kWh



      
8.8
kWh
5.6
kWh
7.5
kWh
2.20
Hours
8.8
kWh
85%
Battery IN/OUT MPPT. GRID

  
Solar/Turbine AC load
Battery Grid
